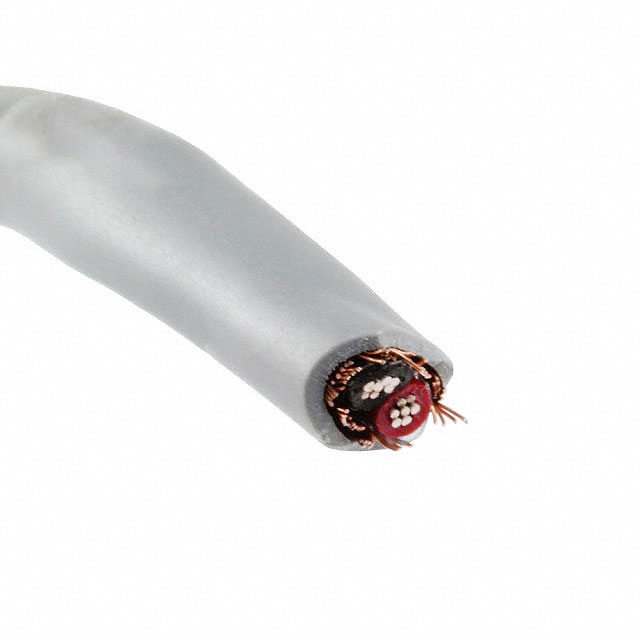

80103 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, ECOFLEX® PUR, SHIELDED, 2 CONDUCTOR, 26 AWG, 0.154 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Length [x] | Length [x] | Voltage | Conductor Insulation | Jacket (Insulation) Material | Jacket Color | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Number of Conductors | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | 100 ft | 30.5 m | 600 V | Polyphenylene Ether (PPE) | Polyurethane (PU) | Slate | 26 AWG | Copper Tinned | 0.0319 in | 0.81 mm | 4.52 mm | 0.178 in | 90 °C | -50 °C | 19 | 38 | Braid | 2 | Multi-Conductor |
