051163 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT HSG 6POS 2.50MM
| Part | Features | Number of Rows | Number of Positions | Fastening Type | Color | Pitch [x] | Pitch [x] | Note | Mounting Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Termination | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Glow Wire Compliant | 1 | 6 | Latch Lock | Red | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |

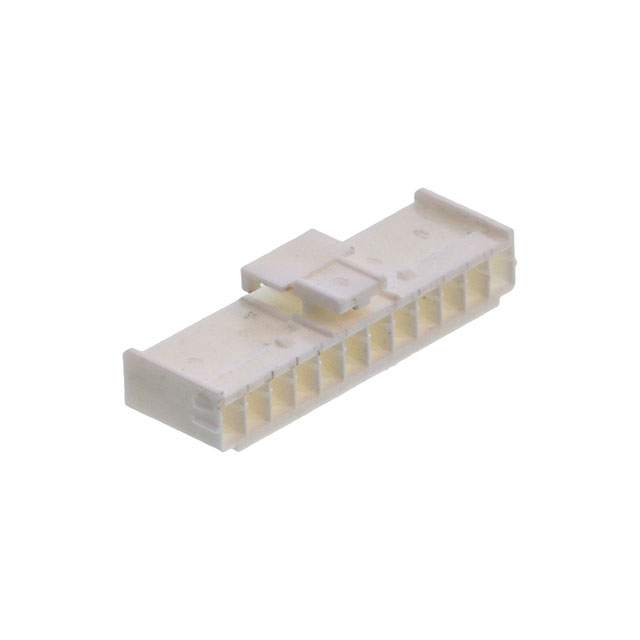

 Molex | Glow Wire Compliant | 1 | 12 | Latch Lock | Natural | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |

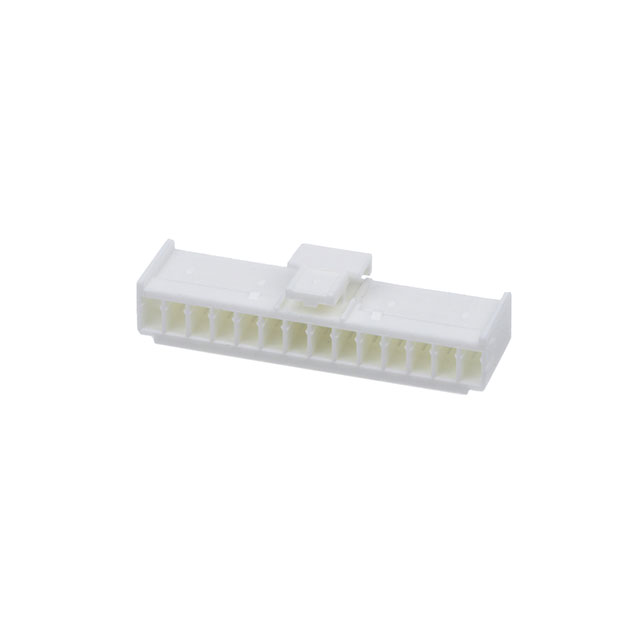

 Molex | Glow Wire Compliant | 1 | 14 | Latch Lock | Natural | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |
Molex | Glow Wire Compliant | 1 | 4 | Latch Lock | Red | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |
Molex | Glow Wire Compliant | 1 | 6 | Latch Lock | Green | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |

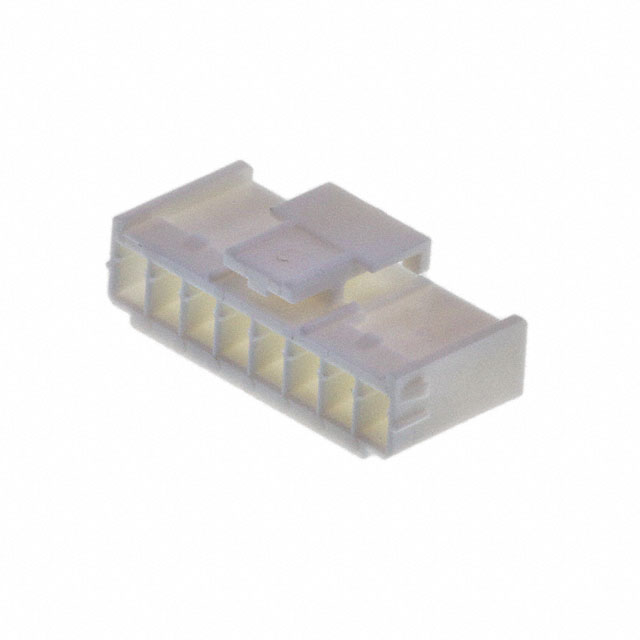

 Molex | Glow Wire Compliant | 1 | 8 | Latch Lock | Natural | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |
Molex | Glow Wire Compliant | 1 | 4 | Latch Lock | Violet | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |
Molex | Glow Wire Compliant | 1 | 4 | Latch Lock | Yellow | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |
Molex | Glow Wire Compliant | 1 | 13 | Latch Lock | Natural | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |
Molex | Glow Wire Compliant | 1 | 15 | Latch Lock | Natural | 0.098 in | 2.5 mm | Contacts Not Included | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | -40 °C | 105 ░C | Female Socket | Crimp | Receptacle |
