SWH24 Series

Manufacturer: CUI Inc.

Catalog

Catalog

AC/DC WALL MOUNT ADAPTER 11V 24W

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Form	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Efficiency	Approval Agency	Cord Length	Cord Length	Applications	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Standard Number	Region Utilized	Current - Output (Max) [Max]	Input Type	Polarization	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector	Output Connector [z]	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
CUI Inc. SWH24-11-EW-P6	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	86.24 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	11 V	264 VAC	90 VAC	24 W	60335-1	Europe	2.2 A	Fixed Blade	Positive Center	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug
CUI Inc. SWH24-19-EB-P6R	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	86.17 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	19 V	264 VAC	90 VAC	28 W	60335-1	Europe	1.25 A	Fixed Blade	Positive Center	100 mW	2.5 mm 5.5 mm		Barrel Plug R/A	9.5 mm

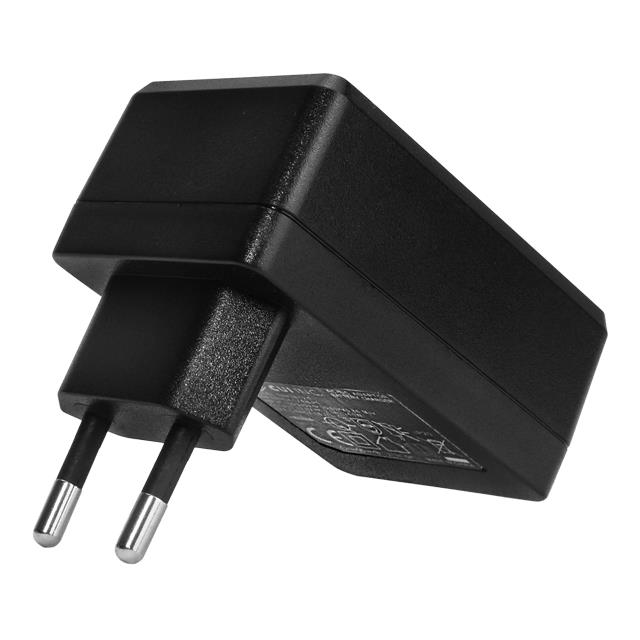

CUI Inc. SWH24-11-EB-P5R	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	86.24 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	11 V	264 VAC	90 VAC	24 W	60335-1	Europe	2.2 A	Fixed Blade	Positive Center	100 mW			Barrel Plug R/A		9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWH24-8-EW-P5R	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	85.47 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	8 V	264 VAC	90 VAC	20 W	60335-1	Europe	2.5 A	Fixed Blade	Positive Center	100 mW			Barrel Plug R/A		9.5 mm	5.5 mm	2.1 mm
CUI Inc. SWH24-15-EB-P5	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	85.96 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	15 V	264 VAC	90 VAC	23 Watts	60335-1	Europe	1.5 A	Fixed Blade	Positive Center	100 mW	2.1 mm 5.5 mm	9.5 mm	Barrel Plug
CUI Inc. SWH24-19-EW-ST	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	86.17 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	19 V	264 VAC	90 VAC	28 W	60335-1	Europe	1.25 A	Fixed Blade		100 mW			Stripped Tinned Wire Leads
CUI Inc. SWH24-36-EW-ST	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	86.11 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	36 V	264 VAC	90 VAC	23 Watts	60335-1	Europe	650 mA	Fixed Blade		100 mW			Stripped Tinned Wire Leads
CUI Inc. SWH24-8-EW-P6	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	85.47 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	8 V	264 VAC	90 VAC	20 W	60335-1	Europe	2.5 A	Fixed Blade	Positive Center	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug
CUI Inc. SWH24-28-EB-ST	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	86.17 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	28 V	264 VAC	90 VAC	24 W	60335-1	Europe	850 mA	Fixed Blade		100 mW			Stripped Tinned Wire Leads
CUI Inc. SWH24-12-EB-P5	69.5 mm	1.75 "	1.9 in	48.3 mm	44.4 mm	2.74 "	Wall Mount	40 °C	0 °C	KSC 8305	86.2 %	CE	1.83 m	72 in	Household Appliances ITE (Commercial)	12 V	264 VAC	90 VAC	24 W	60335-1	Europe	2 A	Fixed Blade	Positive Center	100 mW	2.1 mm 5.5 mm	9.5 mm	Barrel Plug
