HS2P5M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

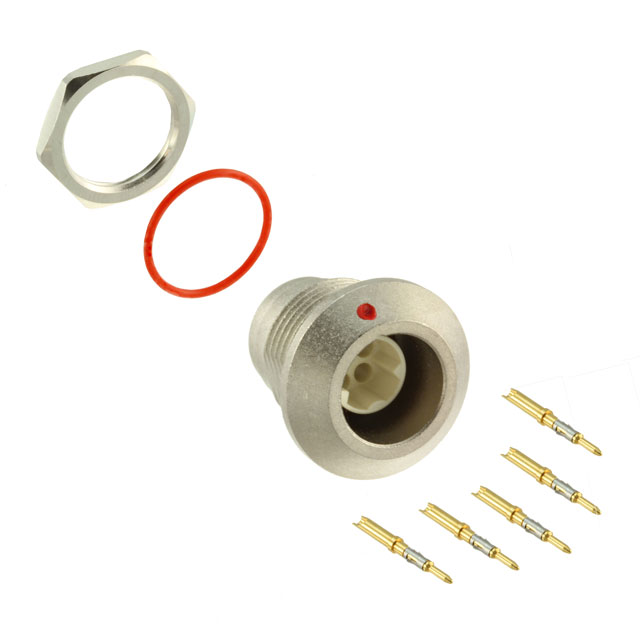

CONN RCPT MALE 5POS GOLD SOLDER
| Part | Voltage Rating | Shell Finish | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Orientation | Insert Material | Termination | Applications | Ingress Protection | Contact Material | Mounting Type | Contact Finish - Mating | Shielding | Mounting Feature | Shell Material | Primary Material | Fastening Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | 125 VAC | Electroless Nickel | Male Pins Receptacle | 135 °C | -40 °C | Silver | Keyed | Liquid Crystal Polymer (LCP) | Solder | Agriculture Audio General Medical Testing Equipment & Measurement | IP66 IP67 IP68 | Copper Alloy | Panel Mount Through Hole | Gold | Shielded | Bulkhead - Front Side Nut | Copper Alloy | Metal | Push-Pull | |
 Switchcraft Inc. | 125 VAC | Electroless Nickel | Male Pins Receptacle | 135 °C | -40 °C | Silver | Keyed | Liquid Crystal Polymer (LCP) | Crimp Solder Cup | Agriculture Audio General Medical Testing Equipment & Measurement | IP66 IP67 IP68 | Copper Alloy | Gold | Shielded | Bulkhead - Rear Side Nut | Copper Alloy | Metal | Push-Pull | UL94 HF-1 | |
Switchcraft Inc. | 125 VAC | Electroless Nickel | Male Pins Receptacle | 135 °C | -40 °C | Silver | Keyed | Liquid Crystal Polymer (LCP) | Solder | Agriculture Audio General Medical Testing Equipment & Measurement | IP66 IP67 IP68 | Copper Alloy | Panel Mount Through Hole | Gold | Shielded | Bulkhead - Front Side Nut | Copper Alloy | Metal | Push-Pull |
