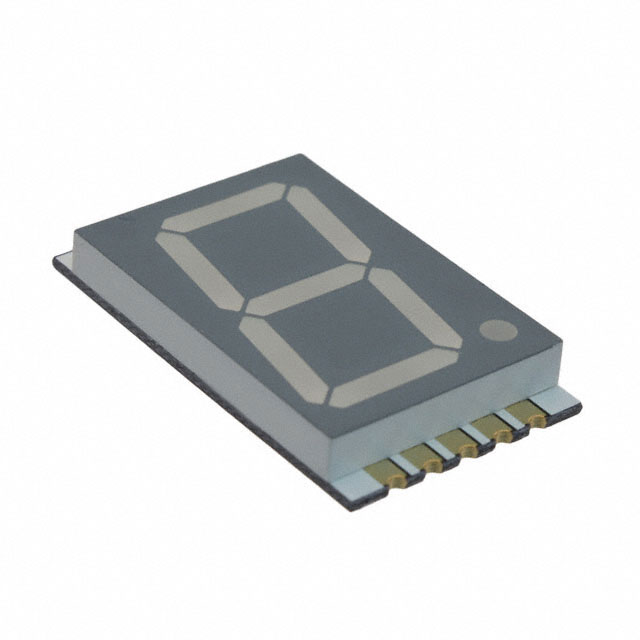

ACSA08 Series

Catalog

DISPLAY 7-SEG 0.8" SGL RED 10SMD

Part	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Number of Characters	Common Pin	Display Type	Power Dissipation (Max) [Max]	Package / Case	Color	Millicandela Rating	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Wavelength - Peak	Power Dissipation (Max)
Kingbright ACSA08-51SURKWA	20 mA	0.8 in	20.32 mm	1.95 V	1	Common Anode	7-Segment	75 mw	10-SMD No Lead	Red	47 mcd	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	650 nm
Kingbright ACSA08-51QBWA/D	20 mA	0.8 in	20.32 mm	3.3 V	1	Common Anode	7-Segment		10-SMD No Lead	Blue	12 mcd	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	468 nm	120 mW
Kingbright ACSA08-51ZGKWA	10 mA	0.8 in	20.32 mm	3 V	1	Common Anode	7-Segment		10-SMD No Lead	Green	118 mcd	0.945 "	3.75 mm	0.148 in	0.661 in	24 mm	16.8 mm	515 nm	102.5 mW
