2324582 Series

Catalog

HSG,REC,FREE-HANGING,DUALROW,EP2.5

Part	Insulation Material	Contact Termination	Note	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Color	Mounting Type	Fastening Type	Row Spacing	Row Spacing	Number of Positions

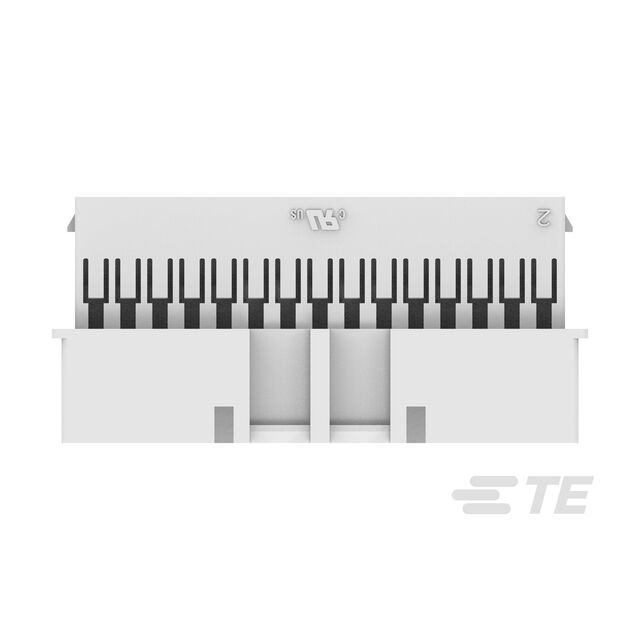

TE Connectivity Raychem Cable Protection 3-2324582-0	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	Male Pin	105 ░C	-55 °C	2	0.098 in	2.5 mm	Receptacle	Natural	Free Hanging (In-Line)	Latch Lock	0.098 in	2.5 mm	30

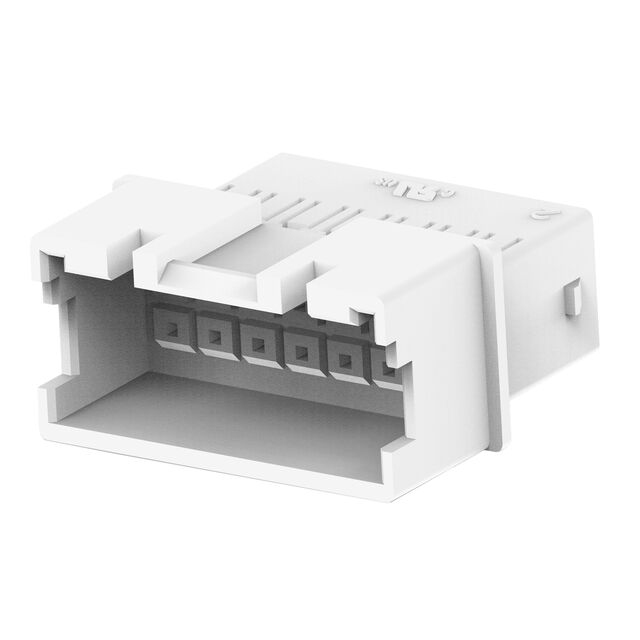

TE Connectivity Raychem Cable Protection 1-2324582-4	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	Male Pin	105 ░C	-55 °C	2	0.098 in	2.5 mm	Receptacle	Natural	Free Hanging (In-Line)	Latch Holder	0.098 in	2.5 mm	14

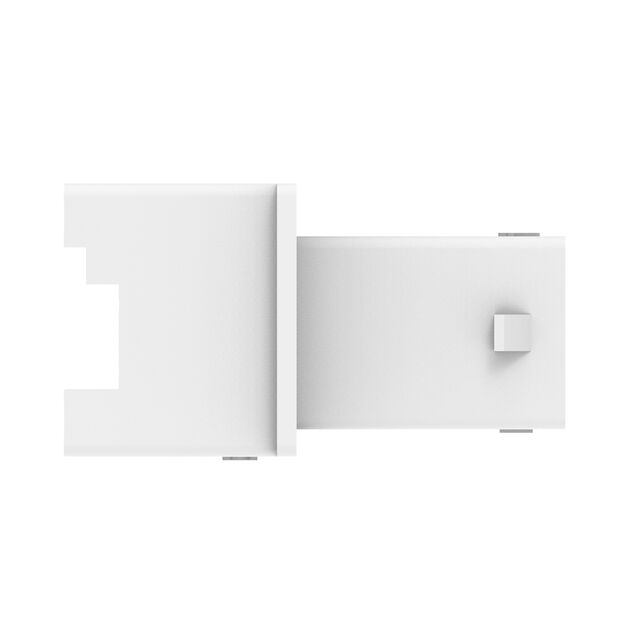

TE Connectivity Raychem Cable Protection 1-2324582-2	Polyamide (PA66) Nylon 6/6	Crimp		Male Pin	105 ░C	-55 °C	2	0.098 in	2.5 mm	Receptacle	Natural	Free Hanging (In-Line)	Latch Lock	0.098 in	2.5 mm	12

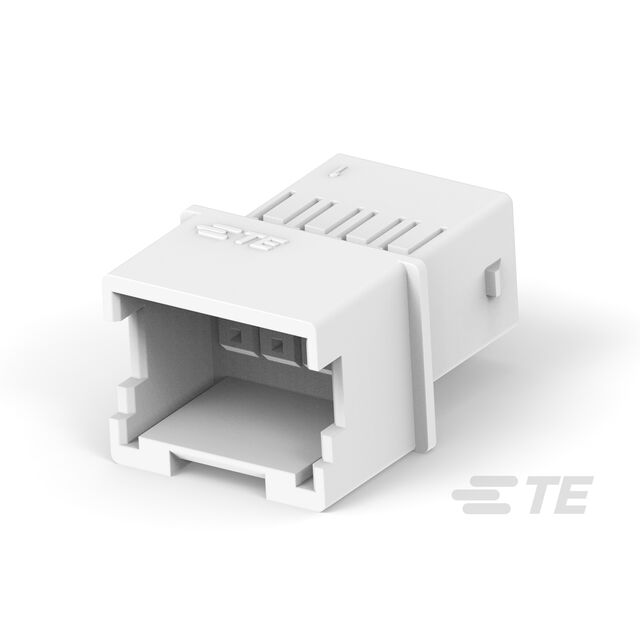

TE Connectivity Raychem Cable Protection 2324582-8	Polyamide (PA66) Nylon 6/6	Crimp	Contacts Not Included	Male Pin	105 ░C	-55 °C	2	0.098 in	2.5 mm	Receptacle	Natural	Free Hanging (In-Line)	Latch Holder	0.098 in	2.5 mm	8

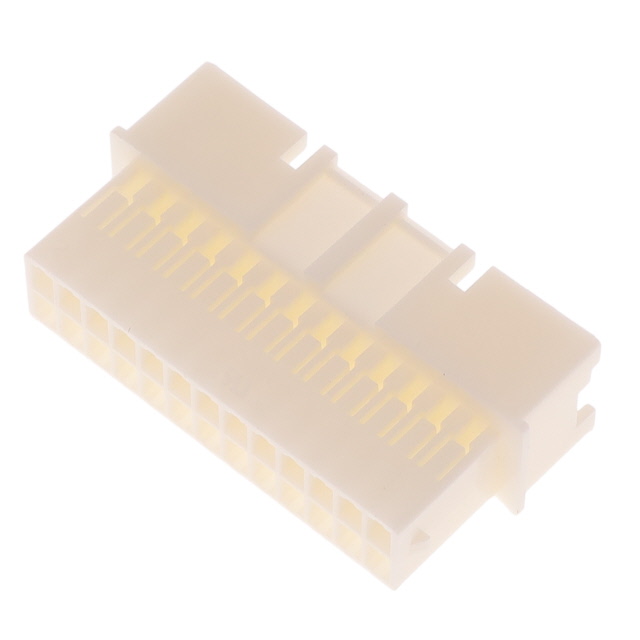

TE Connectivity Raychem Cable Protection 2-2324582-6	Polyamide (PA66) Nylon 6/6	Crimp		Male Pin	105 ░C	-55 °C	2	0.098 in	2.5 mm	Receptacle	Natural	Free Hanging (In-Line)	Latch Lock	0.098 in	2.5 mm	26
