G33KCC-P Series
Manufacturer: ODU
Beta
⌘K

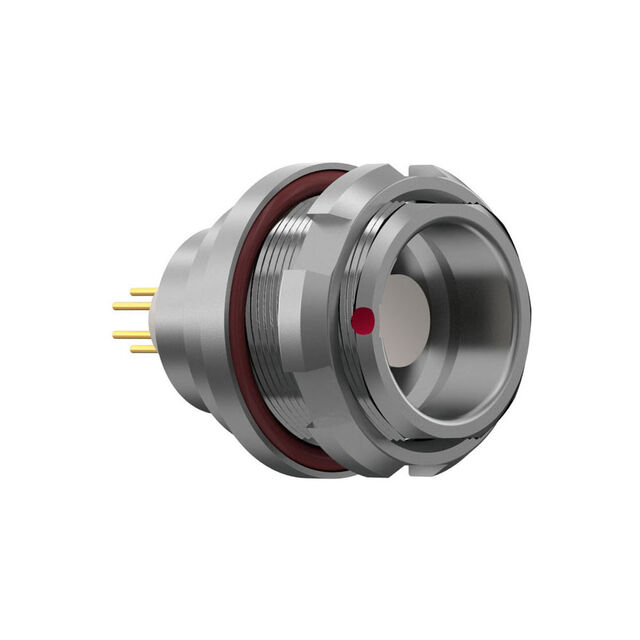

ODU MINI-SNAP RECEPT, STY 3, SZ
| Part | Voltage Rating | Features | Number of Positions | Orientation | Contact Finish - Mating | Termination | Shell Finish | Current Rating (Amps) | Connector Type | Ingress Protection | Primary Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Shell Size - Insert | Applications | Shielding | Contact Material | Fastening Type | Shell Material | Insert Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
300 VDC | Ground | 30 | C | Gold | Solder | Chrome over Nickel | 6 A | Receptacle Female Sockets | IP68 - Dust Tight Waterproof | Metal | Silver | 120 °C | -40 C | Panel Mount Through Hole | 3 TPI | Industrial Medical Military Testing Equipment & Measurement | Shielded | Brass | Push-Pull | Brass | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut | |
300 VDC | Ground | 30 | C | Gold | Chrome over Nickel | 7.5 A | Receptacle Female Sockets | IP68 - Dust Tight Waterproof | Metal | Silver | 120 °C | -40 C | Panel Mount | 3 TPI | Industrial Medical Military Testing Equipment & Measurement | Shielded | Brass | Push-Pull | Brass | Polyetheretherketone (PEEK) | Bulkhead - Front Side Nut |
