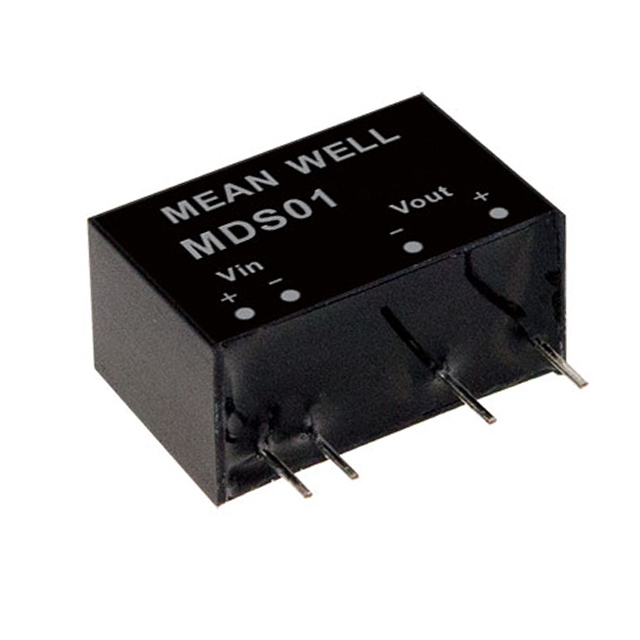

MDS01 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 12V 1W
| Part | Features | Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Outputs | Applications | Voltage - Isolation | Current - Output (Max) [Max] | Supplier Device Package | Voltage - Input (Max) [Max] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | SCP | Isolated Module | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 12 V | 10.8 V | 7-SIP Module 4 Leads | 85 °C | -40 C | Through Hole | 1 | Medical | 6000 VDC | 84 mA | 7-SIP | 13.2 V | |
MEAN WELL USA Inc. | SCP | Isolated Module | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 5 V | 21.6 V | 7-SIP Module 4 Leads | 85 °C | -40 C | Through Hole | 1 | Medical | 6000 VDC | 200 mA | 7-SIP | 26.4 V | 77 % |
MEAN WELL USA Inc. | SCP | Isolated Module | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 12 V | 4.5 V | 7-SIP Module 4 Leads | 85 °C | -40 C | Through Hole | 1 | Medical | 6000 VDC | 84 mA | 7-SIP | 5.5 V | 77 % |
MEAN WELL USA Inc. | SCP | Isolated Module | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 5 V | 4.5 V | 7-SIP Module 4 Leads | 85 °C | -40 C | Through Hole | 1 | Medical | 6000 VDC | 200 mA | 7-SIP | 5.5 V | 78 % |
MEAN WELL USA Inc. | SCP | Isolated Module | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 15 V | 10.8 V | 7-SIP Module 4 Leads | 85 °C | -40 C | Through Hole | 1 | Medical | 6000 VDC | 67 mA | 7-SIP | 13.2 V | 83 % |
MEAN WELL USA Inc. | SCP | Isolated Module | 12.5 mm | 0.49 " | 0.77 in | 0.39 in | 9.8 mm | 19.5 mm | 15 V | 21.6 V | 7-SIP Module 4 Leads | 85 °C | -40 C | Through Hole | 1 | Medical | 6000 VDC | 67 mA | 7-SIP | 26.4 V | 79 % |
