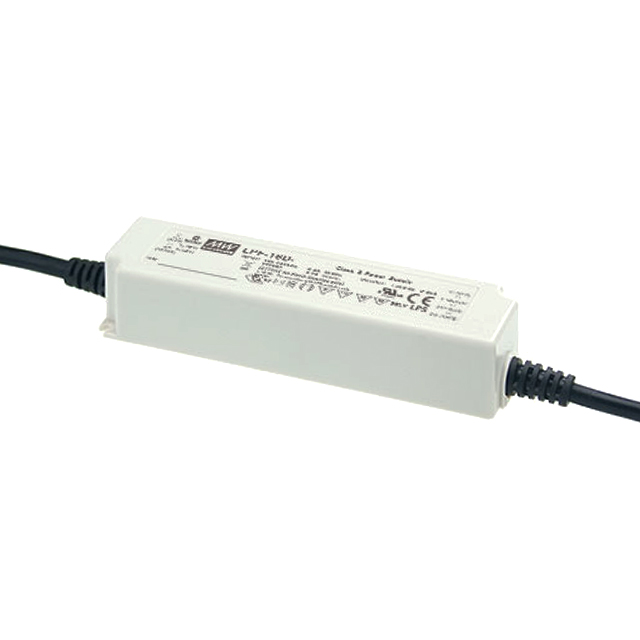

LPF-16 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRVR CC AC/DC 16.5-30V 540MA
| Part | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Features | Voltage - Output [Min] | Voltage - Output [Max] | Efficiency | Type | Approval Agency | Voltage - Isolation | Dimming | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Termination Style | Number of Outputs | Power (Watts) | Topology | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 16.5 V | 30 VDC | 84.5 % | Constant Current | CB CCC CE cURus ENEC PSE | 3750 VDC | Analog PWM | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 540 mA |
 MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 6.6 V | 12 V | 84 % | Constant Current Voltage | CB CCC CE cURus ENEC PSE | 3750 VDC | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 1.34 A | |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 11 V | 20 V | 84.5 % | Constant Current | CB CCC CE cURus ENEC PSE | 3750 VDC | Analog PWM | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 0.8 A |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 16.5 V | 30 VDC | 86 % | Constant Current Voltage | CB CCC CE cURus ENEC PSE | 3750 VDC | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 540 mA | |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 19.8 V | 36 V | 85 % | Constant Current | CB CCC CE cURus ENEC PSE | 3750 VDC | Analog PWM | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 450 mA |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 23.1 V | 42 V | 85 % | Constant Current | CB CCC CE cURus ENEC PSE | 3750 VDC | Analog PWM | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 390 mA |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 23.1 V | 42 V | 86 % | Constant Current Voltage | CB CCC CE cURus ENEC PSE | 3750 VDC | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 390 mA | |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 19.8 V | 36 V | 86 % | Constant Current Voltage | CB CCC CE cURus ENEC PSE | 3750 VDC | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 450 mA | |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 11 V | 20 V | 86 % | Constant Current Voltage | CB CCC CE cURus ENEC PSE | 3750 VDC | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 0.8 A | |
MEAN WELL USA Inc. | Chassis Mount | 305 VAC | 90 VAC | OCP OTP OVP SCP | 26.4 V | 48 V | 86 % | Constant Current Voltage | CB CCC CE cURus ENEC PSE | 3750 VDC | -35 °C | 70 °C | IP30 | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | Wire Leads | 1 | 16 W | AC DC Converter | 340 mA |
