R4 Series
Manufacturer: E-Switch
Beta
⌘K

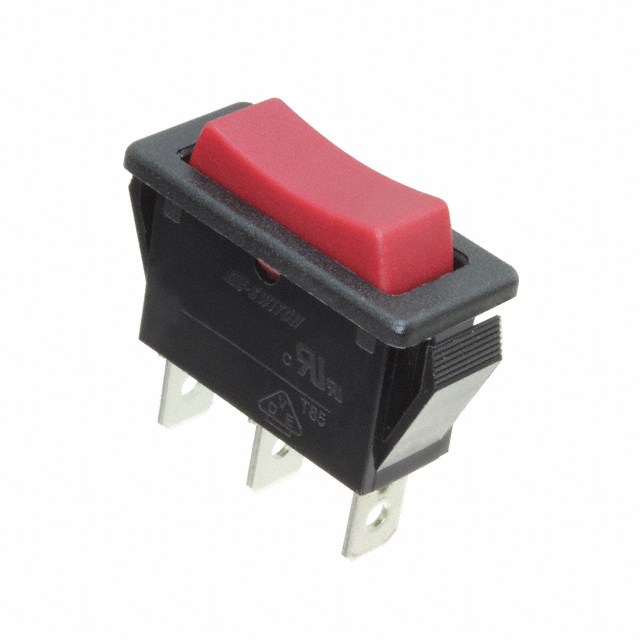

ROCKER SWITCHES ROCKER, SPDT, (ON)-OFF-(ON), PANEL MOUNT, SNAP-IN, RED
| Part | Electrical Life | Mechanical Life | Termination Style | Approval Agency | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Actuator Marking | Current Rating (Amps) | Mounting Type | Voltage Rating - AC | Circuit | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Switch Function | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | 30000 Steps | Quick Connect - 0.250" (6.3mm) | UL | Red | 55 °C | -20 ░C | Concave (Curved) | No Marking | 15 A | Panel Mount Snap-In | 125 V | SPDT | 30.1 mm | 11.1 mm | Mom-Off-Mom | ||
 E-Switch | 6000 Cycles | 30000 Steps | Quick Connect - 0.250" (6.3mm) | UL | Red | 55 °C | -20 ░C | Concave (Curved) - Illuminated | No Marking | 20 A | Panel Mount Snap-In | 125 V | SPST | 30.1 mm | 11.1 mm | On-Off | 24 V | Incandescent Red |

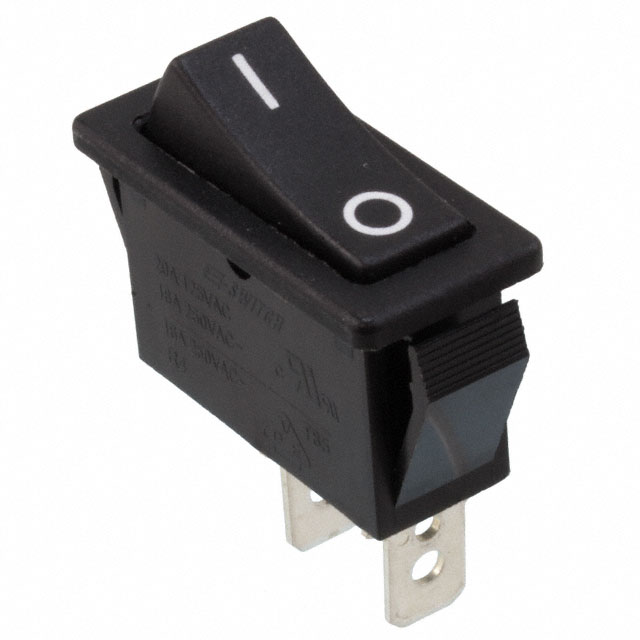

 E-Switch | 6000 Cycles | 30000 Steps | Quick Connect - 0.250" (6.3mm) | UL | Black | 55 °C | -20 ░C | Concave (Curved) | O - | 20 A | Panel Mount Snap-In | 125 V | SPST | 30.1 mm | 11.1 mm | On-Off | ||
 E-Switch | Quick Connect - 0.250" (6.3mm) | UL | Black | 55 °C | -20 ░C | Concave (Curved) | Dot | 20 A | Panel Mount Snap-In | 125 V | SPDT | 30.1 mm | 11.1 mm | On-On | ||||
 E-Switch | 6000 Cycles | 30000 Steps | Quick Connect - 0.250" (6.3mm) | UL | Red | 55 °C | -20 ░C | Concave (Curved) | Triangular Arrows with O | 15 A | Panel Mount Snap-In | 125 V | SPDT | 30.1 mm | 11.1 mm | Mom-Off-Mom | ||
 E-Switch | Quick Connect - 0.250" (6.3mm) | UL | Black | 55 °C | -20 ░C | Concave (Curved) - Illuminated | No Marking | 20 A | Panel Mount Snap-In | 125 V | SPST | 30.1 mm | 11.1 mm | On-Off | 24 V | Green Incandescent | ||
E-Switch | 6000 Cycles | 30000 Steps | Quick Connect - 0.250" (6.3mm) | UL | Green | 55 °C | -20 ░C | Concave (Curved) - Illuminated | O - | 20 A | Panel Mount Snap-In | 125 V | SPST | 30.1 mm | 11.1 mm | On-Off | 12 VDC | Green Incandescent |
E-Switch | Quick Connect - 0.250" (6.3mm) | UL | Black | 55 °C | -20 ░C | Concave (Curved) - Illuminated | No Marking | 20 A | Panel Mount Snap-In | 125 V | SPST | 30.1 mm | 11.1 mm | On-Off | 125 VAC | Neon Red | ||
 E-Switch | 6000 Cycles | 30000 Steps | Quick Connect - 0.250" (6.3mm) | UL | Red | 55 °C | -20 ░C | Concave (Curved) | No Marking | 15 A | Panel Mount Snap-In | 125 V | SPDT | 30.1 mm | 11.1 mm | On-Off-Mom | ||
E-Switch | 6000 Cycles | 30000 Steps | Quick Connect - 0.250" (6.3mm) | UL | Black | 55 °C | -20 ░C | Concave (Curved) - Illuminated | No Marking | 20 A | Panel Mount Snap-In | 125 V | SPST | 30.1 mm | 11.1 mm | On-Off | 12 VDC | Incandescent Yellow |
