MS3116F22 Series

Catalog

CONN PLUG 41POS STRAIGHT W/SCKT

Part	Voltage Rating	Voltage Rating	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Current Rating (Amps)	Mounting Type	Shell Material	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Orientation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Fastening Type	Shell Finish	Number of Positions	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]
ITT Cannon, LLC MS3116F22-41S	600 VAC	850 VDC	Environment Resistant	50 µin	1.27 µm	Metal	7.5 A 13 A	Free Hanging (In-Line)	Aluminum Alloy	22	41	N (Normal)	Olive Drab	-55 C	125 °C	Strain Relief	Plug Female Sockets	Bayonet Lock	Olive Drab Cadmium	41	Gold

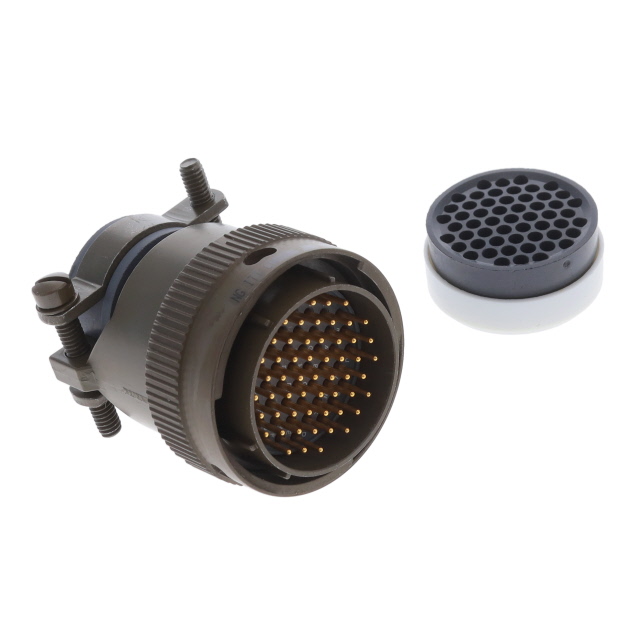

ITT Cannon, LLC MS3116F22-55P	600 VAC	850 VDC	Environment Resistant	50 µin	1.27 µm	Metal	7.5 A	Free Hanging (In-Line)	Aluminum Alloy			N (Normal)	Olive Drab	-55 C	125 °C	Strain Relief	Plug Male Pins	Bayonet Lock	Olive Drab Cadmium	55	Gold	55	22
ITT Cannon, LLC MS3116F22-41P	600 VAC	850 VDC	Environment Resistant	50 µin	1.27 µm	Metal	7.5 A 13 A	Free Hanging (In-Line)	Aluminum Alloy	22	41	N (Normal)	Olive Drab	-55 C	125 °C	Strain Relief	Plug Male Pins	Bayonet Lock	Olive Drab Cadmium	41	Gold
ITT Cannon, LLC MS3116F22-55PY	600 VAC	850 VDC	Environment Resistant	50 µin	1.27 µm	Metal	7.5 A	Free Hanging (In-Line)	Aluminum Alloy			Y	Olive Drab	-55 C	125 °C	Strain Relief	Plug Male Pins	Bayonet Lock	Olive Drab Cadmium	55	Gold	55	22
