ESDM1053 Series

5.5 V Bidirectional micro−packaged ESD Protection Diode

Catalog

5.5 V Bidirectional micro−packaged ESD Protection Diode

Part	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Mounting Type	Package / Case	Package / Case	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Bidirectional Channels [custom]	Applications	Power Line Protection	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type

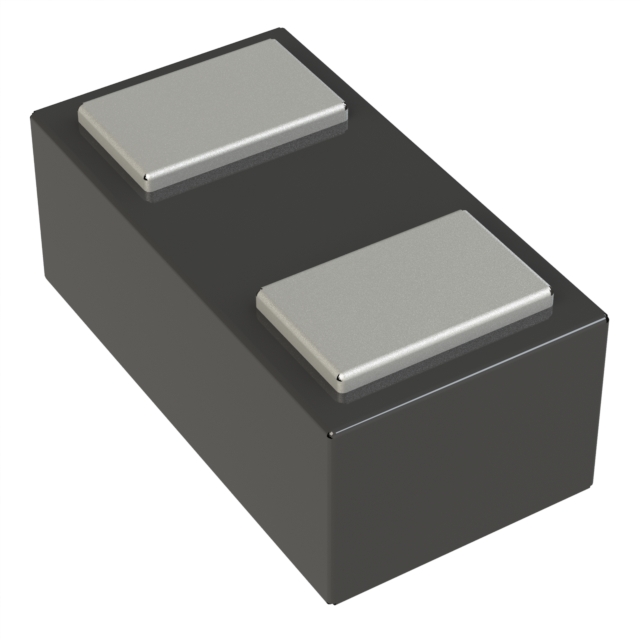

ON Semiconductor ESDM1053FCT5G	2-DSN	0.23	0.44	Surface Mount	01005	0402 Metric	5.5 pF	5.5 V	1	General Purpose		5 A	8.5 V	5.8 V	125 ¯C	-55 °C	Zener

Catalog

5.5 V Bidirectional micro−packaged ESD Protection Diode

Key Features

• Low Capacitance (5.5 pF Typ, I/O to GND)

• Small Body Outline Dimensions♦ 01005 Size: 0.435 x 0.23 x 0.18 mm

• Protection for the Following IEC Standards:IEC 61000−4−2 (Level 4)

• Low ESD Clamping Voltage

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant

Description

The ESDM1053 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in smartphone, smartwatch, headphones, tablets and many other portable / wearable applications where board space comes at a premium.
