R4FBLKBL Series
Manufacturer: E-Switch
Beta
⌘K

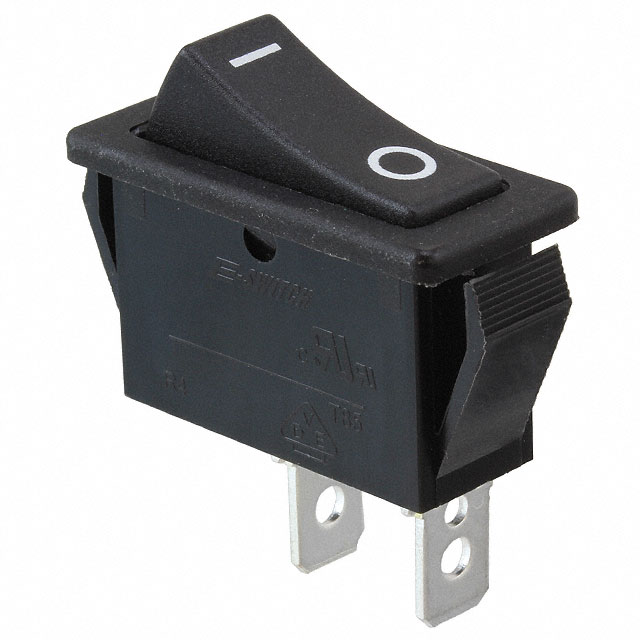

SWITCH ROCKER SPST-NO 20A 125V
| Part | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Approval Agency | Switch Function | Mounting Type | Actuator Marking | Actuator Type | Circuit | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6000 Cycles | 30000 Steps | 55 °C | -20 ░C | 125 V | Quick Connect - 0.250" (6.3mm) | 20 A | 30.1 mm | 11.1 mm | UL | Off-Mom | Panel Mount Snap-In | O I | Concave (Curved) | SPST-NO | Black |
 E-Switch | 6000 Cycles | 30000 Steps | 55 °C | -20 ░C | 125 V | Quick Connect - 0.250" (6.3mm) | 20 A | 30.1 mm | 11.1 mm | UL | Off-Mom | Panel Mount Snap-In | No Marking | Concave (Curved) | SPST-NO | Black |
