29122 Series
Manufacturer: Phoenix Contact
Beta
⌘K

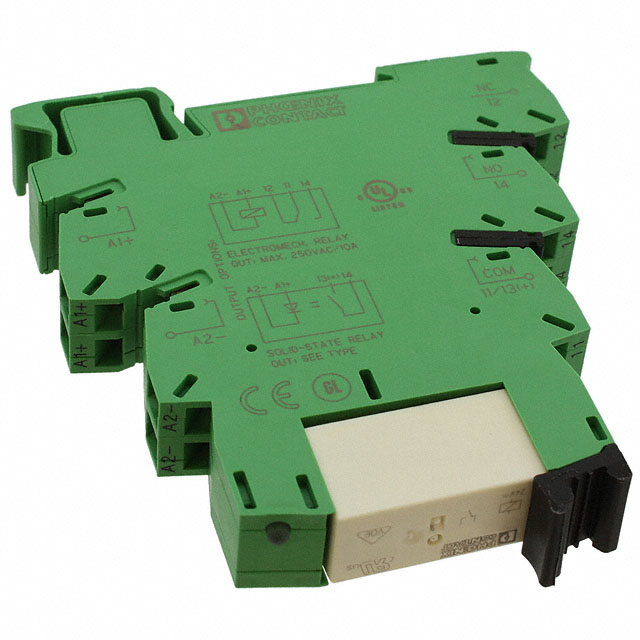

INDUSTRIAL RELAYS PLC-RSP- 12DC/21HC 12VDC 14MM
| Part | Coil Resistance | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Contact Material | Operate Time | Switching Voltage | Coil Current | Mounting Type | Contact Rating (Current) | Coil Voltage | Contact Form | Coil Type | Relay Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 364 Ohms | Spring Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 8 ms | 250 VAC 250 VDC | 33 mA | DIN Rail | 10 A | 12 VDC | SPDT (1 Form C) | Non Latching | General Purpose | Diode Lighted Indicator |
Phoenix Contact | 2.4 kOhms | Spring Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 8 ms | 250 VAC 250 VDC | 0.02 A | DIN Rail | 10 A | 48 VDC | SPDT (1 Form C) | Non Latching | General Purpose | Lighted Indicator Socket Included |
Phoenix Contact | 1.37 kOhms | Spring Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 8 ms | 250 VAC 250 VDC | 17.5 mA | DIN Rail | 10 A | 24 VAC | SPDT (1 Form C) | Non Latching | General Purpose | Lighted Indicator |
 Phoenix Contact | 1.33 kOhms | Spring Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 8 ms | 250 VAC 250 VDC | 18 mA | DIN Rail | 10 A | 24 VDC | SPDT (1 Form C) | Non Latching | General Purpose | Lighted Indicator Socket Included |
