UWS-5 Series

Catalog

DC DC CONVERTER 5V 50W

Part	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Mounting Type	Applications	Voltage - Isolation	Power (Watts)	Features	Number of Outputs	Control Features	Efficiency

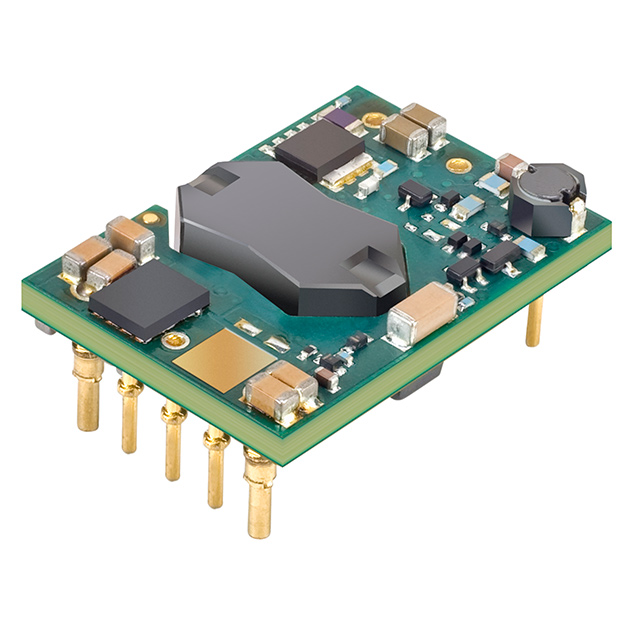

Murata Electronics UWS-5/10-Q48PH-C	10 A	5 V	75 V	8-DIP Module 1/16 Brick	85 °C	-40 C	Isolated Module	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	18 V	Through Hole	ITE (Commercial)	2250 VDC	50 W	Remote On/Off UVLO	1	Active High Enable	91 %
Murata Electronics UWS-5/10-Q48NH-C	10 A	5 V	75 V	8-DIP Module 1/16 Brick	85 °C	-40 C	Isolated Module	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	18 V	Through Hole	ITE (Commercial)	2250 VDC	50 W	Remote On/Off UVLO	1	Active Low Enable	91 %

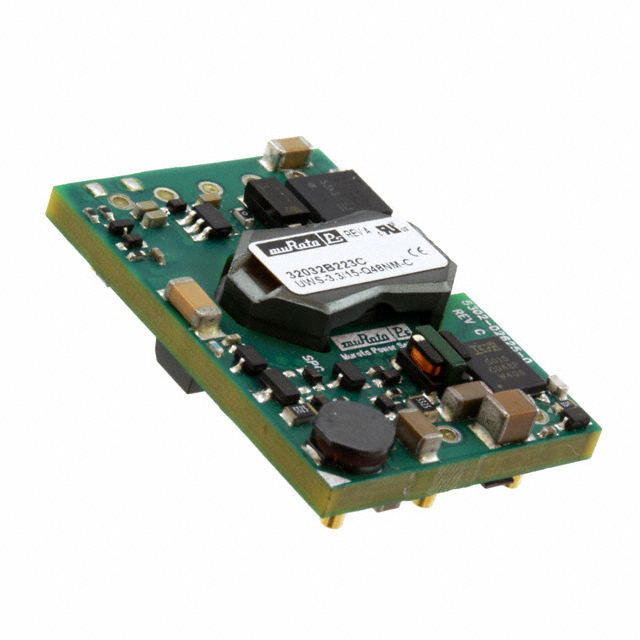

Murata Electronics UWS-5/10-Q48NM-C	10 A	5 V	75 V	8-SMD Module 1/16 Brick	85 °C	-40 C	Isolated Module	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	18 V	Surface Mount	ITE (Commercial)	2250 VDC	50 W	Remote On/Off UVLO	1	Active Low Enable	91 %
Murata Electronics UWS-5/10-Q48P-C	10 A	5 V	75 V	8-DIP Module 1/16 Brick	85 °C	-40 C	Isolated Module	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	18 V	Through Hole	ITE (Commercial)	2250 VDC	50 W	Remote On/Off UVLO	1	Active High Enable	91 %
Murata Electronics UWS-5/10-Q48N-C	10 A	5 V	75 V	8-DIP Module 1/16 Brick	85 °C	-40 C	Isolated Module	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	18 V	Through Hole	ITE (Commercial)	2250 VDC	50 W	Remote On/Off UVLO	1	Active Low Enable	91 %
