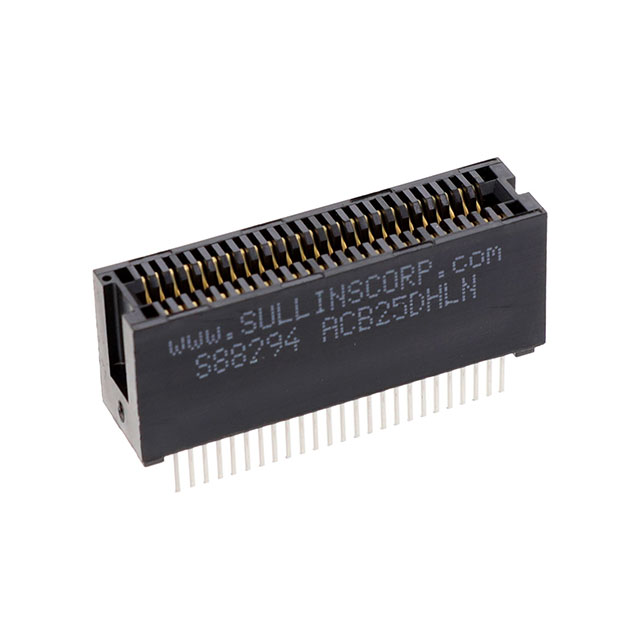

ACB25 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 50POS 0.050

Part	Material - Insulation	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Termination	Contact Finish	Color	Contact Type	Mounting Type	Card Thickness	Card Thickness	Number of Positions/Bay/Row	Features	Pitch	Pitch	Contact Material	Read Out	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions ACB25DYRN	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder	Gold	Black	Cantilever	Board Edge Straddle Mount	1.57 mm	0.062 in	25	Card Extender	0.05 in	1.27 mm	Beryllium Copper	Dual	Female
Sullins Connector Solutions ACB25DYFN	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder	Gold	Black	Cantilever	Surface Mount	1.57 mm	0.062 in	25		0.05 in	1.27 mm	Beryllium Copper	Dual	Female
Sullins Connector Solutions ACB25DHRD	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder	Gold	Black	Hairpin Bellows	Board Edge Straddle Mount	1.57 mm	0.062 in	25	Card Extender	0.05 in	1.27 mm	Beryllium Copper	Dual	Female	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB25DHNT	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder	Gold	Black	Hairpin Bellows	Through Hole	1.57 mm	0.062 in	25		0.05 in	1.27 mm	Beryllium Copper	Dual	Female	4-40 Flush Mount Threaded Insert Top Opening
Sullins Connector Solutions ACB25DHHN	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder Staggered	Gold	Black	Hairpin Bellows	Through Hole	1.57 mm	0.062 in	25		0.05 in	1.27 mm	Beryllium Copper	Dual	Female
Sullins Connector Solutions ACB25DYFR	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder	Gold	Black	Cantilever	Surface Mount	1.57 mm	0.062 in	25	Board Lock	0.05 in	1.27 mm	Beryllium Copper	Dual	Female
Sullins Connector Solutions ACB25DHAD	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder Staggered	Gold	Black	Hairpin Bellows	Right Angle Through Hole	1.57 mm	0.062 in	25		0.05 in	1.27 mm	Beryllium Copper	Dual	Female	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions ACB25DHBN	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder Staggered	Gold	Black	Hairpin Bellows	Right Angle Through Hole	1.57 mm	0.062 in	25		0.05 in	1.27 mm	Beryllium Copper	Dual	Female
Sullins Connector Solutions ACB25DHHN-S1100	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder Staggered	Gold		Hairpin Bellows	Through Hole					0.05 in	1.27 mm	Beryllium Copper	Dual	Female
Sullins Connector Solutions ACB25DYRN-S1355	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	50	30 Áin	0.76 Ám	150 °C	-65 ░C	2	Solder	Gold	Black	Cantilever	Board Edge Straddle Mount	1.57 mm	0.062 in	25	Card Extender	0.05 in	1.27 mm	Beryllium Copper	Dual	Female
