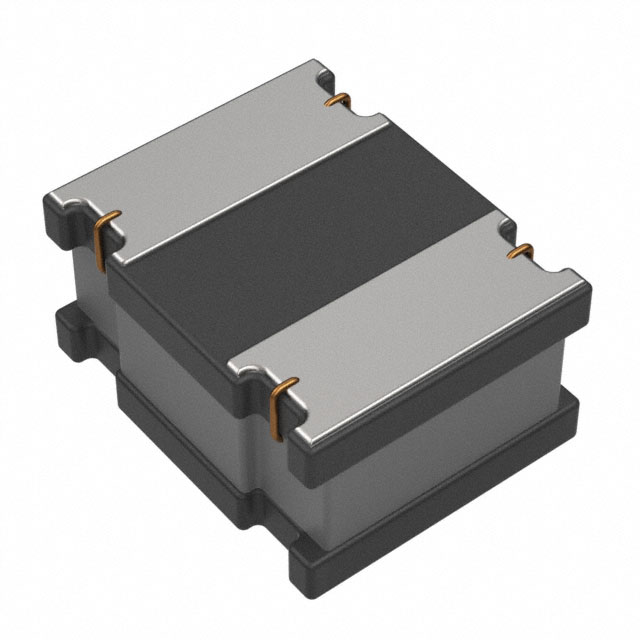

SDED20161 Series

Catalog

FIXED IND 2.2UH 1.35A 230MOHM SM

Part	Tolerance	Shielding	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Saturation (Isat)	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Current Rating (Amps)	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Delta Electronics/Cyntec SDED20161T-2R2MS	20 %	Shielded	Surface Mount	-55 C	125 °C	0806	1.31 A	0806 (2016 Metric)	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	0.039 in	1 mm	2.2 µH	1.35 A	230 mOhm
Delta Electronics/Cyntec SDED20161T-100MS	20 %	Shielded	Surface Mount	-55 C	125 °C	0806	550 mA	0806 (2016 Metric)	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	0.039 in	1 mm	10 µH	470 mA		1.119 Ohm
Delta Electronics/Cyntec SDED20161T-4R7MS	20 %	Shielded	Surface Mount	-55 C	125 °C	0806	760 mA	0806 (2016 Metric)	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	0.039 in	1 mm	4.7 ÁH	950 mA		387 mOhm
Delta Electronics/Cyntec SDED20161T-3R3MS	20 %	Shielded	Surface Mount	-55 C	125 °C	0806	950 mA	0806 (2016 Metric)	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	0.039 in	1 mm	3.3 µH	1.05 A
Delta Electronics/Cyntec SDED20161T-1R0MS	20 %	Shielded	Surface Mount	-55 C	125 °C	0806	1.8 A	0806 (2016 Metric)	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	0.039 in	1 mm	1 µH	1.7 A	107 mOhm
Delta Electronics/Cyntec SDED20161T-150MS	20 %	Shielded	Surface Mount	-55 C	125 °C	0806	450 mA	0806 (2016 Metric)	1.6 mm	0.079 in	0.063 "	2 mm	1 MHz	0.039 in	1 mm	15 µH	0.42 A	1.895 Ohm
