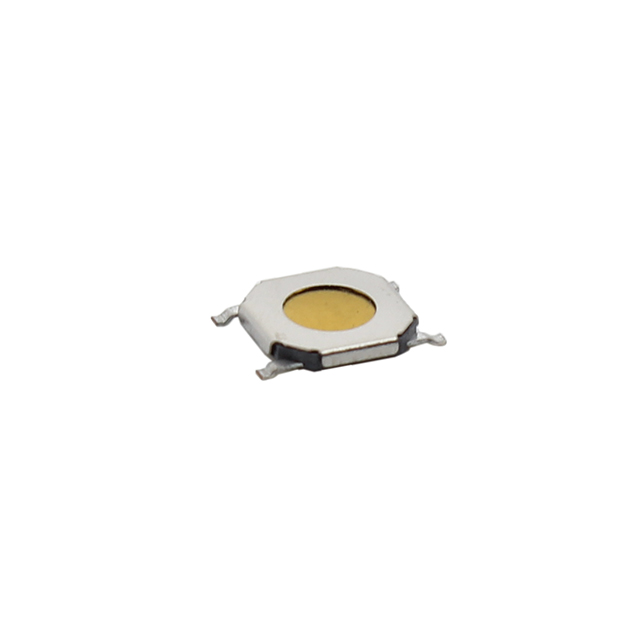

CS1214G Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Operating Force | Switch Function | Circuit | Contact Rating @ Voltage | Outline [x] | Outline [y] | Mounting Type | Actuator Height off PCB, Vertical [z] | Termination Style | Actuator Orientation | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Brass Nickel Plated | 0.25 mm | 85 °C | -40 C | Flush | 160 gf | Off-Mom | SPST-NO | 0.05 A 50 VDC | 5.2 mm | 5.2 mm | Surface Mount | 0.8 mm | Gull Wing | Top Actuated | Non-Illuminated |
