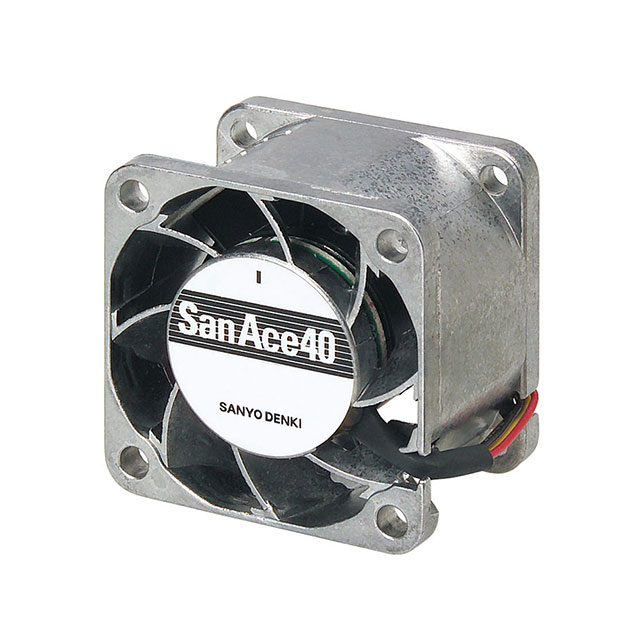

9GE0412 Series

Catalog

FAN AXIAL 40X28MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Air Flow	Air Flow	RPM	Voltage - Rated	Fan Type	Width [x]	Approval Agency	Noise	Features	Termination	Bearing Type	Weight	Weight
Sanyo Denki America Inc. 9GE0412K301	Aluminum	0.84 A	40000 Hrs	10.8 VDC	13.2 VDC	Plastic	0.122 lb	55.34 g	1.666 in H2O	415 Pa	60 °C	60 °C	-4 °F	-20 ░C	40 mm	40 mm	10.08 W	0.75 mł/min	26.8 CFM	16500 RPM	12 VDC	Tubeaxial	28 mm	CSA TUV UL	58 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	Ball
Sanyo Denki America Inc. 9GE0412J301	Aluminum	650 mA	40000 Hrs	10.8 VDC	13.2 VDC	Plastic	0.122 lb	55.34 g	1.378 in H2O	343.2 Pa	60 °C	60 °C	-4 °F	-20 ░C	40 mm	40 mm	7.8 W	0.683 m³/min	24.4 CFM	15000 RPM	12 VDC	Tubeaxial	28 mm	CSA TUV UL	56 dB	Speed Sensor (Tach)	3 Wire Leads	Ball
Sanyo Denki America Inc. 9GE0412P3G03	Aluminum	0.47 A	40000 Hrs	10.8 VDC	13.2 VDC	Plastic			1.044 in H2O	260 Pa	60 °C	60 °C	-4 °F	-20 ░C	40 mm	40 mm	5.64 W	0.594 m³/min	21.2 CFM	13000 RPM	12 VDC	Tubeaxial	28 mm	CSA TUV UL	52 dB	PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	0.121 lb	54.88 g
Sanyo Denki America Inc. 9GE0412P3J03	Aluminum	650 mA	40000 Hrs	10.8 VDC	13.2 VDC	Plastic			1.378 in H2O	343.2 Pa	60 °C	60 °C	-4 °F	-20 ░C	40 mm	40 mm	7.8 W	0.683 m³/min	24.4 CFM	15000 RPM	12 VDC	Tubeaxial	28 mm	CSA TUV UL	56 dB	PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	0.121 lb	54.88 g
Sanyo Denki America Inc. 9GE0412P3K03	Aluminum	0.84 A	40000 Hrs	10.8 VDC	13.2 VDC	Plastic			1.666 in H2O	415 Pa	60 °C	60 °C	-4 °F	-20 ░C	40 mm	40 mm	10.08 W	0.75 mł/min	26.8 CFM	16500 RPM	12 VDC	Tubeaxial	28 mm	CSA TUV UL	58 dB(A)	PWM Control Speed Sensor (Tach)	4 Wire Leads	Ball	0.121 lb	54.88 g
Sanyo Denki America Inc. 9GE0412K3D01	Aluminum	0.84 A	40000 Hrs	10.8 VDC	13.2 VDC	Plastic	0.122 lb	55.34 g	1.666 in H2O	415 Pa	60 °C	60 °C	-4 °F	-20 ░C	40 mm	40 mm	10.08 W	0.75 mł/min	26.8 CFM	16500 RPM	12 VDC	Tubeaxial	28 mm	CSA TUV UL	58 dB(A)	Locked Rotor Sensor	3 Wire Leads	Ball
