FI-S10 Series

Catalog

CONN HEADER SMD R/A 10POS 1.25MM

Part	Mounting Type	Style	Contact Type	Voltage Rating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Shrouding	Connector Type	Contact Shape	Fastening Type	Termination	Number of Rows	Contact Finish - Post	Features	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Note	Insulation Material	Pitch	Pitch	Contact Termination	Color
JAE Electronics FI-S10P-HFE-E1500	Right Angle Surface Mount	Board to Cable/Wire	Male Pin	200 V	1.8 mm	0.071 in	0.049 in	1.25 mm	Shrouded - 4 Wall	Receptacle	Square	Friction Lock	Solder	1	Tin Tin-Alloy	Solder Retention	Gold	All	Beige	UL94 V-0	1 A	10	Copper Alloy	80 °C	-40 C
JAE Electronics FI-S10P-HFE	Right Angle Surface Mount	Board to Cable/Wire	Male Pin	200 V	1.8 mm	0.071 in	0.049 in	1.25 mm	Shrouded - 4 Wall	Receptacle	Circular	Friction Lock	Solder	1	Tin Tin-Alloy	Solder Retention	Gold	All	Beige	UL94 V-0	1 A	10	Copper Alloy	80 °C	-40 C

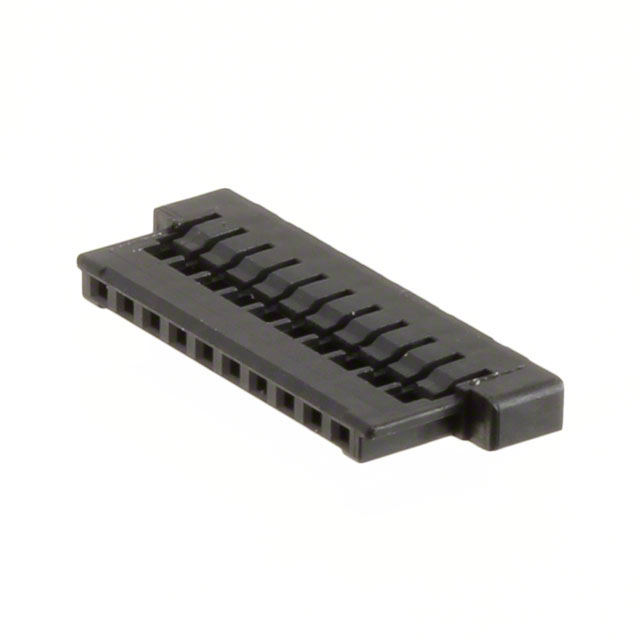

JAE Electronics FI-S10S	Free Hanging (In-Line)		Female Socket							Plug		Friction Lock		1								10				Contacts Not Included	Glass Filled Nylon 6/6 Polyamide (PA66)	0.049 in	1.25 mm	Crimp	Black
