860-012 Series
Manufacturer: NorComp Inc.
Beta
⌘K

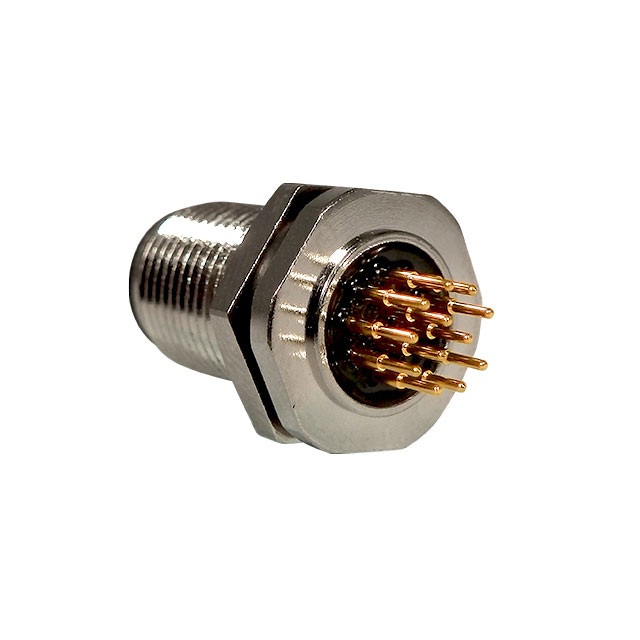

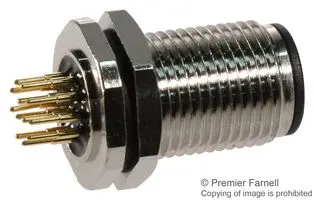

CONN RCPT MALE 12POS GOLD SOLDER
| Part | Shell Material | Cable Opening | Cable Opening | Color | Applications | Contact Material | Contact Finish Thickness - Mating | Ingress Protection | Insert Material | Current Rating (Amps) | Mounting Feature | Shielding | Orientation | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Connector Type | Mounting Type | Shell Size - Insert | Primary Material | Shell Finish | Contact Finish - Mating | Voltage Rating | Number of Positions | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | 10.64 mm | 0.419 in | Silver | Industrial Medical | Brass | Flash | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | 1.5 A | Bulkhead - Front Side Nut | Shielded | A | Threaded | 85 °C | -40 C | UL94 V-0 | Receptacle Male Pins | Panel Mount Through Hole | M12-12 | Metal | Nickel | Gold | 30 VDC | 12 | Solder | ||
 NorComp Inc. | Brass | 10.64 mm | 0.419 in | Silver | Industrial Medical | Brass | IP67 - Dust Tight Waterproof | Polybutylene Terephthalate (PBT) | 1.5 A | Bulkhead - Front Side Nut | Shielded | A | Threaded | 85 °C | -40 C | UL94 V-0 | Receptacle Male Pins | Panel Mount Through Hole | M12-12 | Metal | Nickel | Gold | 30 VDC | 12 | Solder | 0.25 µm | 10 µin |
