EZC05 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

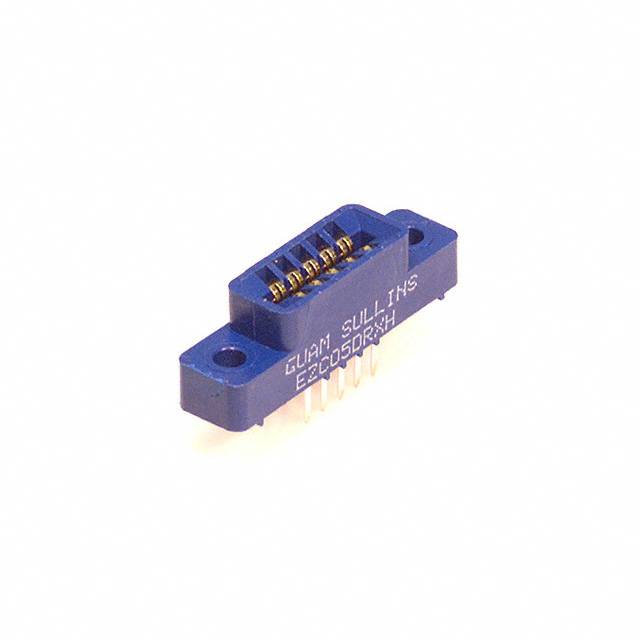

CONN EDGE DUAL FMALE 10POS 0.100
| Part | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Gender | Mounting Type | Contact Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Color | Pitch | Pitch | Card Thickness | Card Thickness | Number of Positions/Bay/Row | Contact Finish | Number of Rows [custom] | Termination | Contact Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.125 " | 3.18 mm | Female | Through Hole | Full Bellows | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Dual | Blue | 0.1 " | 2.54 mm | 1.57 mm | 0.062 in | 5 | Gold | 2 | Solder | Phosphor Bronze | 10 | -65 ░C | 125 °C |
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 0.125 " | 3.18 mm | Female | Through Hole | Full Bellows | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Dual | Blue | 0.1 " | 2.54 mm | 1.57 mm | 0.062 in | 5 | Gold | 2 | Solder | Phosphor Bronze | 10 | -65 ░C | 125 °C |
