CHB150W Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 5V 150W

Part	Applications	Voltage - Isolation	Mounting Type	Supplier Device Package	Power (Watts)	Voltage - Input (Min) [Min]	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Features	Control Features	Standard Number	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case
Cincon Electronics Co. LTD CHB150W-48S05	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	150 W	18 V	90 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	5 V	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	60950-1	CE cURus	30 A	75 V	Half Brick
Cincon Electronics Co. LTD CHB150W-24S05N	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	150 W	9 V	87 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	5 V	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	60950-1	CE cURus	30 A	36 V	Half Brick

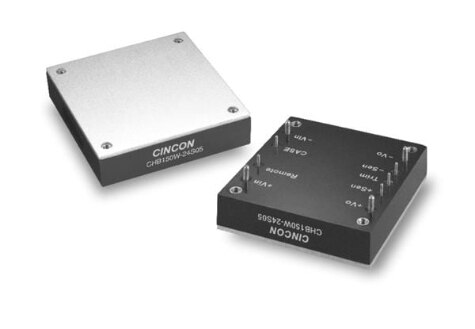

Cincon Electronics Co. LTD CHB150W-48S28	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	151 W	18 V	88 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	28 V	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	60950-1	CE cURus	5.4 A	75 V	Half Brick
Cincon Electronics Co. LTD CHB150W-24S28	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	151 W	9 V	86 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	28 V	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	60950-1	CE cURus	5.4 A	36 V	Half Brick
Cincon Electronics Co. LTD CHB150W-24S48N	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	150 W	9 V	84 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	48 V	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	60950-1	CE cURus	3.12 A	36 V	Half Brick
Cincon Electronics Co. LTD CHB150W-24S48	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	150 W	9 V	84 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	48 V	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	60950-1	CE cURus	3.12 A	36 V	Half Brick
Cincon Electronics Co. LTD CHB150W-24S28N	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	151 W	9 V	86 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	28 V	OCP OTP OVP Remote On/Off SCP UVLO	Active Low Enable	60950-1	CE cURus	5.4 A	36 V	Half Brick
Cincon Electronics Co. LTD CHB150W-24S3V3	ITE (Commercial)	1.5 kV	Through Hole	Half Brick	99 W	9 V	87 %	-40 °C	100 °C	Isolated Module	1	2.4 in	2.28 in	57.9 mm	61 mm	13.2 mm	0.52 in	3.3 V	OCP OTP OVP Remote On/Off SCP UVLO	Active High Enable	60950-1	CE cURus	30 A	36 V	Half Brick
