857 Series
Manufacturer: WAGO Corporation
Beta
⌘K
POWER RELAY, SPDT, 857 SERIES, THROUGH HOLE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Rating (Current) | Approval Agency | Relay Type | Contact Form | Operate Time | Switching Voltage [Max] | Coil Voltage | Contact Material | Termination Style | Coil Type | Release Time | Load - Max Switching | Voltage - Supply | Isolation | Type | Output Range [Max] | Output Range [Min] | Input Type | Output Type | Features | Coil Current | Coil Resistance | Must Release Voltage | Must Operate Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

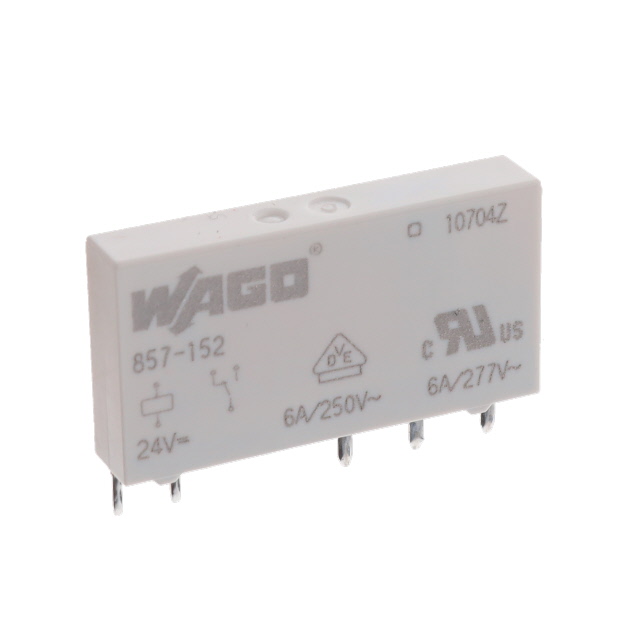

 WAGO Corporation | 85 °C | -40 C | Through Hole | 6 A | UL | General Purpose | SPDT (1 Form C) | 8 ms | 250 VAC | 24 VDC | Silver Tin Oxide (AgSnO) | PC Pin | Non Latching | 4 ms | 1500 VA | |||||||||||||

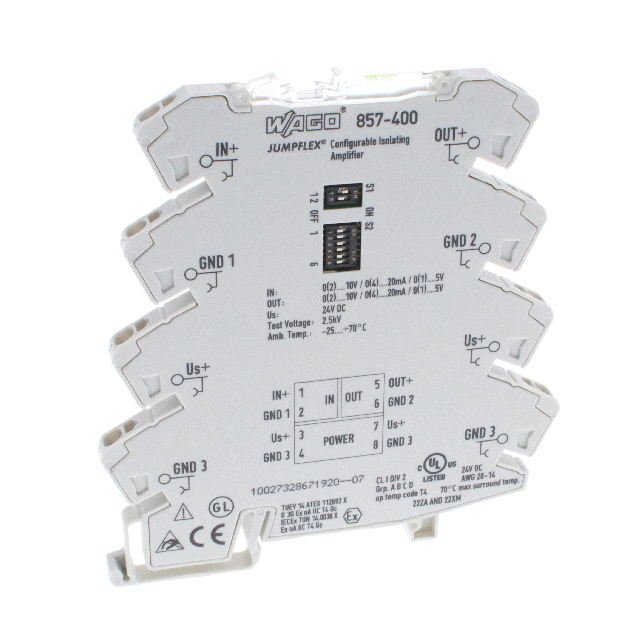

 WAGO Corporation | 70 °C | -25 °C | DIN Rail | Spring Terminal | 24 V | 2500 VDC | Isolation Amplifier | 10 VDC 20 mA | 0 mA 0 VDC | Current Voltage | Current Voltage | |||||||||||||||||

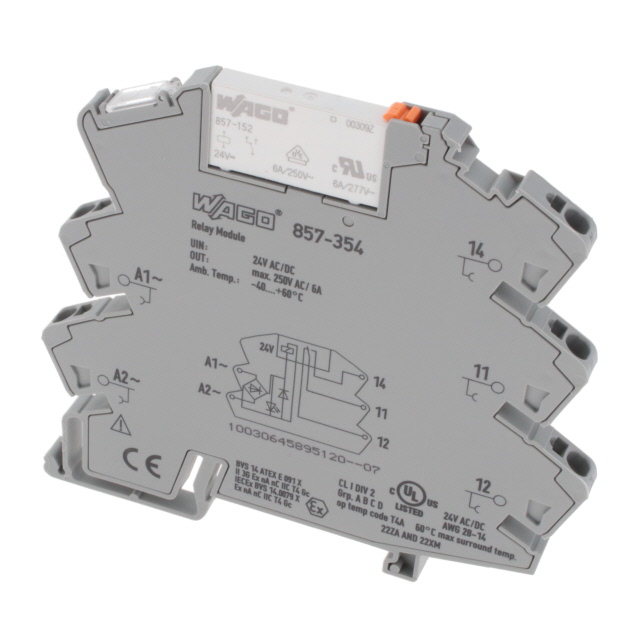

 WAGO Corporation | 60 °C | -40 C | DIN Rail | 6 A | EAC UL | General Purpose | SPDT (1 Form C) | 15 ms | 250 VAC | 24 VAC | Silver Tin Oxide (AgSnO) | Spring Terminal | Non Latching | 25 ms | 1500 VA | Lighted Indicator | 8.5 mA | |||||||||||

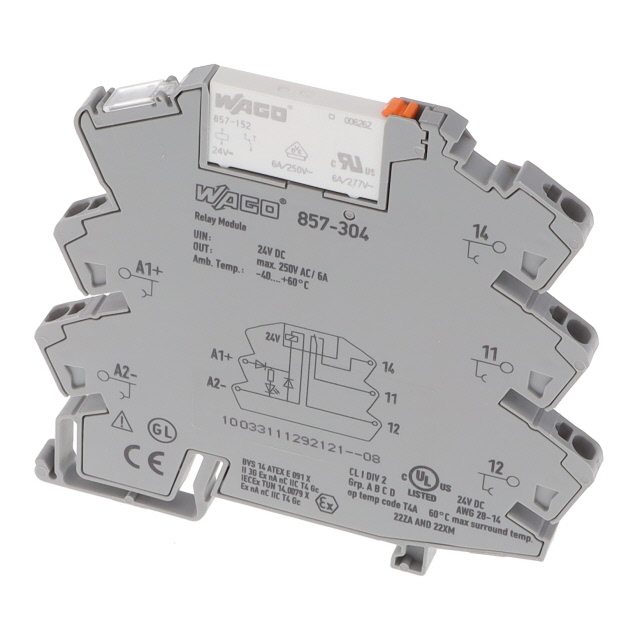

 WAGO Corporation | 60 °C | -40 C | DIN Rail | 6 A | EAC UL | General Purpose | SPDT (1 Form C) | 8 ms | 250 VAC | 24 VDC | Silver Tin Oxide (AgSnO) | Spring Terminal | Non Latching | 8 ms | 1500 VA | Lighted Indicator Socket Included | 10 mA | 2.4 kOhms | 3.6 VDC | 4.8 VDC | ||||||||

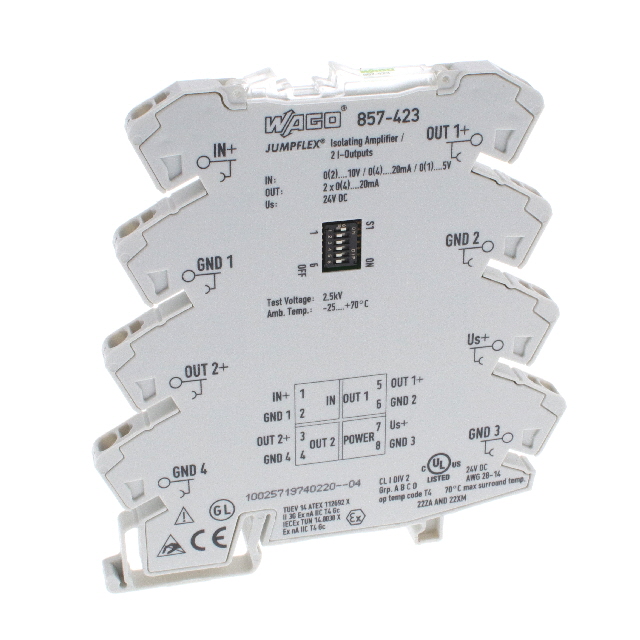

 WAGO Corporation | 70 °C | -25 °C | DIN Rail | Spring Terminal | 24 V | 2500 VDC | Isolation Amplifier | 20 mA | 0 mA | Current Voltage | Current | |||||||||||||||||

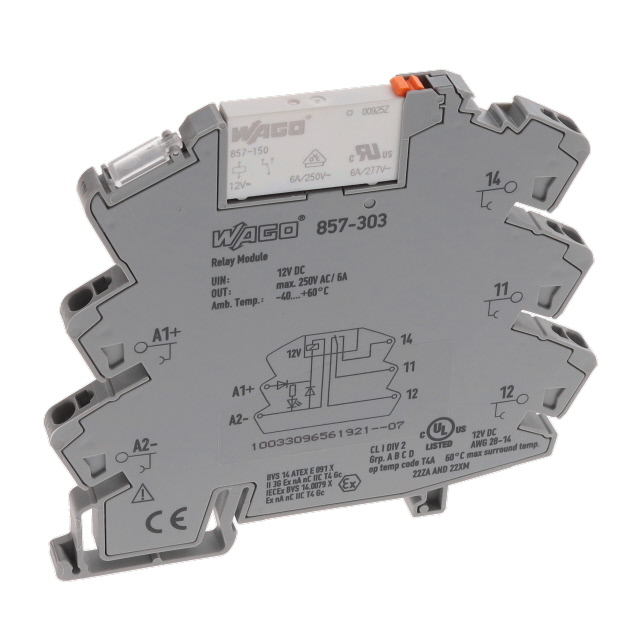

 WAGO Corporation | 60 °C | -40 C | DIN Rail | 6 A | EAC UL | General Purpose | SPDT (1 Form C) | 8 ms | 250 VAC | 12 VDC | Silver Nickel (AgNi) | Spring Terminal | Non Latching | 8 ms | 1500 VA | Lighted Indicator Socket Included | 17 mA | 705.9 Ohms | 1.8 VDC | 2.4 VDC | ||||||||

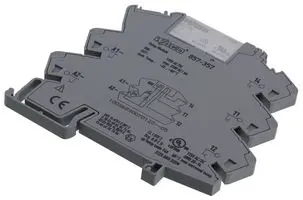

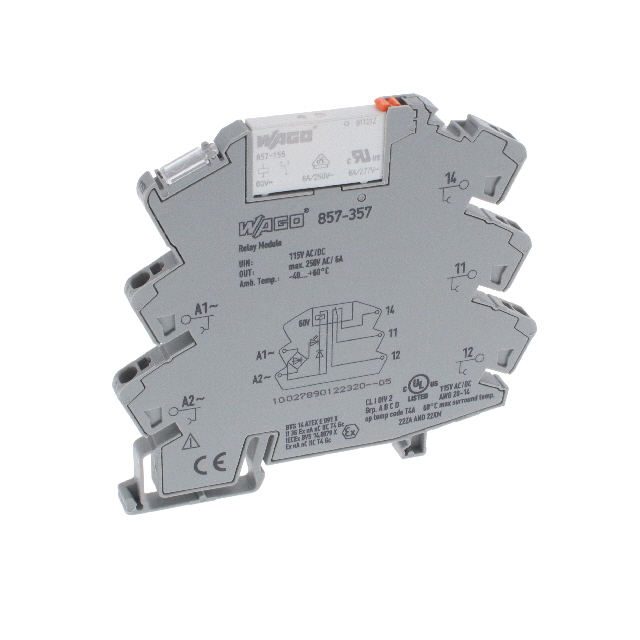

 WAGO Corporation | 60 °C | -40 C | DIN Rail | 6 A | EAC UL | General Purpose | SPDT (1 Form C) | 15 ms | 250 VAC | 115 VAC | Silver Tin Oxide (AgSnO) | Spring Terminal | Non Latching | 25 ms | 1500 VA | Lighted Indicator | 4 mA | 28800 Ohms | 92 VAC/DC | 115 VDC | ||||||||
 WAGO Corporation | 70 °C | -25 °C | DIN Rail | Spring Terminal | 24 V | 2500 VDC | Signal Conditioner | 10 VDC 20 mA | 0 mA 0 VDC | Current Voltage | Current Voltage |
