EDN.0M Series
Manufacturer: LEMO
Beta
⌘K

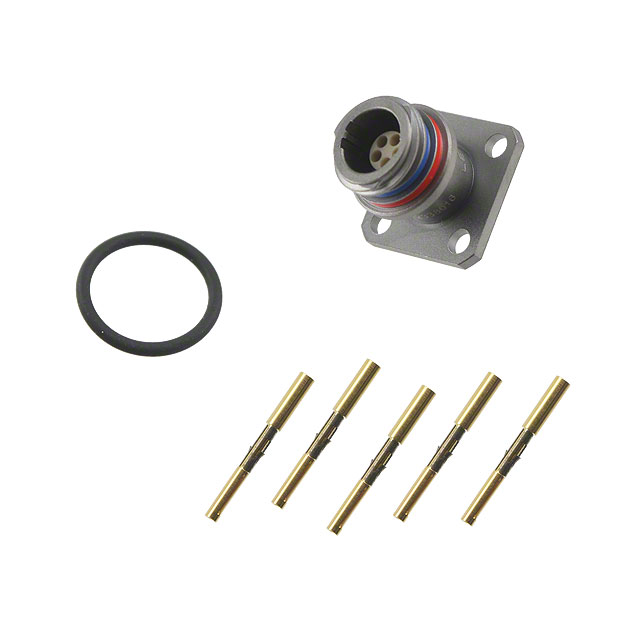

CONN RCPT FMALE 5POS GOLD CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Mounting Feature | Shell Material | Termination | Orientation | Applications | Insert Material | Number of Positions | Ingress Protection | Contact Finish - Mating | Cable Opening | Cable Opening | Contact Material | Current Rating (Amps) | Color | Shielding | Primary Material | Fastening Type | Connector Type | Shell Size - Insert | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | 200 °C | -55 C | Nickel | Flange | Aluminum Alloy | Crimp | N (Normal) | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | 5 | IP68 - Dust Tight Waterproof | Gold | 0.186 in | 4.72 mm | Bronze | 6.5 A | Gray | Shielded | Metal | Threaded | Receptacle Female Sockets | 305 | Panel Mount | 1.5 Ám | 59 Áin |
