1546671 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN BARRIER STRIP 7CIRC 0.437"

Part	Terminal Screw Material	Number of Wire Entries	Color	Voltage Rating	Number of Rows	Top Termination	Current Rating (Amps)	Terminal Screw Finish	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Mounting Type	Material - Insulation	Material Flammability Rating	Number of Circuits	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Features	Terminal Block Type	Number of Wire Entries [custom]
TE Connectivity Raychem Cable Protection 1546671-7	Steel	14	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	7	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block

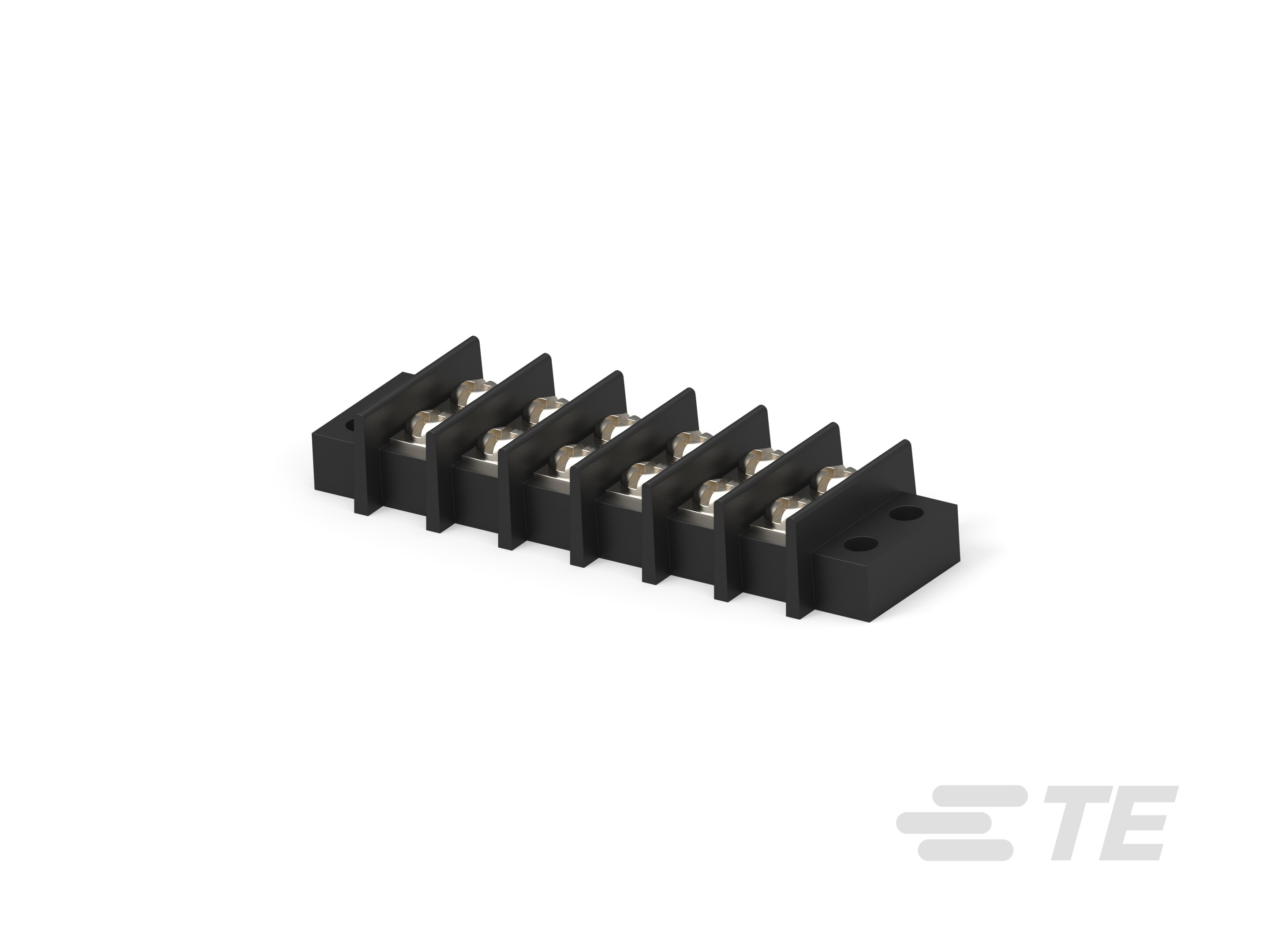

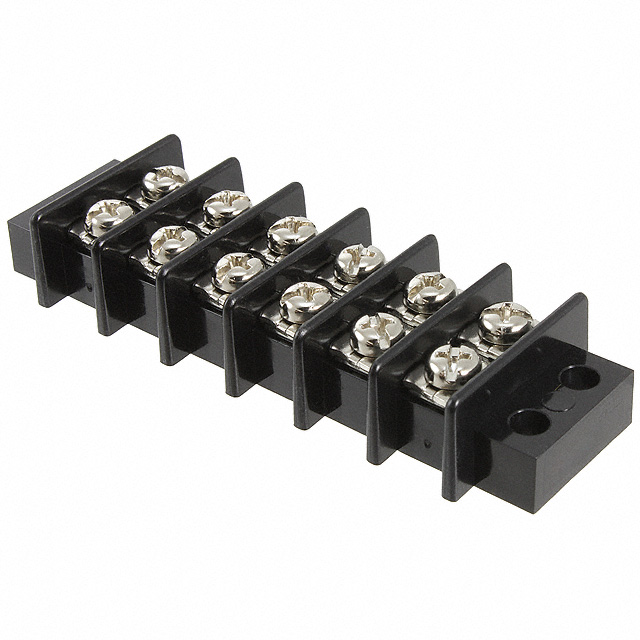

TE Connectivity Raychem Cable Protection 1546671-6	Steel	12	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	6	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block

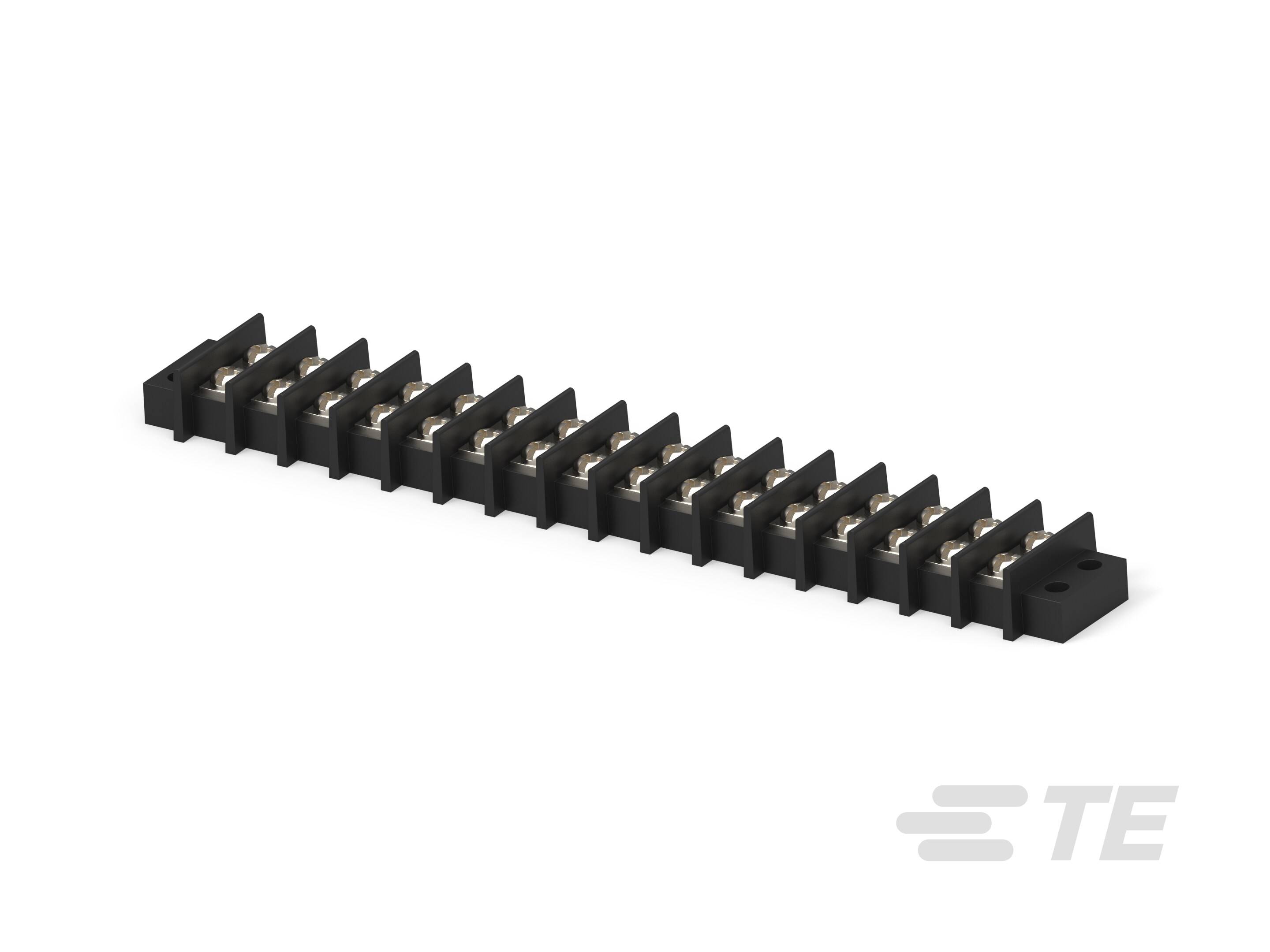

TE Connectivity Raychem Cable Protection 1-1546671-6	Steel	32	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	16	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block

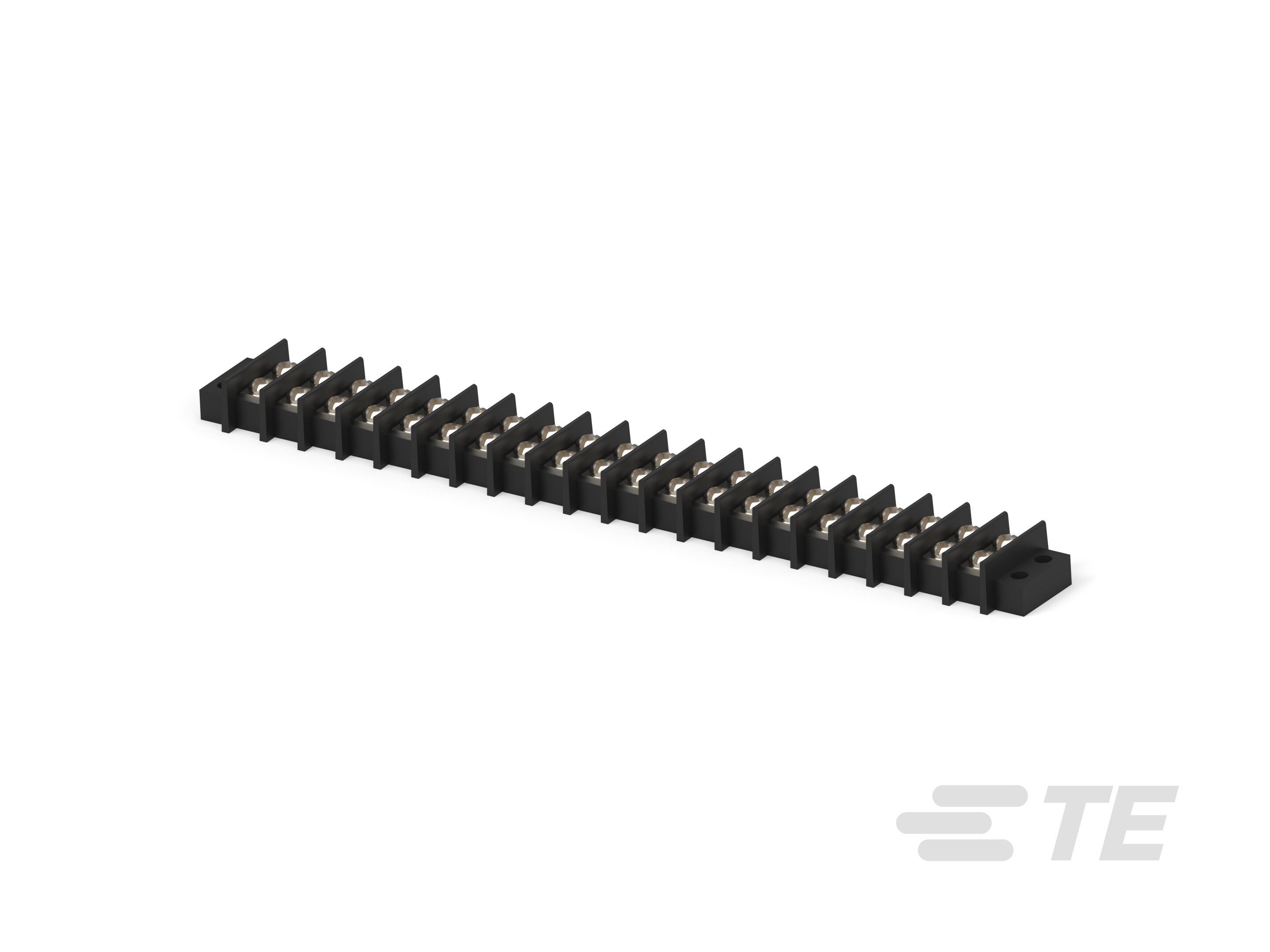

TE Connectivity Raychem Cable Protection 2-1546671-0	Steel	40	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	20	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block

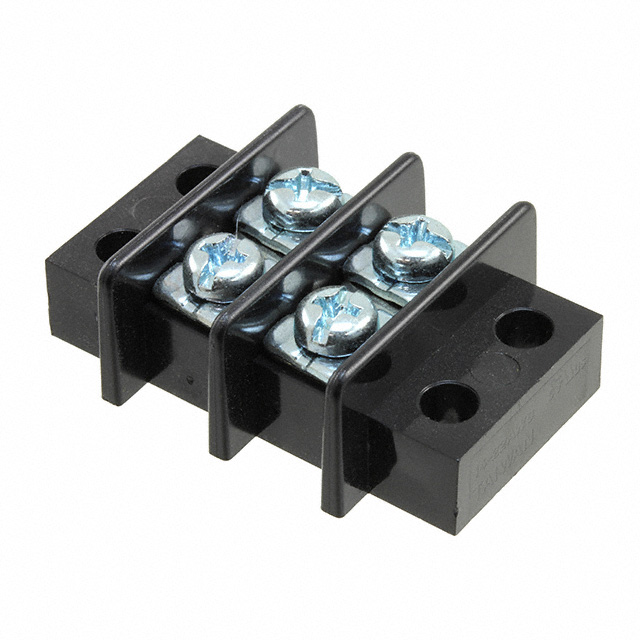

TE Connectivity Raychem Cable Protection 1546671-2	Steel	4	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	2	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block
TE Connectivity Raychem Cable Protection 1-1546671-3	Steel	26	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	13	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block
TE Connectivity Raychem Cable Protection 1-1546671-4	Steel	28	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	14	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block
TE Connectivity Raychem Cable Protection 2-1546671-4	Steel		Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	24	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block	48
TE Connectivity Raychem Cable Protection 1-1546671-1	Steel		Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0	11	2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block	22
TE Connectivity Raychem Cable Protection 1546671-9	Steel	18	Black	300 VDC	2	Screws	25 A	Nickel	-40 °C	120 °C	0.437 in	11.1 mm	Chassis Panel	Thermoplastic	UL94 V-0		2 Wall (Dual)	14 AWG	22 AWG	Closed	Flange	Barrier Block
