78033 Series

Catalog

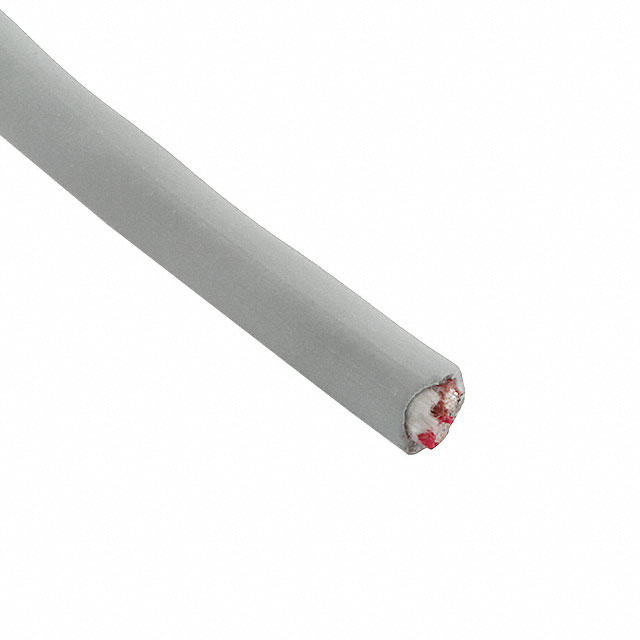

CABLE 3COND 22AWG SLATE

Part	Wire Gauge	Cable Type	Features	Jacket Color	Number of Conductors	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Ratings	Length	Length	Jacket (Insulation) Material	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 78033 SL001	22 AWG	Multi-Conductor	Biological Compatibility Rip Cord	Slate	3	300 VDC	0.133 in	3.38 mm	80 °C	-40 C	34 AWG	19	Polyphenylene Ether Modified (mPPE)	ISO 10993 UL Style 21460	304.8 m	1000 ft	Polyphenylene Ether Modified (mPPE)	0.381 mm	0.015 in	Copper Tinned
ALPHA WIRE 78033 SL199	22 AWG	Multi-Conductor	Biological Compatibility Rip Cord	Slate	3	300 VDC	0.133 in	3.38 mm	80 °C	-40 C	34 AWG	19	Polyphenylene Ether Modified (mPPE)	ISO 10993 UL Style 21460			Polyphenylene Ether Modified (mPPE)	0.381 mm	0.015 in	Copper Tinned	300 mm	1 '
