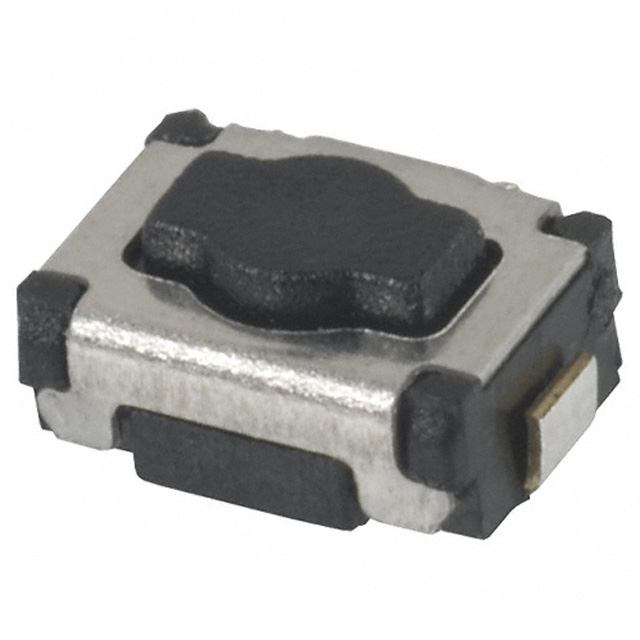

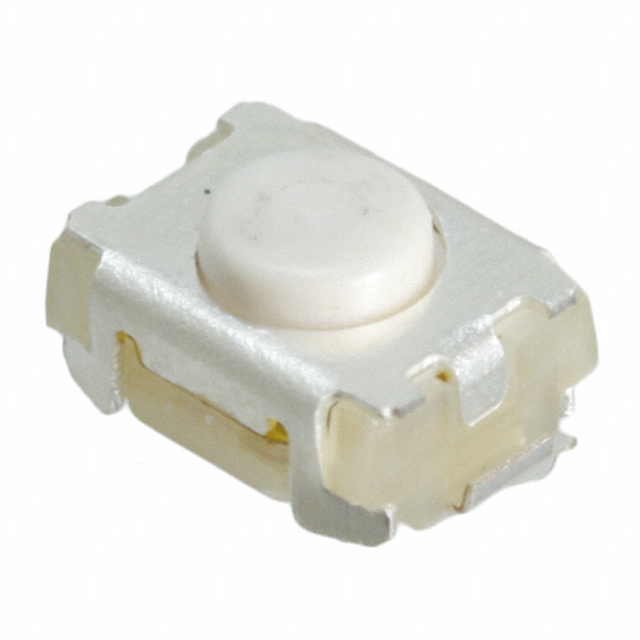

TL1015 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Actuator Material | Mechanical Life | Outline [y] | Outline [x] | Actuator Height off PCB, Vertical [z] | Actuator Type | Mounting Type | Illumination | Operating Force | Features | Contact Rating @ Voltage | Switch Function | Circuit | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.2 mm | Polyamide (PA46) Nylon 4/6 | 200000 Cycles | 2.9 mm | 3.9 mm | 2 mm | Standard | Surface Mount | Non-Illuminated | 160 gf | Board Guide | 0.05 A 12 VDC | Off-Mom | SPST-NO | Gull Wing | -20 ░C | 70 °C | Top Actuated |
 E-Switch | 0.2 mm | Polyamide (PA46) Nylon 4/6 | 200000 Cycles | 2.9 mm | 3.9 mm | 2 mm | Standard | Surface Mount | Non-Illuminated | 160 gf | 0.05 A 12 VDC | Off-Mom | SPST-NO | Gull Wing | -20 ░C | 70 °C | Top Actuated |
