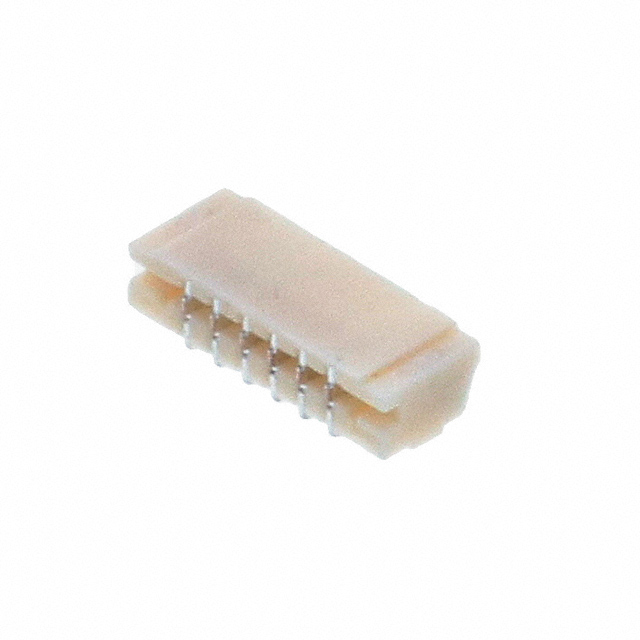

SM06B-XS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 6POS 0.6MM
| Part | Applications | Connector Type | Fastening Type | Current Rating (Amps) | Material Flammability Rating | Shrouding | Insulation Material | Contact Type | Number of Rows | Contact Finish - Post | Insulation Height [custom] | Insulation Height [custom] | Pitch - Mating | Pitch - Mating | Features | Termination | Voltage Rating | Style | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Shape | Number of Positions Loaded | Mounting Type | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | General Purpose | Header | Friction Lock | 0.2 A | UL94 V-0 | Shrouded - 4 Wall | Nylon Polyamide (PA) | Outer Shroud Contact | 1 | Tin | 1.45 mm | 0.057 in | 0.6 mm | 0.024 in | Solder Retention | Solder | 30 VDC | Board to Cable/Wire | 6 | 85 °C | -25 °C | Copper Alloy | Rectangular | All | Right Angle Surface Mount | Natural |
