HC-SML Series
Manufacturer: Phoenix Contact
Beta
⌘K

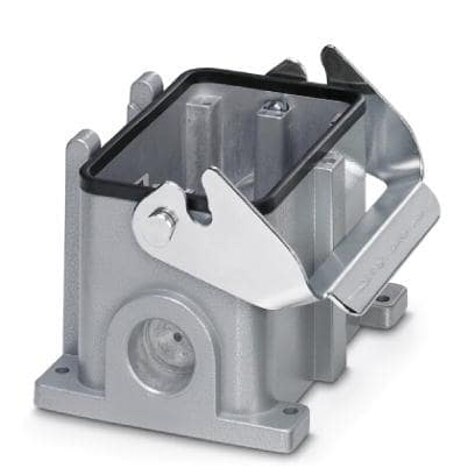

HEAVY DUTY POWER CONNECTORS HC-B 16-SML-67/ O1PG21
| Part | Housing Finish | Thread Size | Style | Ingress Protection | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Connector Type | Housing Material | Housing Color | Lock Location | Size | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Powder Coated | PG21 | Side Entry | IP65 - Dust Tight Water Resistant | 57 mm | 117 mm | 2.638 in | 4.606 in | 2.244 " | 67 mm | Base - Box Mount | Aluminum Die Cast | Gray | Locking Clip (1) on Base Bottom | B16 | 125 °C | -40 C |
 Phoenix Contact | Powder Coated | PG29 | Side Entry | IP65 - Dust Tight Water Resistant | 120 mm | 151 mm | 3.937 " | 5.945 " | 4.724 in | 100 mm | Base - Box Mount | Aluminum Die Cast | Gray | Locking Clip (1) on Base Bottom | B48 | 125 °C | -40 C |
