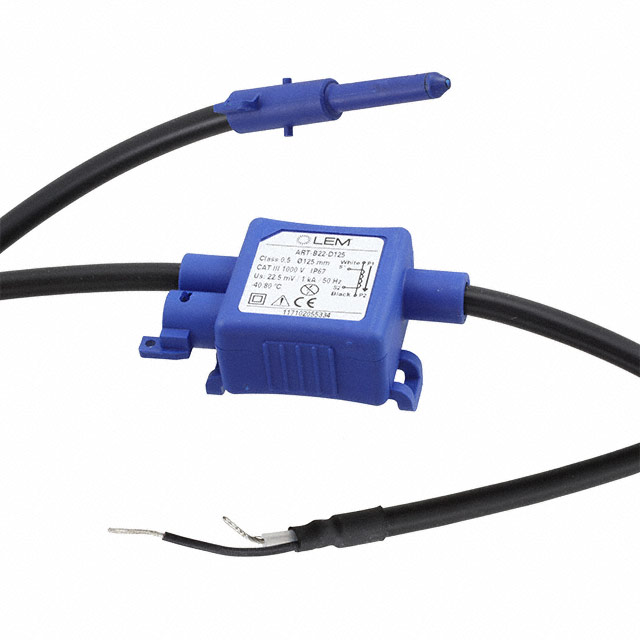

ART-B22 Series

Catalog

CURR SENSE XFMR FLEXIBLE COIL

Part	Mounting Type	Type	Termination Style	Turns Ratio - Primary:Secondary	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Frequency Range [Min]	Frequency Range [Max]	Size / Dimension [x]	Size / Dimension [y]
LEM USA Inc. ART-B22-D175	Free Hanging (In-Line)	Non-Invasive (Split Core)	Wire Leads	Rogowski Coil	343 µH	0.744 in	18.91 mm	105 Ohm	50 Hz	60 Hz	2.205 in	1.326 in
LEM USA Inc. ART-B22-D300	Free Hanging (In-Line)	Non-Invasive (Split Core)	Wire Leads	Rogowski Coil	566 µH	0.744 in	18.91 mm	170 Ohm	50 Hz	60 Hz	2.205 in	1.326 in
LEM USA Inc. ART-B22-D70	Free Hanging (In-Line)	Non-Invasive (Split Core)	Wire Leads 1.5m	Rogowski Coil	180 µH	0.744 in	18.91 mm	55 Ohm	50 Hz	60 Hz	2.205 in	1.326 in
