253R Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 5.62"L X 3.25"W

Part	Design	Material Flammability Rating	Area (L x W)	Area (L x W)	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Features	Height [z]	Height [z]	Container Type	Color	Material	Area (L x W) [custom]	Area (L x W) [custom]

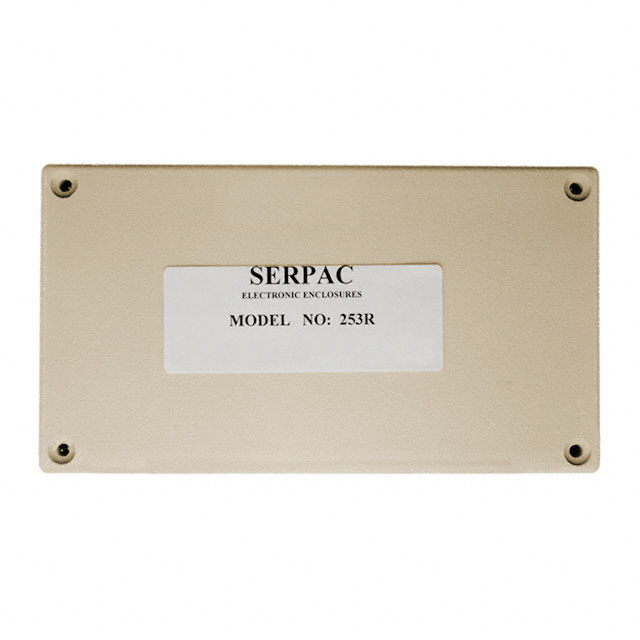

Serpac 253R,AL	Hand Held Split Sides	UL94 HB	18.3 in²	118 cm²	2.54 mm	0.1 in	5.62 "	142.75 mm	82.55 mm	3.25 "	IP40 NEMA 1	9V Battery Compartment Front Access PCB Supports	2.5 in	63.5 mm	Box	Almond	ABS Plastic

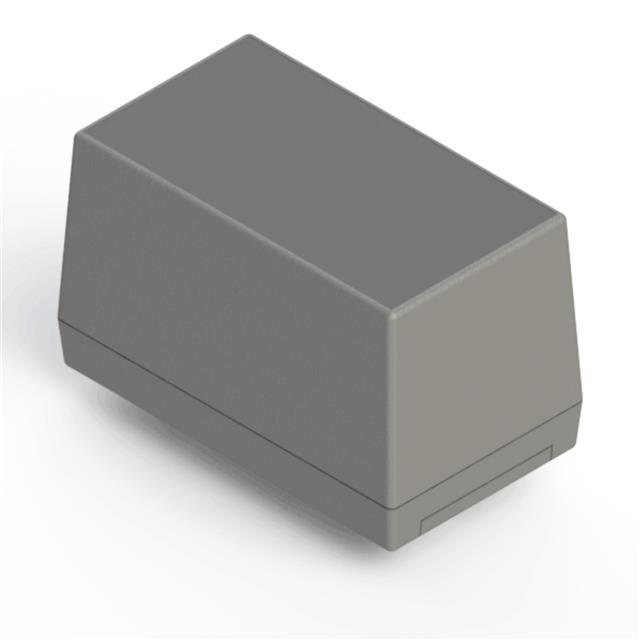

Serpac 253R,GY	Hand Held Split Sides	UL94 HB	18.3 in²	118 cm²	2.54 mm	0.1 in	5.62 "	142.75 mm	82.55 mm	3.25 "	IP40 NEMA 1	9V Battery Compartment Front Access PCB Supports	2.5 in	63.5 mm	Box	Gray	ABS Plastic

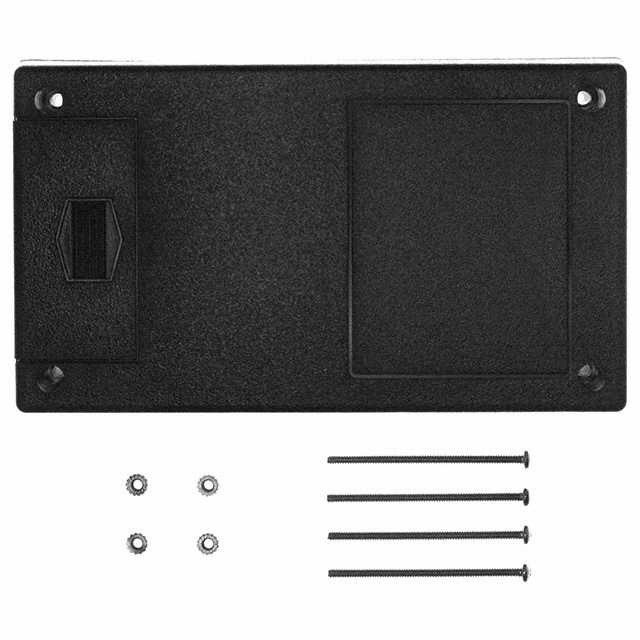

Serpac 253RI,BK	Hand Held Split Sides	UL94 HB	18.3 in²	118 cm²	2.54 mm	0.1 in	5.62 "	142.75 mm	82.55 mm	3.25 "	IP40 NEMA 1	9V Battery Compartment Front Access PCB Supports	2.5 in	63.5 mm	Box	Black	ABS Plastic	118 cm˛	18.3 in˛

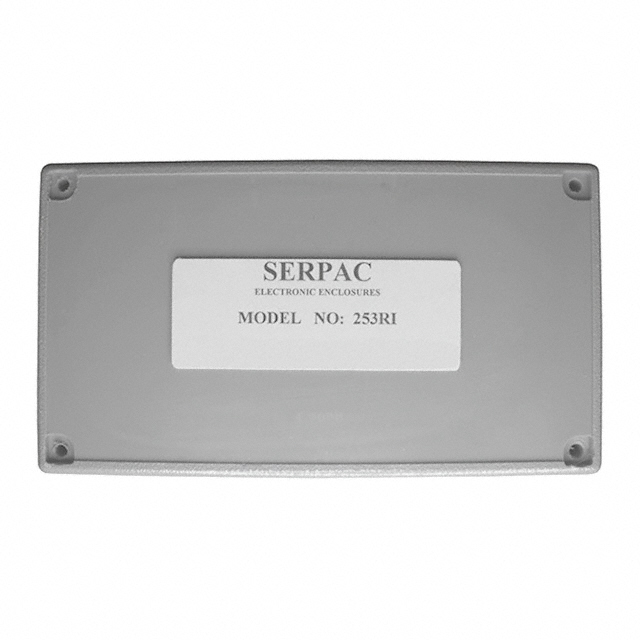

Serpac 253RI,GY	Hand Held Split Sides	UL94 HB	18.3 in²	118 cm²	2.54 mm	0.1 in	5.62 "	142.75 mm	82.55 mm	3.25 "	IP40 NEMA 1	9V Battery Compartment Front Access PCB Supports	2.5 in	63.5 mm	Box	Gray	ABS Plastic

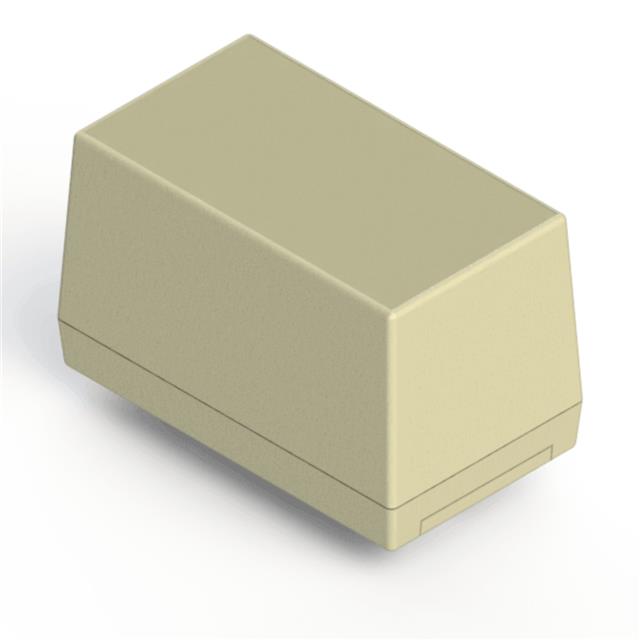

Serpac 253RI,AL	Hand Held Split Sides	UL94 HB	18.3 in²	118 cm²	2.54 mm	0.1 in	5.62 "	142.75 mm	82.55 mm	3.25 "	IP40 NEMA 1	9V Battery Compartment Front Access PCB Supports	2.5 in	63.5 mm	Box	Almond	ABS Plastic

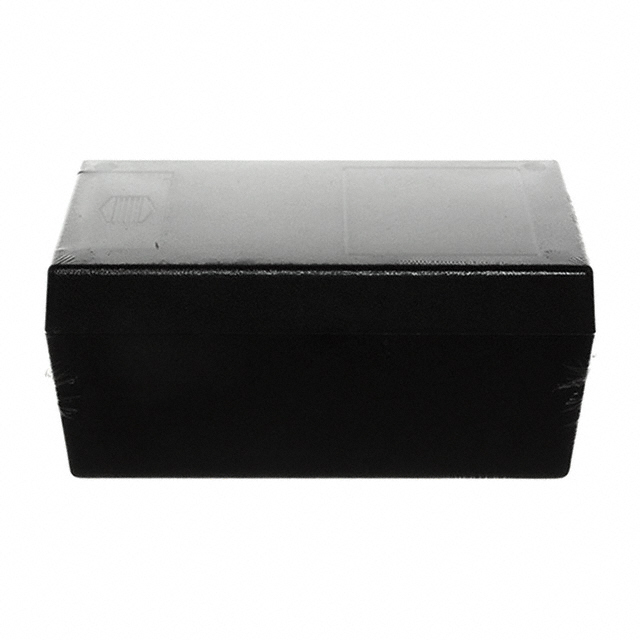

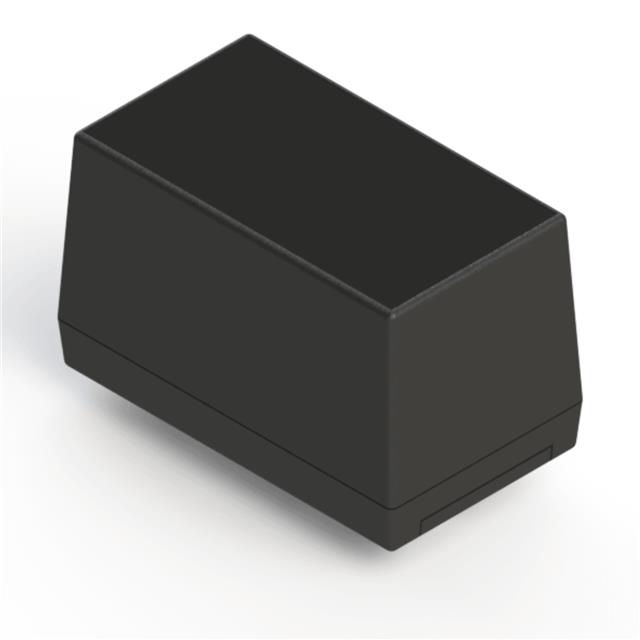

Serpac 253R,BK	Hand Held Split Sides	UL94 HB	18.3 in²	118 cm²	2.54 mm	0.1 in	5.62 "	142.75 mm	82.55 mm	3.25 "	IP40 NEMA 1	9V Battery Compartment Front Access PCB Supports	2.5 in	63.5 mm	Box	Black	ABS Plastic
