811 Series

Catalog

FUSED TERMINAL BLOCK, 2 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Part	Stripping Length [Min]	Stripping Length [Max]	Material - Insulation	Type	Terminal - Width [y]	Termination Style	Current - IEC	Number of Levels	Disconnect Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Number of Positions	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color

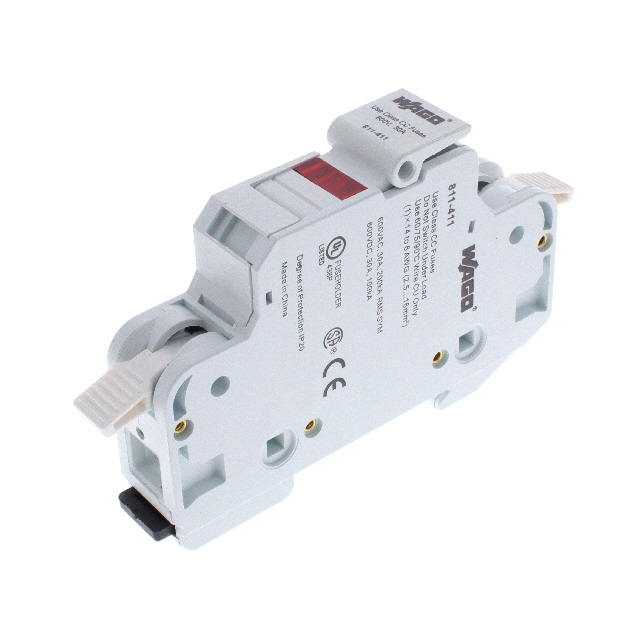

WAGO Corporation 811-411	12 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Disconnect	17.5 mm	Push In Spring	32 A	1	Fuse	14 AWG	6 AWG	LED Indicator	2	600 V	16 mm²	2.5 mm²	Gray
WAGO Corporation 811-421	12 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Disconnect	35 mm	Push In Spring	32 A	1	Fuse	14 AWG	6 AWG	LED Indicator	4	600 V	16 mm²	2.5 mm²	Gray

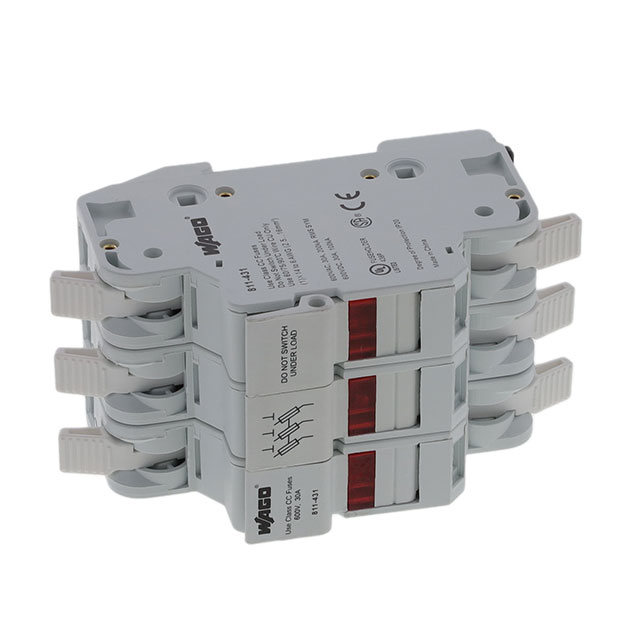

WAGO Corporation 811-431	12 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Disconnect	52.5 mm	Push In Spring	32 A	1	Fuse	14 AWG	6 AWG	LED Indicator	6	600 V	16 mm²	2.5 mm²	Gray

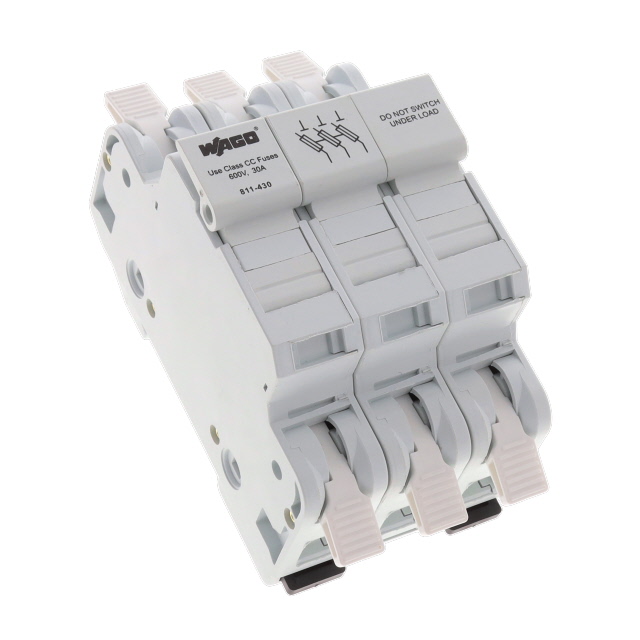

WAGO Corporation 811-430	12 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Disconnect	52.5 mm	Push In Spring	32 A	1	Fuse	14 AWG	6 AWG		6	600 V	16 mm²	2.5 mm²	Gray

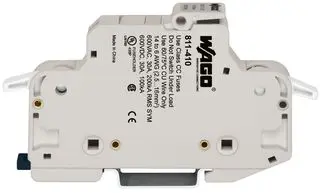

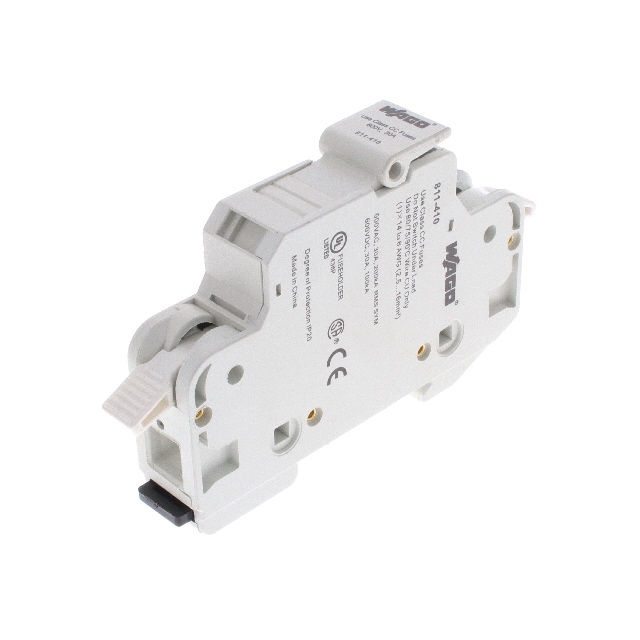

WAGO Corporation 811-410	12 mm	13 mm	Nylon 6/6 Polyamide (PA66)	Disconnect	17.5 mm	Push In Spring	32 A	1	Fuse	14 AWG	6 AWG		2	600 V	16 mm²	2.5 mm²	Gray
