M33415 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

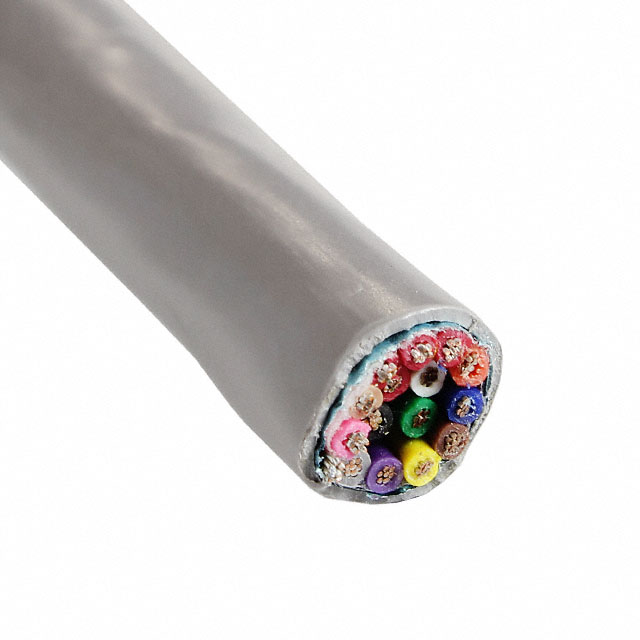

CABLE 15COND 20AWG SLATE
| Part | Number of Conductors | Conductor Material | Voltage | Cable Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 15 | Copper Tinned | 300 VDC | Multi-Conductor | Slate | 9.2 mm | 0.362 in | UL Style 2509 | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | 80 °C | -20 ░C | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 20 AWG | ||
ALPHA WIRE | 15 | Copper Tinned | 300 VDC | Multi-Conductor | Slate | 9.2 mm | 0.362 in | UL Style 2509 | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | 20 AWG | 914.4 m | 3000 ' |
