1825109 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

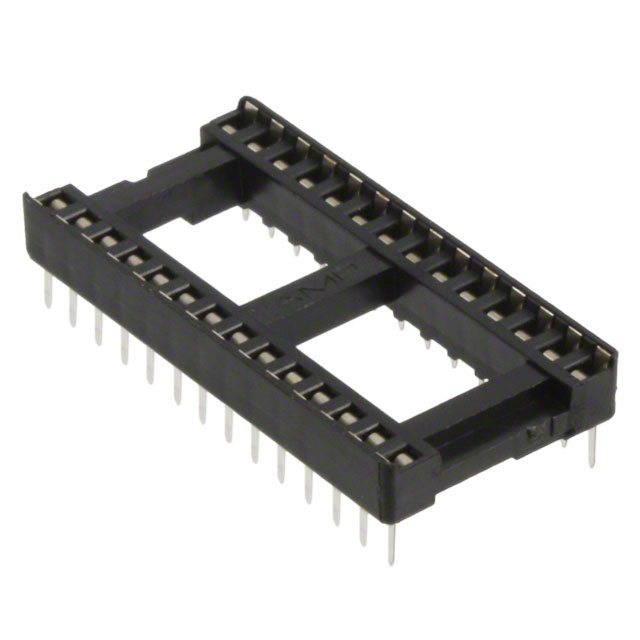

CONN IC DIP SOCKET 28POS GOLD
| Part | Contact Finish - Post | Contact Material - Post | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Resistance | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Number of Positions or Pins (Grid) | Housing Material | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Material - Mating | Type | Type | Type | Termination Post Length [x] | Termination Post Length [x] | Material Flammability Rating | Pitch - Post | Pitch - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Gold | Phosphor Bronze | Solder | -55 °C | 125 °C | 30 mOhm | 15 µin | 0.38 µm | Open Frame | 28 | Thermoplastic Glass Filled | Gold | 0.1 in | 2.54 mm | 15 µin | 0.38 µm | Through Hole | Phosphor Bronze | DIP | 0.6 in | 15.24 mm | 0.128 in | 3.24 mm | UL94 V-0 | 2.54 mm | 0.1 in |
