A6KV Series

Catalog

SWITCH ROTARY DIP BCD 0.025A 24V

Part	Length [x]	Length [x]	Electrical Life	Height Above Board [z]	Height Above Board [z]	Actuator Type	Actuator Level	Pitch	Pitch	Current Rating (Amps)	Circuit	Number of Positions	Contact Finish	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Pitch	Pitch

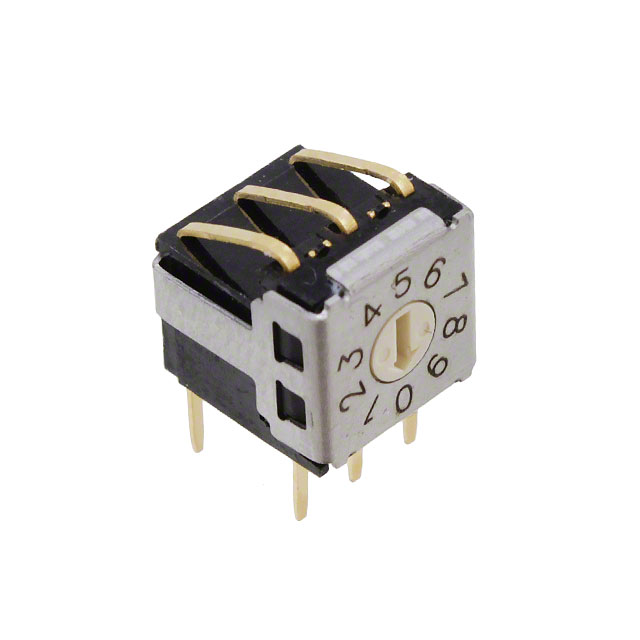

Omron Electronics Inc-EMC Div A6KV-102RF	7.2 mm	0.283 in	20000 Steps	7.7 mm	0.303 in	Rotary for Tool	Flush Recessed	2.54 mm	0.1 "	25 mA	BCD	10	Gold	24 VDC	80 °C	-30 ░C	Right Angle Through Hole	PC Pin

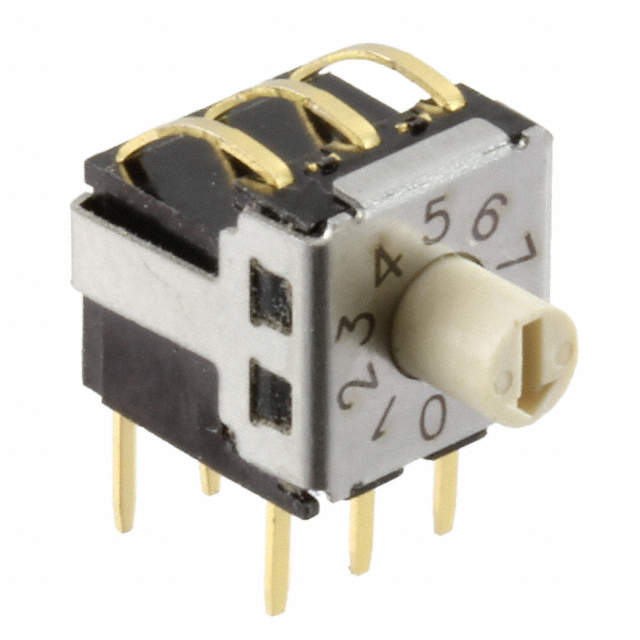

Omron Electronics Inc-EMC Div A6KV-102RS	7.2 mm	0.283 in	20000 Steps	7.7 mm	0.303 in	Rotary with Shaft	Raised	2.54 mm	0.1 "	25 mA	BCD	10	Gold	24 VDC	80 °C	-30 ░C	Right Angle Through Hole	PC Pin

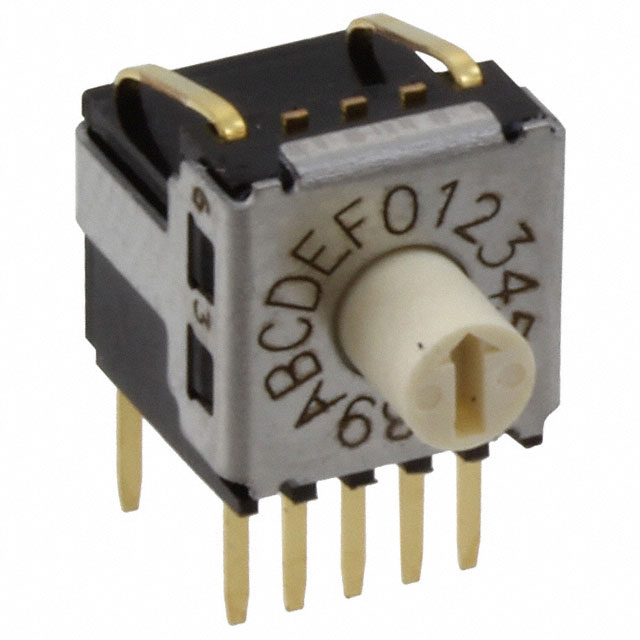

Omron Electronics Inc-EMC Div A6KV-164RS	7.2 mm	0.283 in	20000 Steps	7.7 mm	0.303 in	Rotary with Shaft	Raised	1.27 mm		25 mA	Hexadecimal	16	Gold	24 VDC	80 °C	-30 ░C	Right Angle Through Hole	PC Pin	0.05 "	Half

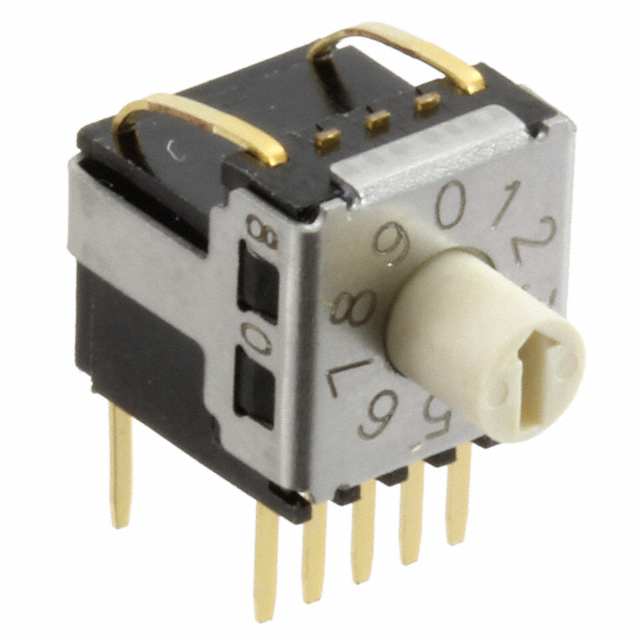

Omron Electronics Inc-EMC Div A6KV-104RS	7.2 mm	0.283 in	20000 Steps	7.7 mm	0.303 in	Rotary with Shaft	Raised	1.27 mm		25 mA	BCD	10	Gold	24 VDC	80 °C	-30 ░C	Right Angle Through Hole	PC Pin	0.05 "	Half

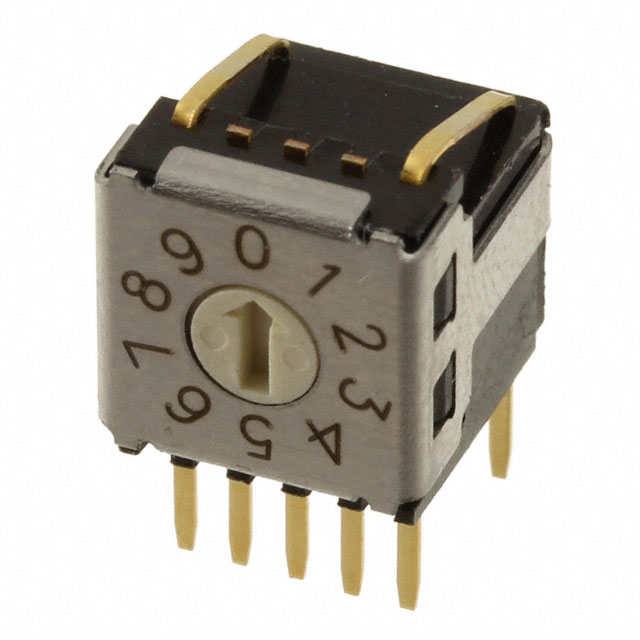

Omron Electronics Inc-EMC Div A6KV-104RF	7.2 mm	0.283 in	20000 Steps	7.7 mm	0.303 in	Rotary for Tool	Flush Recessed	1.27 mm		25 mA	BCD	10	Gold	24 VDC	80 °C	-30 ░C	Right Angle Through Hole	PC Pin	0.05 "	Half
