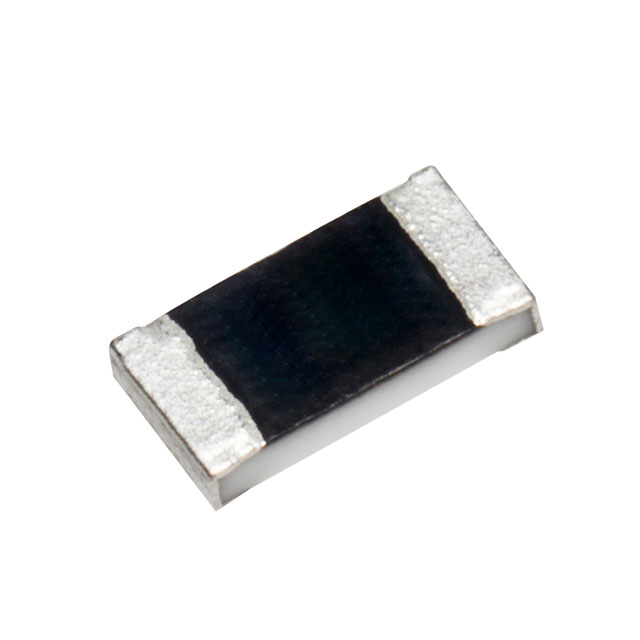

SR732B Series
Manufacturer: KOA Speer Electronics, Inc.
Beta
⌘K
CURRENT SENSE RESISTOR
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Number of Terminations [custom] | Package / Case | Power (Watts) | Power (Watts) | Composition | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Supplier Device Package | Resistance | Temperature Coefficient | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 2 % | -55 C | 150 °C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 1.2 Ohms | 200 ppm/°C | Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 1 % | -55 C | 150 °C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 348 mOhms | 100 ppm/°C | Automotive AEC-Q200 Current Sense Moisture Resistant |
 KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 1 % | -55 C | 155 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 4.87 Ohms | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 1 % | -55 C | 155 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 5.76 Ohms | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 1 % | -55 C | 155 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 2.49 Ohms | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 0.5 % | -55 C | 150 °C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 634 mOhms | 100 ppm/°C | Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 5 % | -55 C | 155 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 270 mOhms | 200 ppm/°C | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 0.5 % | -55 C | 150 °C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 196 mOhms | 100 ppm/°C | Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 1 % | -55 C | 155 C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 820 mOhms | 100 ppm/°C | Anti-Sulfur Automotive AEC-Q200 Current Sense Moisture Resistant |
KOA Speer Electronics, Inc. | 0.7 mm | 0.028 " | 2 | 1206 (3216 Metric) | 0.3333333333333333 W | 0.333 W | Thick Film | 5 % | -55 C | 150 °C | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | AEC-Q200 | 1206 | 0.18 Ohms | 200 ppm/°C | Automotive AEC-Q200 Current Sense Moisture Resistant |
