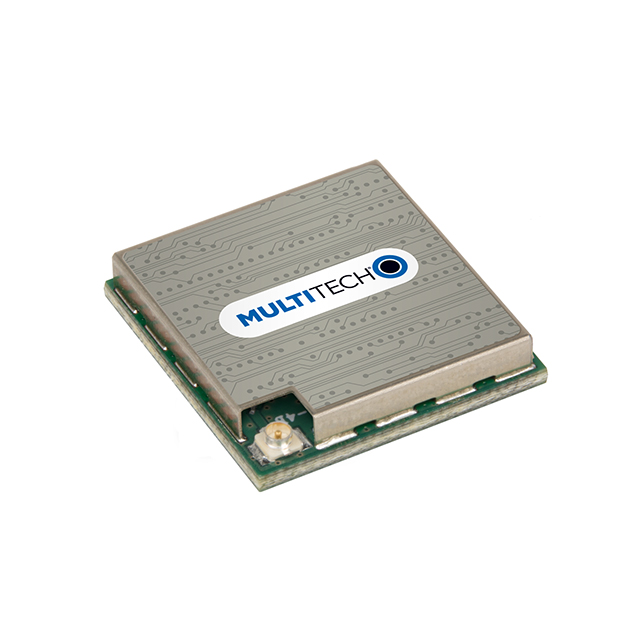

MTXDOT Series

Catalog

RF TXRX MOD ISM<1GHZ SMD

Part	Protocol	RF Family/Standard	Package / Case	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Sensitivity	Power - Output	Mounting Type	Memory Size	Frequency [Max]	Frequency [Min]	Antenna Type	Data Rate
Multi-Tech Systems Inc. MTXDOT-NA1-A00-1	LoRa®	General ISM < 1GHz	Module	915 MHz	85 °C	-40 C	I2C SPI UART	-137 dBm	19 dBm	Surface Mount
Multi-Tech Systems Inc. MTXDOT-EU1-A00-1	LoRa®	General ISM < 1GHz	Module	868 MHz	85 °C	-40 C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	Flash RAM
Multi-Tech Systems Inc. MTXDOT-EU1-IN1-A00-100	LoRa®	General ISM < 1GHz	Module		85 °C	-40 C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	Flash RAM	1.02 GHz	860 MHz	Antenna Not Included U.FL	20 kbps
Multi-Tech Systems Inc. MTXDOT-NA1-A00-100	LoRa®	General ISM < 1GHz	Module	915 MHz	85 °C	-40 C	I2C SPI UART	-137 dBm	19 dBm	Surface Mount

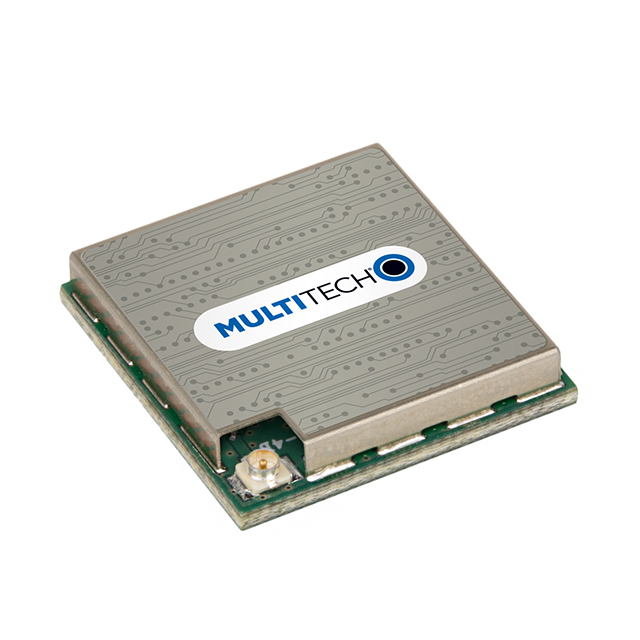

Multi-Tech Systems Inc. MTXDOT-AS1-A01-100	LoRa®	General ISM < 1GHz	Module		85 °C	-40 C	I2C SPI			Surface Mount	Flash RAM	1.02 GHz	860 MHz	Integrated Trace	293 kbps
Multi-Tech Systems Inc. MTXDOT-EU1-IN1-A00-1	LoRa®	General ISM < 1GHz	Module		85 °C	-40 C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	Flash RAM	1.02 GHz	860 MHz	Antenna Not Included U.FL	20 kbps
Multi-Tech Systems Inc. MTXDOT-NA1-A01-100	LoRa®	General ISM < 1GHz	Module	915 MHz	85 °C	-40 C	I2C SPI UART	-137 dBm	19 dBm	Surface Mount
Multi-Tech Systems Inc. MTXDOT-KR1-A00-1	LoRa®	General ISM < 1GHz	Module		85 °C	-40 C	I2C SPI UART			Surface Mount	Flash RAM	1.02 GHz	860 MHz		20 kbps
Multi-Tech Systems Inc. MTXDOT-EU1-A01-100	LoRa®	General ISM < 1GHz	Module	868 MHz	85 °C	-40 C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	Flash RAM
Multi-Tech Systems Inc. MTXDOT-EU1-A00-100	LoRa®	General ISM < 1GHz	Module	868 MHz	85 °C	-40 C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	Flash RAM
