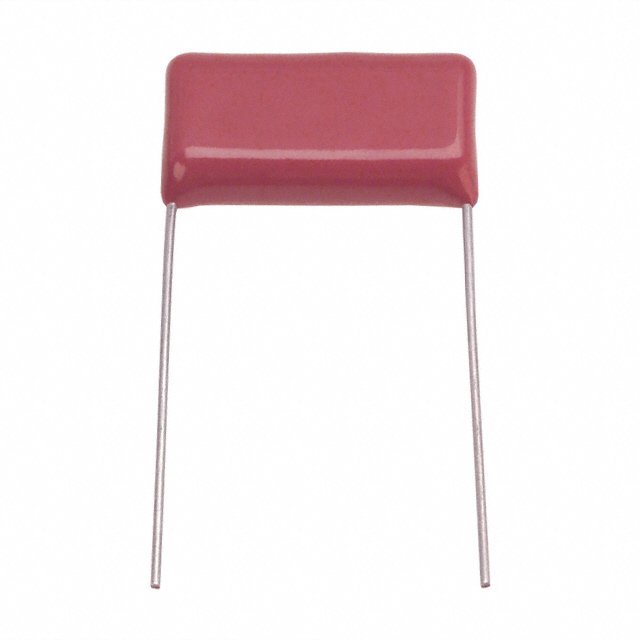

ECQ-E4394 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.39UF 10% 400VDC RAD

Part	Dielectric Material	Mounting Type	Lead Spacing	Lead Spacing	Voltage Rating - DC	Termination	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E4394KFW	Polyester Metallized	Through Hole	0.394 in	10 mm	400 V	PC Pins	0.39 µF	-40 C	105 ░C	7.5 mm	18.5 mm	0.295 in	0.728 in	Radial	0.803 in	20.4 mm	10 %	General Purpose
Panasonic Electronic Components ECQ-E4394KZ	Polyester Metallized	Through Hole	1.004 in	25.5 mm	400 V	PC Pins	0.39 µF	-40 C	85 °C	8.5 mm	29 mm	0.335 in	1.142 in	Radial	0.669 "		10 %	General Purpose	17 mm
Panasonic Electronic Components ECQ-E4394JFB	Polyester Metallized	Through Hole	0.394 in	10 mm	400 V	PC Pins	0.39 µF	-40 C	105 ░C	7.5 mm	18.5 mm	0.295 in	0.728 in	Radial	0.803 in	20.4 mm	5 %	General Purpose
Panasonic Electronic Components ECQ-E4394JF	Polyester Metallized	Through Hole	0.591 in	15 mm	400 V	PC Pins	0.39 µF	-40 C	105 ░C	7.5 mm	18.5 mm	0.295 in	0.728 in	Radial			5 %	General Purpose	16.4 mm	0.646 in
Panasonic Electronic Components ECQ-E4394RJF	Polyester Metallized	Through Hole	0.591 in	15 mm	400 V	PC Pins	0.39 µF	-40 C	105 ░C	7.5 mm	18.5 mm	0.295 in	0.728 in	Radial	0.803 in	20.4 mm	5 %	General Purpose
Panasonic Electronic Components ECQ-E4394KF3	Polyester Metallized	Through Hole	0.197 "	5 mm	400 V	PC Pins	0.39 µF	-40 C	105 ░C	7.5 mm	18.5 mm	0.295 in	0.728 in	Radial	0.803 in	20.4 mm	10 %	General Purpose
