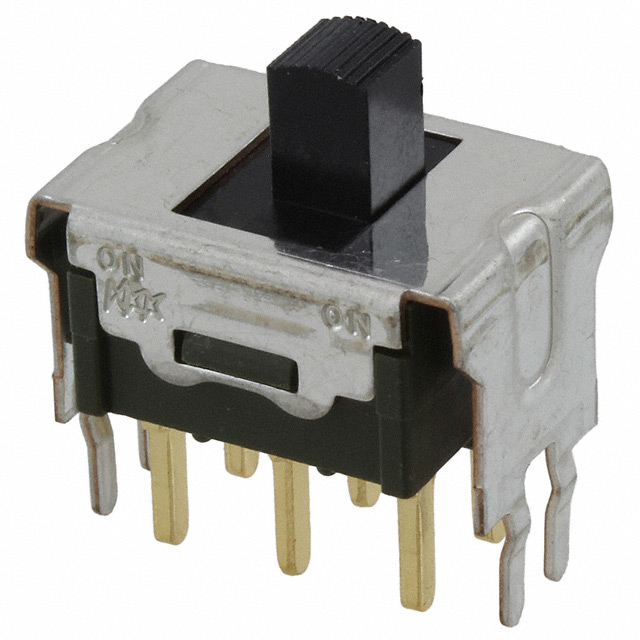

MS22ASA Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH SLIDE DPDT 6A 125V
| Part | Mechanical Life | Electrical Life | Switch Travel | Actuator Material | Actuator Length [x] | Switch Function | Termination Style | Current Rating (Amps) | Features | Circuit | Contact Finish | Contact Material | Voltage Rating - AC | Contact Timing | Actuator Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 25000 Steps | 2.2 mm | Polybutylene Terephthalate (PBT) Glass Filled | 5.1 mm | On-On | PC Pin | 6 A | Epoxy Sealed Terminals | DPDT | Gold | Silver Alloy | 125 V | Non-Shorting (BBM) | Standard | Through Hole | 85 °C | -30 ░C |
