14-236 Series
Manufacturer: EAO
Beta
⌘K

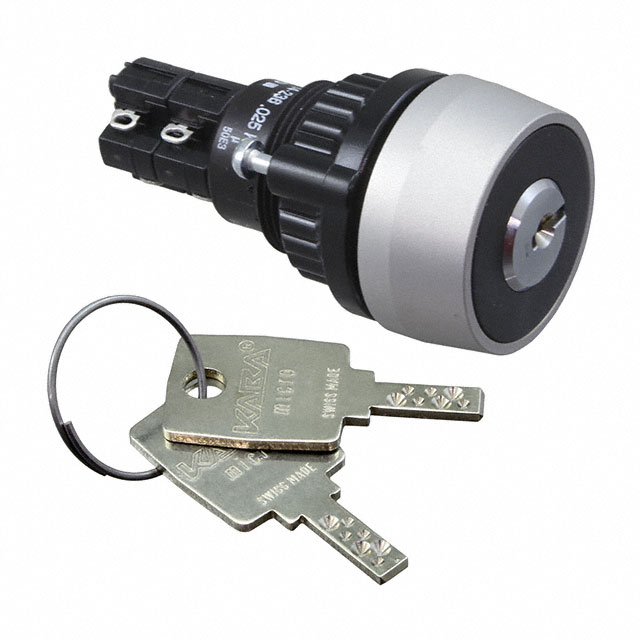

KEYLOCK SWITCH, OFF-ON, DPDT, 14 SERIES, 2 POSITION, SOLDER, 5 A
| Part | Depth Behind Flange | Mechanical Life | Mounting Type | Number of Positions | Contact Timing | Voltage Rating - AC | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [diameter] | Termination Style | Circuit | Features | Operating Temperature [Max] | Operating Temperature [Min] | Angle of Throw | Actuator Type | Key Removable Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 43 mm | 1000000 Cycles | Panel Mount | 2 | Not Specified | 250 V | 5 A | Off-On On-Off | 22.3 mm | Solder Lug | 4PST-2NO/2NC | IP65 | 55 °C | -25 °C | 90 ° | Flat Key | 1 |
