VM3SA Series

Catalog

SWITCH LIMIT SPST-NO 10A 125V

Part	Operating Position	Operating Position	Release Force	Mounting Type	Ingress Protection	Mechanical Life	Termination Style	Electrical Life	Differential Travel	Differential Travel	Operating Force	Actuator Type	Overtravel [custom]	Overtravel [custom]	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Voltage Rating - DC	Current Rating (Amps)	Voltage Rating - AC	Differential Travel
CIT Relay and Switch VM3SAQF3002L00	0.581 in	14.75 mm	250 gf	Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Quick Connect	50000 Cycles	0.8 mm	0.031 in	320 gf	Round (Pin Plunger)	0.6 mm	0.024 "	2 mm	0.08 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V

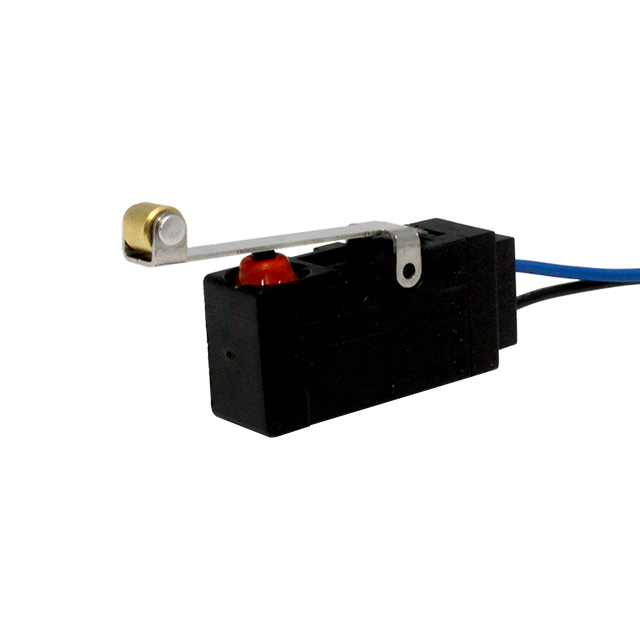

CIT Relay and Switch VM3SAGF1803L01	0.807 in	20.5 mm	50 gf	Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Wire Leads	50000 Cycles	0.05 in		140 gf	Lever Roller	1 mm	0.039 "	2.5 mm	0.1 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V	1.3 mm

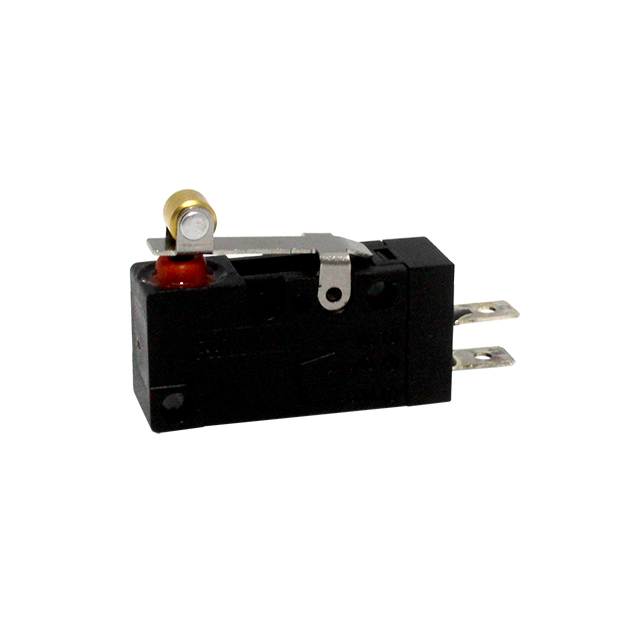

CIT Relay and Switch VM3SAQF1802L06	0.807 in	20.5 mm		Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Quick Connect	50000 Cycles	1 mm	0.04 in	240 gf	Lever Roller	0.5 mm	0.02 "	1.5 mm	0.06 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V

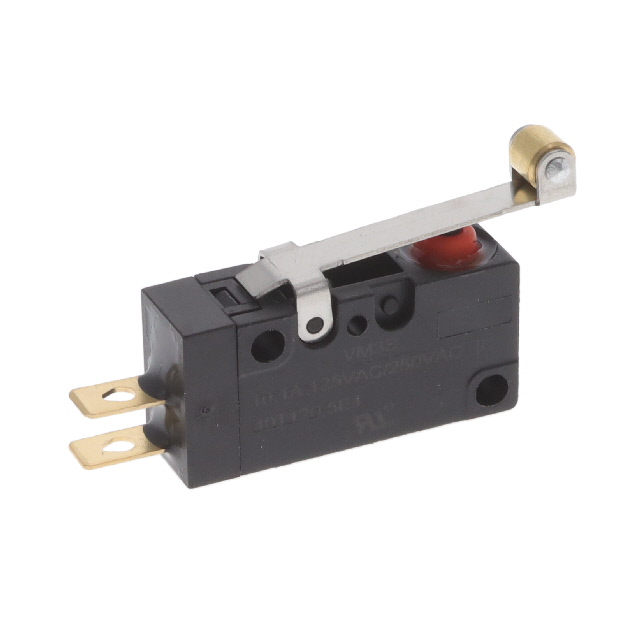

CIT Relay and Switch VM3SAQF1802L01	0.807 in	20.5 mm	50 gf	Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Quick Connect	50000 Cycles	0.05 in		140 gf	Lever Roller	1 mm	0.039 "	2.5 mm	0.1 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V	1.3 mm
CIT Relay and Switch VM3SAGF3003L02	0.72 in	18.3 mm	180 gf	Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Wire Leads	50000 Cycles	1.5 mm	0.06 in	0.2 kgf	Lever Simulated Roller	0.6 mm	0.024 "	3 mm	0.118 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V
CIT Relay and Switch VM3SAQF1802L04	0.602 in	15.3 mm	80 gf	Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Quick Connect	50000 Cycles	1 mm	0.04 in	190 gf	Lever Straight	0.5 mm	0.02 "	1.8 mm	0.071 "	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V
CIT Relay and Switch VM3SAGF3003L01	0.795 in	20.2 mm		Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Wire Leads	50000 Cycles	0.05 in		210 gf	Lever Roller	0.8 mm	0.031 "	3 mm	0.118 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V	1.3 mm
CIT Relay and Switch VM3SAQF1803L01	0.807 in	20.5 mm	50 gf	Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Wire Leads	50000 Cycles	0.05 in		140 gf	Lever Roller	1 mm	0.039 "	2.5 mm	0.1 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V	1.3 mm

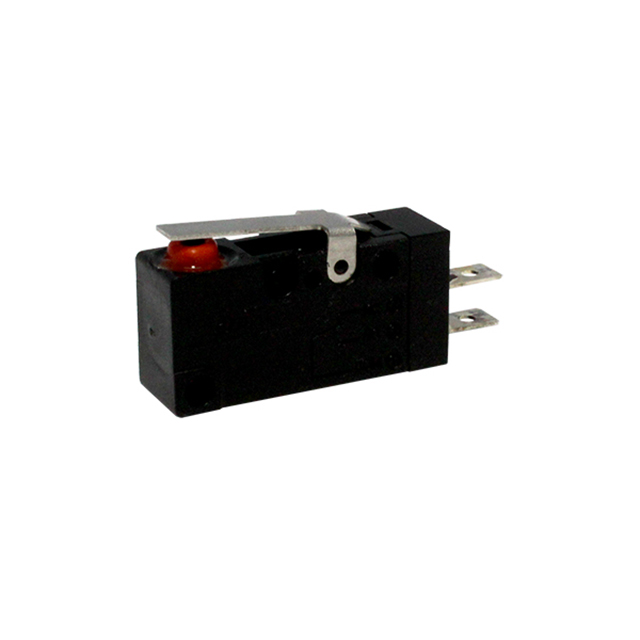

CIT Relay and Switch VM3SAGF1802L04	0.602 in	15.3 mm	80 gf	Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Quick Connect	50000 Cycles	1 mm	0.04 in	190 gf	Lever Straight	0.5 mm	0.02 "	1.8 mm	0.071 "	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V

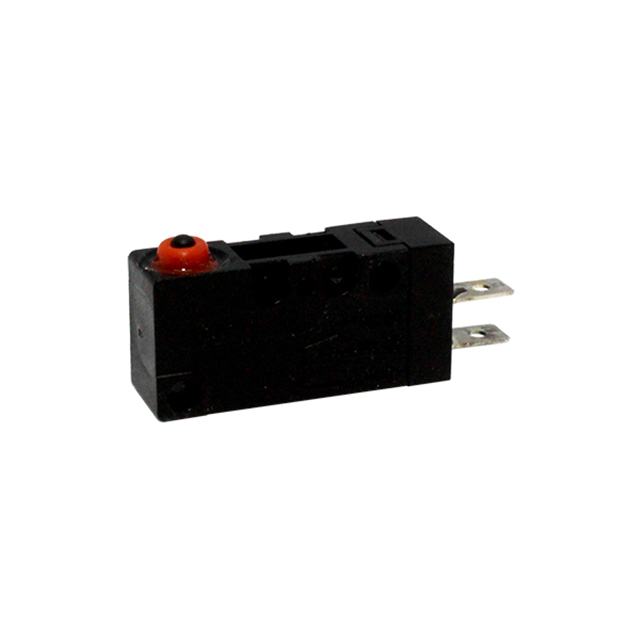

CIT Relay and Switch VM3SAQF1802L00	0.581 in	14.75 mm		Chassis Mount	IP67 - Dust Tight Waterproof	1000000 Cycles	Quick Connect	50000 Cycles	0.8 mm	0.031 in	180 gf	Round (Pin Plunger)	0.8 mm	0.031 "	1.6 mm	0.063 in	120 °C	-40 C	Off-Mom	SPST-NO	36 VDC	6 A 10 A	125 V
