CWR-281 Series

Catalog

CONN D-SUB PLUG 15POS IDC

Part	Color	Dielectric Material	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Material Flammability Rating	Number of Positions	Termination	Features	Connector Type	Connector Style	Number of Rows [custom]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Shell Size, Connector Layout	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]
CW Industries CWR-281-15-0203	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	15	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	2.54 µm	100 µin	Free Hanging (In-Line)	Tin	2	Signal

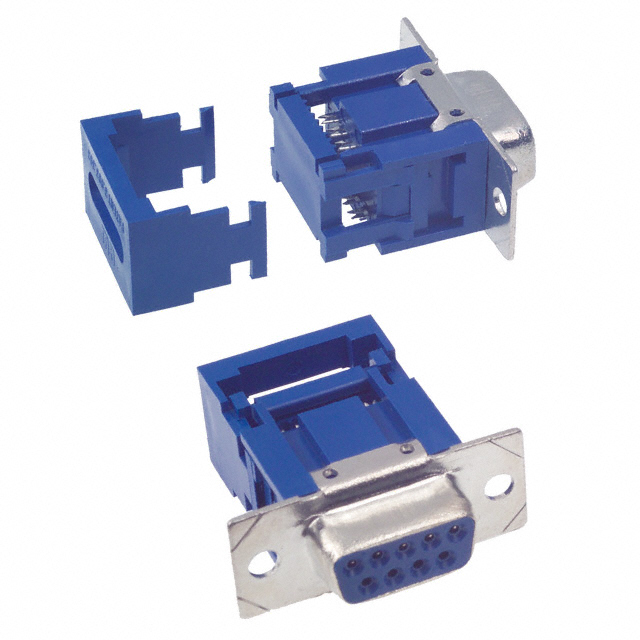

CW Industries CWR-281-09-0003	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	9	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	2.54 µm	100 µin	Free Hanging (In-Line)	Tin		Signal	1	DE E

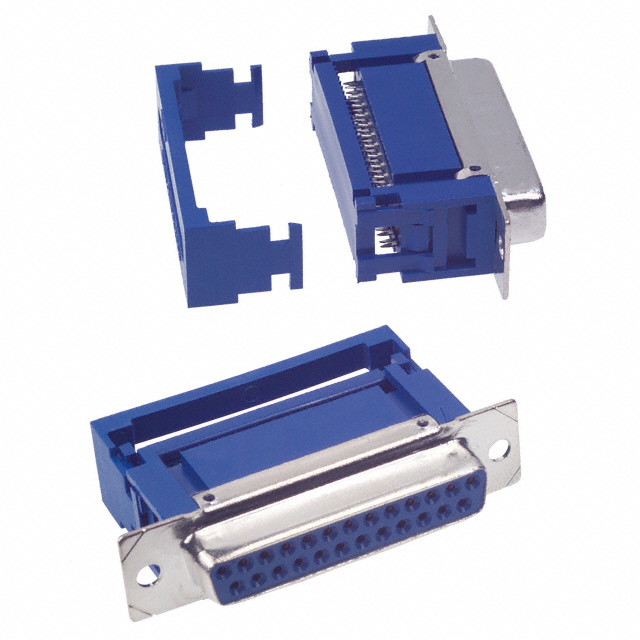

CW Industries CWR-281-25-0003	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	25	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	2.54 µm	100 µin	Free Hanging (In-Line)	Tin		Signal			B DB	3

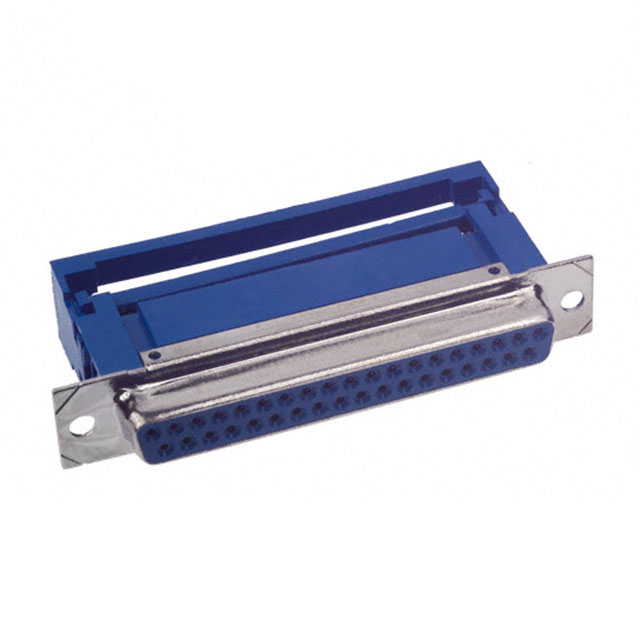

CW Industries CWR-281-37-0021	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	37	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	Free Hanging (In-Line)	Gold	4	Signal			DC C
CW Industries CWR-281-25-0000	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	25	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	0.25 Ám	10 Áin	Free Hanging (In-Line)	Gold		Signal			B DB	3
CW Industries CWR-281-09-0000	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	9	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	0.25 Ám	10 Áin	Free Hanging (In-Line)	Gold		Signal	1	DE E

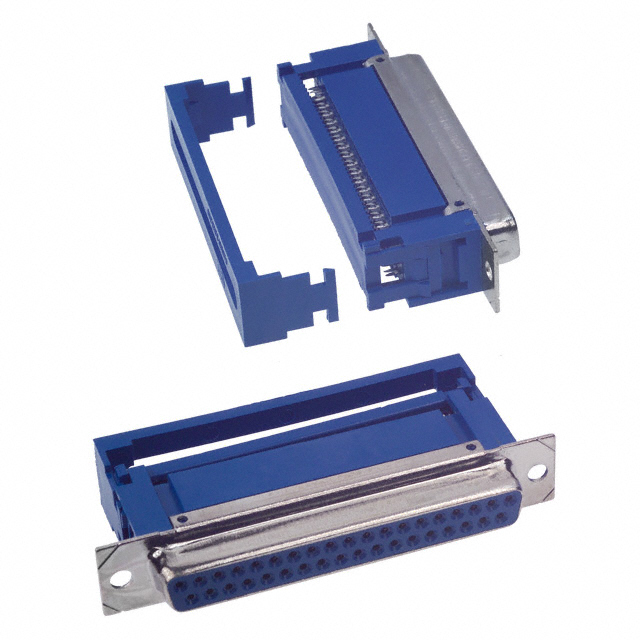

CW Industries CWR-281-37-0000	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	37	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	0.25 Ám	10 Áin	Free Hanging (In-Line)	Gold	4	Signal			DC C
CW Industries CWR-281-25-0021	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	25	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	Free Hanging (In-Line)	Gold		Signal			B DB	3

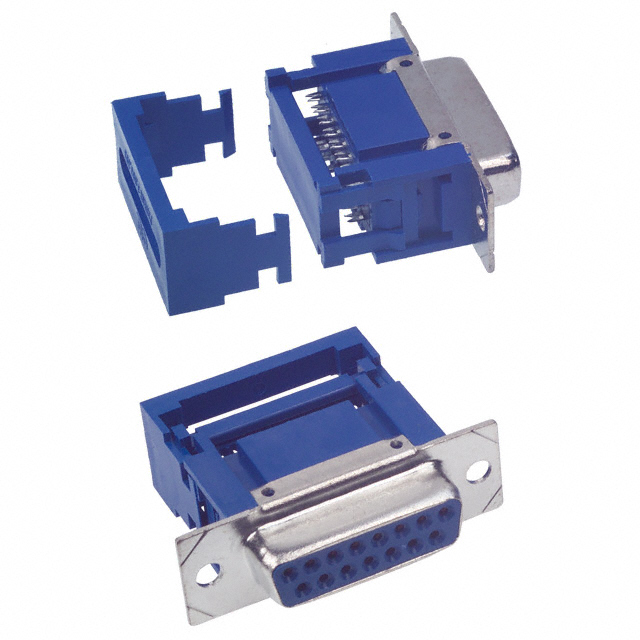

CW Industries CWR-281-15-0000	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	15	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	0.25 Ám	10 Áin	Free Hanging (In-Line)	Gold	2	Signal
CW Industries CWR-281-37-0203	Blue	Thermoplastic	30 AWG	27.5 AWG	Phosphor Bronze	UL94 V-0	37	IDC Ribbon Cable	Feed Through Shielded Strain Relief	Plug Female Sockets	D-Sub	2	Housing/Shell (Unthreaded)	2.54 µm	100 µin	Free Hanging (In-Line)	Tin	4	Signal			DC C
