2201/20 Series

Catalog

HOOK-UP STRND 20AWG BLU

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Voltage	Ratings	Jacket Color	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Conductor Material	Qualification	Length	Length
Daburn Electronics 2201/20BU-101	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Blue	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C	100 ft	30.5 m	Copper Tinned	MIL-W-16878 Type B
Daburn Electronics 2201/20GR-1000	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Green	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C			Copper Tinned	MIL-W-16878 Type B	304.8 m	1000 ft
Daburn Electronics 2201/20GY-100	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Gray	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C	100 ft	30.5 m	Copper Tinned	MIL-W-16878 Type B

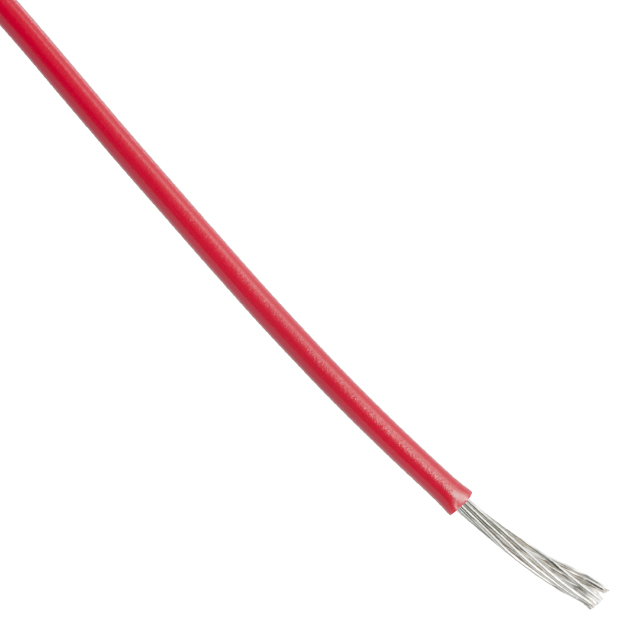

Daburn Electronics 2201/20RD-1000	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Red	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C			Copper Tinned	MIL-W-16878 Type B	304.8 m	1000 ft
Daburn Electronics 2201/20BR-1000	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Brown	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C			Copper Tinned	MIL-W-16878 Type B	304.8 m	1000 ft
Daburn Electronics 2201/20BU-1001	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Blue	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C			Copper Tinned	MIL-W-16878 Type B	304.8 m	1000 ft
Daburn Electronics 2201/20BR-100	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Brown	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C	100 ft	30.5 m	Copper Tinned	MIL-W-16878 Type B
Daburn Electronics 2201/20GY-1000	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Gray	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C			Copper Tinned	MIL-W-16878 Type B	304.8 m	1000 ft
Daburn Electronics 2201/20GR-100	0.25 mm	0.01 in	Abrasion Resistant	600 V	UL Style 1429	Green	20 AWG	1.5 mm	0.059 "	Hook-Up	19	32 AWG	Poly-Vinyl Chloride (XLPVC)	-55 C	105 ░C	100 ft	30.5 m	Copper Tinned	MIL-W-16878 Type B
