9425-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

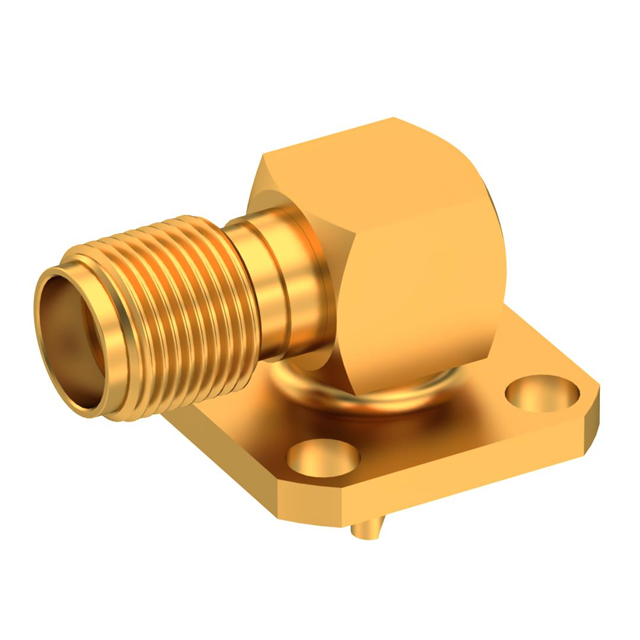

SMA / RIGHT ANGLE JACK RECEPTACL
| Part | Dielectric Material | Body Finish | Body Material | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Contact Termination | Features | Number of Ports | Connector Type | Mounting Feature | Shield Termination | Impedance | Fastening Type | Center Contact Material | Frequency - Max [Max] | Mounting Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | Gold | 500 | -65 ░C | 165 °C | SMA | Solder Cup | Extended Insulation | 1 | Female Socket Jack | Flange | Solder | 50 Ohms | Threaded | Beryllium Copper | 18 GHz | Panel Mount Right Angle | Gold |
