PTH12010Y Series

15 A 12-V Input Bus Termination Power Module for DDR/QDR Memory

Catalog

15 A 12-V Input Bus Termination Power Module for DDR/QDR Memory

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Applications	Features	Current - Output (Max) [Max]	Mounting Type	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case

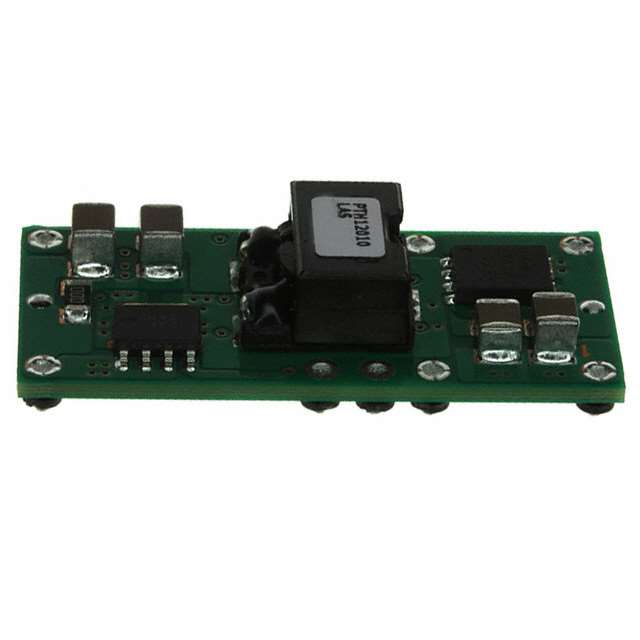

Texas Instruments PTH12010LAS	1.37 in	15.8 mm	9.6 mm	0.38 in	34.8 mm	0.62 "	89 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)	OCP Remote On/Off UVLO	12 A	Surface Mount	Non-Isolated PoL Module	1.8 V	0.8 V	10-SMD Module
Texas Instruments PTH12010WAZT	1.37 in	15.7 mm	9.7 mm	0.38 in	34.8 mm	0.62 "	94 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)	OCP Remote On/Off UVLO	12 A	Surface Mount	Non-Isolated PoL Module	5.5 V	1.2 V	10-SMD Module
Texas Instruments PTH12010YAZ	1.37 in	15.8 mm	9.6 mm	0.38 in	34.8 mm	0.62 "	85 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)	OCP Remote On/Off UVLO	12 A	Surface Mount	Non-Isolated PoL Module	1.8 V	0.55 V	10-SMD Module

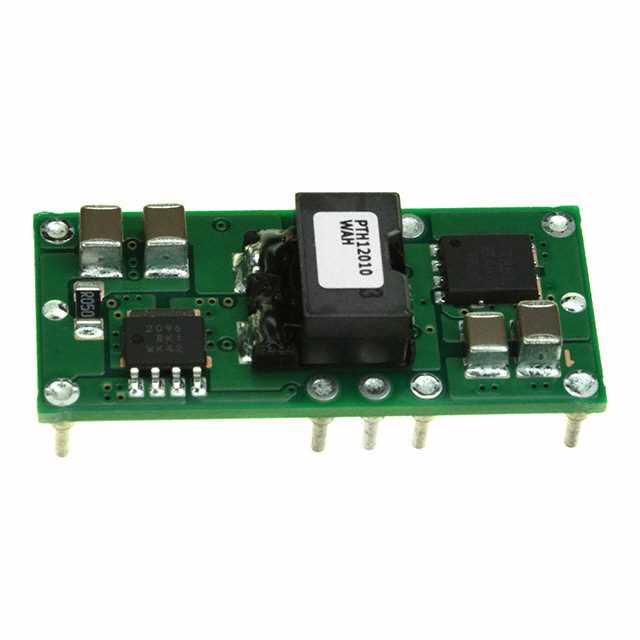

Texas Instruments PTH12010WAH	1.37 in	15.7 mm	9.1 mm	0.36 in	34.8 mm	0.62 "	94 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)		12 A	Through Hole	Non-Isolated PoL Module	5.5 V	1.2 V	10-DIP Module

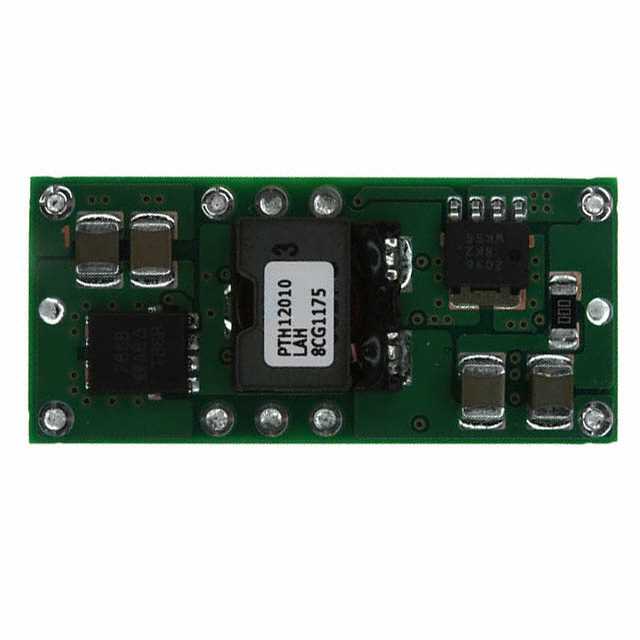

Texas Instruments PTH12010LAH	1.37 in	15.7 mm	9.1 mm	0.36 in	34.8 mm	0.62 "	89 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)		12 A	Through Hole	Non-Isolated PoL Module	1.8 V	0.8 V	10-DIP Module

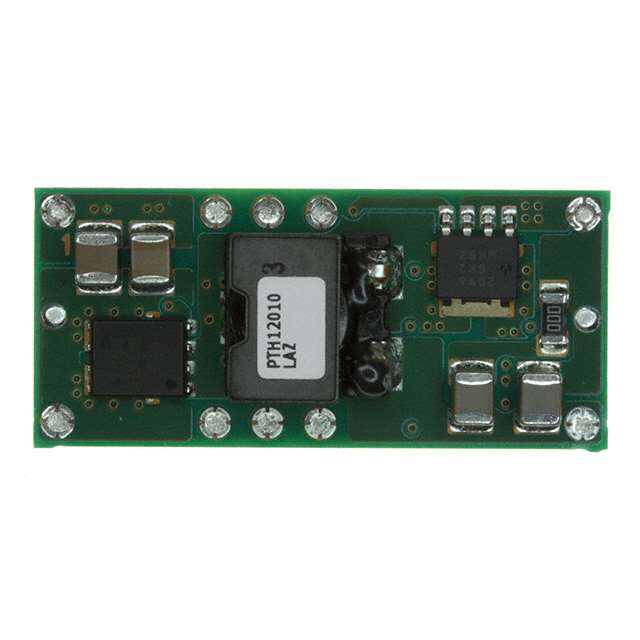

Texas Instruments PTH12010LAZ	1.37 in	15.8 mm	9.6 mm	0.38 in	34.8 mm	0.62 "	89 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)	OCP Remote On/Off UVLO	12 A	Surface Mount	Non-Isolated PoL Module	1.8 V	0.8 V	10-SMD Module
Texas Instruments PTH12010WAZ	1.37 in	15.8 mm	9.6 mm	0.38 in	34.8 mm	0.62 "	94 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)	OCP Remote On/Off UVLO	12 A	Surface Mount	Non-Isolated PoL Module	5.5 V	1.2 V	10-SMD Module

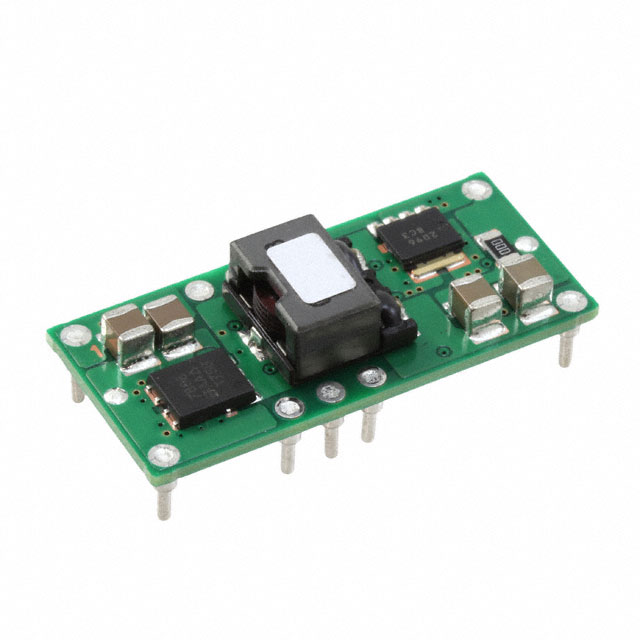

Texas Instruments PTH12010YAH	1.37 in	15.7 mm	8.9 mm	0.35 "	34.8 mm	0.62 "	85 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)		12 A	Through Hole	Non-Isolated PoL Module	1.8 V	0.55 V	10-DIP Module

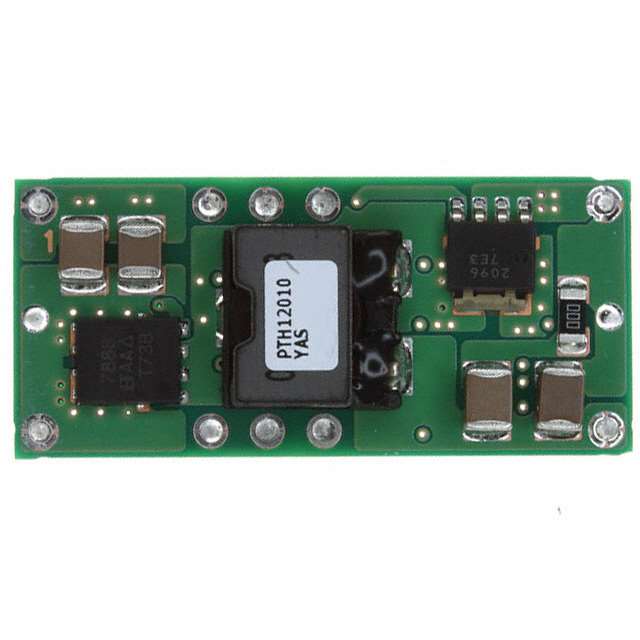

Texas Instruments PTH12010YAST	1.37 in	15.7 mm	9.7 mm	0.38 in	34.8 mm	0.62 "	88 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)	OCP Remote On/Off UVLO	12 A	Surface Mount	Non-Isolated PoL Module	1.8 V	0.55 V	10-SMD Module

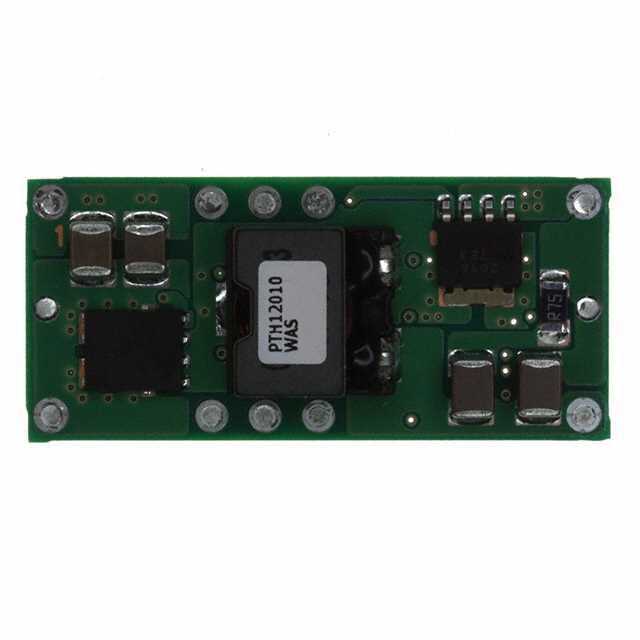

Texas Instruments PTH12010WAS	1.37 in	15.8 mm	9.6 mm	0.38 in	34.8 mm	0.62 "	94 %	10.8 V	13.2 V	85 °C	-40 °C	1	ITE (Commercial)	OCP Remote On/Off UVLO	12 A	Surface Mount	Non-Isolated PoL Module	5.5 V	1.2 V	10-SMD Module

Catalog

15 A 12-V Input Bus Termination Power Module for DDR/QDR Memory

Key Features

• Up to 12-A Output Current12-V Input VoltageWide-Output Voltage Adjust (1.2 V to 5.5 V)/(0.8 V to 1.8 V)Efficiencies up to 94%200 W/in3Power DensityOn/Off InhibitOutput Voltage SensePrebias StartupUndervoltage LockoutAuto-Track SequencingMargin Up/Down ControlsOutput Overcurrent Protection (Nonlatching, Auto-Reset)Operating Temperature: -40°C to 85°CSafety Agency Approvals: UL/IEC/CSA-22.2 60950-1Point of Load Alliance (POLA™) CompatibleAPPLICATIONSComplex Multivoltage, Multiprocessor SystemsAuto-Track, TMS320 are trademarks of Texas Instruments.Up to 12-A Output Current12-V Input VoltageWide-Output Voltage Adjust (1.2 V to 5.5 V)/(0.8 V to 1.8 V)Efficiencies up to 94%200 W/in3Power DensityOn/Off InhibitOutput Voltage SensePrebias StartupUndervoltage LockoutAuto-Track SequencingMargin Up/Down ControlsOutput Overcurrent Protection (Nonlatching, Auto-Reset)Operating Temperature: -40°C to 85°CSafety Agency Approvals: UL/IEC/CSA-22.2 60950-1Point of Load Alliance (POLA™) CompatibleAPPLICATIONSComplex Multivoltage, Multiprocessor SystemsAuto-Track, TMS320 are trademarks of Texas Instruments.

Description

The PTH12010 series of non-isolated power modules that are small in size but big on performance and flexibility. The high output current, compact footprint, and industry-leading features offers system designers a versatile module for powering complex multi-processor digital systems. The series employs double-sided surface mount construction and provides high-performance step-down power conversion for up to 12 A of output current. The output voltage of the W-suffix parts can be set to any value over the range, 1.2 V to 5.5 V. The L-suffix devices have an adjustment range of 0.8 V to 1.8 V. The output voltage is set using a single external resistor. This series includes Auto-Track™ sequencing. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an on/off inhibit, output voltage adjust (trim), margin up/down controls, and the ability to start up into an existing output voltage or prebias. For improved load regulation, an output voltage sense is also provided. A nonlatching overcurrent trip serves as load fault protection. Target applications include complex multivoltage, multiprocessor systems that incorporate the industry’s high-speed TMS320™ DSP family, microprocessors, and bus drivers. The PTH12010 series of non-isolated power modules that are small in size but big on performance and flexibility. The high output current, compact footprint, and industry-leading features offers system designers a versatile module for powering complex multi-processor digital systems. The series employs double-sided surface mount construction and provides high-performance step-down power conversion for up to 12 A of output current. The output voltage of the W-suffix parts can be set to any value over the range, 1.2 V to 5.5 V. The L-suffix devices have an adjustment range of 0.8 V to 1.8 V. The output voltage is set using a single external resistor. This series includes Auto-Track™ sequencing. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an on/off inhibit, output voltage adjust (trim), margin up/down controls, and the ability to start up into an existing output voltage or prebias. For improved load regulation, an output voltage sense is also provided. A nonlatching overcurrent trip serves as load fault protection. Target applications include complex multivoltage, multiprocessor systems that incorporate the industry’s high-speed TMS320™ DSP family, microprocessors, and bus drivers.
