GB25AV Series
Manufacturer: NKK Switches
Beta
⌘K

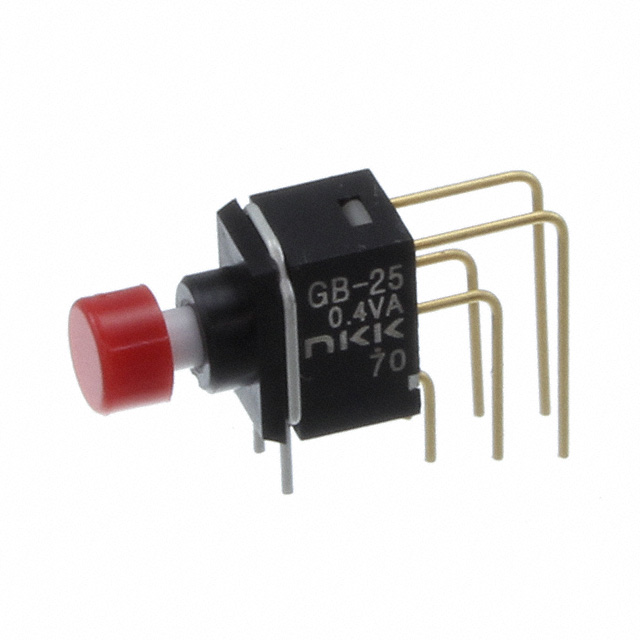

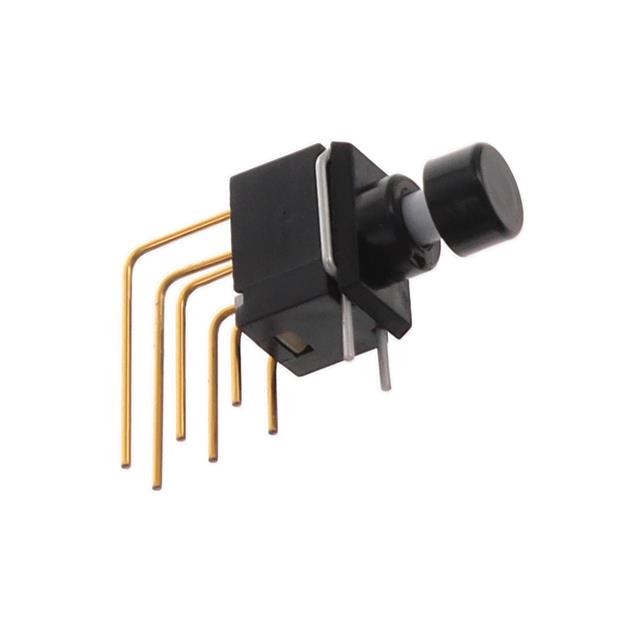

PROCESS SEALED ULTRA-MINIATURE PUSHBUTTON
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Color - Actuator/Cap | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Circuit | Termination Style | Voltage Rating - AC | Current Rating (Amps) | Type | Switch Function | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | Black | Right Angle Through Hole Vertical | 85 °C | -30 ░C | Button Round | DPDT | PC Pin | 28 V | 0.4 VA | Standard | On-Mom | No Marking |
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | Red | Right Angle Through Hole Vertical | 85 °C | -30 ░C | Button Round | DPDT | PC Pin | 28 V | 0.4 VA | Standard | On-Mom | No Marking |
