65474 Series

Catalog

MINI JUMP 2POS .100"

Part	Current Rating (Amps)	Height [z]	Height [z]	Material Flammability Rating	Color	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Gender	Contact Finish Thickness
Amphenol ICC (FCI) 65474-006LF	2.5 A	9.78 mm	0.385 in	UL94 V-0	Black	2.54 mm	0.1 in	Gold or Gold GXT™	1.02 Ám	40 Áin	Polyester Thermoplastic	Closed Top	1 x 2	2	Female Sockets
Amphenol ICC (FCI) 65474-002	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Tin			Polyester	Closed Top	1 x 2	2	Female Sockets

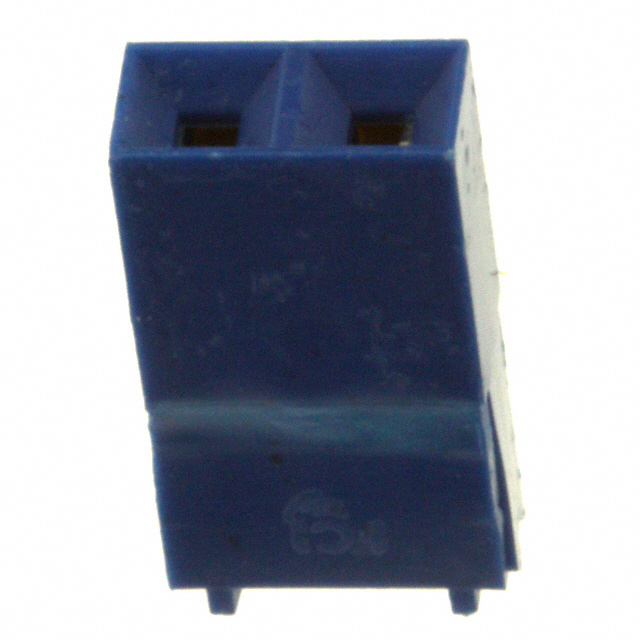

Amphenol ICC (FCI) 65474-001LF	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Gold or Gold GXT™	1.02 Ám	40 Áin	Polyester	Closed Top	1 x 2	2	Female Sockets

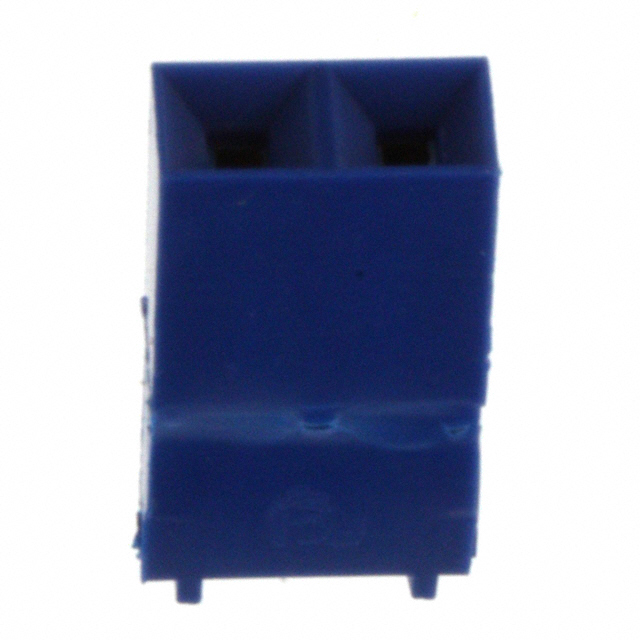

Amphenol ICC (FCI) 65474-004LF	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Gold			Polyester	Closed Top	1 x 2	2	Female Sockets	Flash

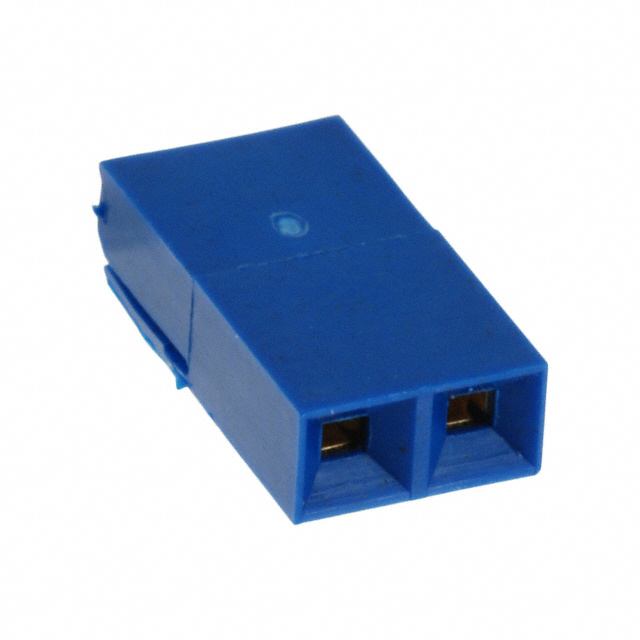

Amphenol ICC (FCI) 65474-010	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Gold or Gold GXT™	0.76 Ám	30 Áin	Polyester	Closed Top	1 x 2	2	Female Sockets
Amphenol ICC (FCI) 65474-010LF	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Gold or Gold GXT™	0.76 Ám	30 Áin	Polyester	Closed Top	1 x 2	2	Female Sockets
Amphenol ICC (FCI) 65474-007LF	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Gold			Polyester	Closed Top	1 x 2	2	Female Sockets	Flash
Amphenol ICC (FCI) 65474-007	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Gold			Polyester	Closed Top	1 x 2	2	Female Sockets	Flash
Amphenol ICC (FCI) 65474-004	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Gold			Polyester	Closed Top	1 x 2	2	Female Sockets	Flash
Amphenol ICC (FCI) 65474-002LF	3 A	9.78 mm	0.385 in	UL94 V-0	Blue	2.54 mm	0.1 in	Tin			Polyester	Closed Top	1 x 2	2	Female Sockets
