181949 Series

Catalog

CONN QC TAB 0.250

Part	Terminal Type	Insulation	Tab Thickness	Tab Thickness	Termination	Mounting Type	Tab Width	Tab Width	Contact Material	Gender	Tab Length	Tab Length	Contact Finish

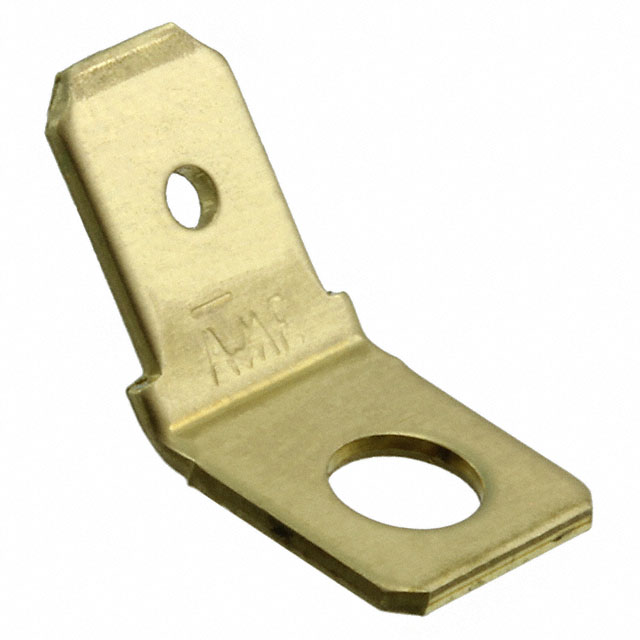

TE Connectivity Raychem Cable Protection 181949-1	Angled - 45°	Non-Insulated	0.032 in	0.81 mm	Rivet Screw Stud	Board Chassis	6.35 mm	0.25 in	Brass	Male	7.8 mm	0.307 in

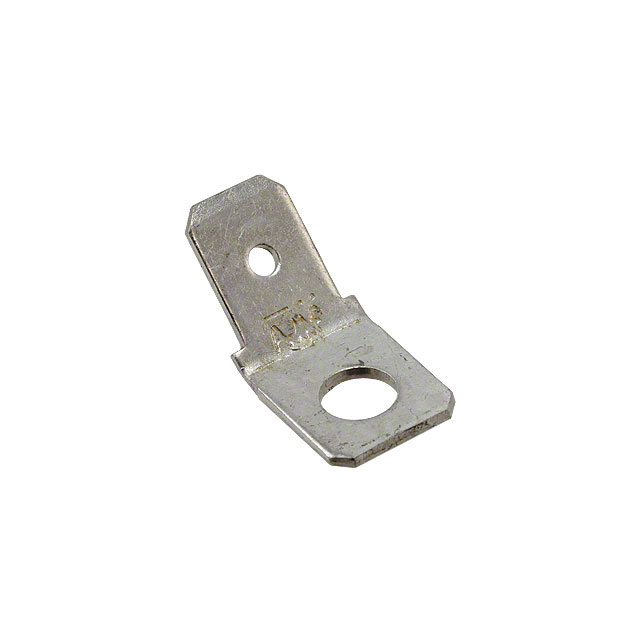

TE Connectivity Raychem Cable Protection 181949-2	Angled - 45°	Non-Insulated	0.032 in	0.81 mm	Rivet Screw Stud	Board Chassis	6.35 mm	0.25 in	Brass	Male	7.8 mm	0.307 in	Tin
