SML-LX5050 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED GREEN CLEAR 6PLCC SMD

Part	Lens Color	Lens Transparency	Height (Max) [Max] [z]	Lens Style	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Color	Configuration	Viewing Angle	Package / Case	Supplier Device Package	Wavelength - Peak	Current - Test	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Size

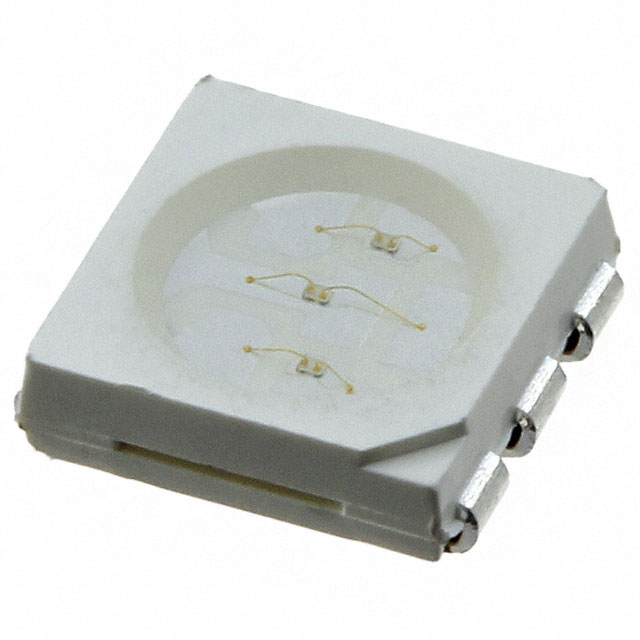

Lumex Opto/Components Inc. SML-LX5050UPGC-TR	Colorless	Clear	1.8 mm	Round with Flat Top	Surface Mount	5 mm	5 mm	Green	Standard	120 °	6-SMD J-Lead	6-PLCC	525 nm	20 mA	4.4 mm	3.4 V	800 mcd
Lumex Opto/Components Inc. SML-LX5050SUGC-TR	Colorless	Clear	1.8 mm	Round with Flat Top	Surface Mount	5 mm	5 mm	Green	Standard	120 °	6-SMD J-Lead	6-PLCC		20 mA	4.4 mm	2 V	80 mcd
Lumex Opto/Components Inc. SML-LX5050SYC-TR	Colorless	Clear	1.8 mm	Round with Flat Top	Surface Mount	5 mm	5 mm	Yellow	Standard	120 °	6-SMD J-Lead	6-PLCC	590 nm	50 mA	4.4 mm	2.5 V	1350 mcd
Lumex Opto/Components Inc. SML-LX5050SOC-TR	Colorless	Clear	1.8 mm	Round with Flat Top	Surface Mount	5 mm	5 mm		Standard	120 °	6-SMD J-Lead	6-PLCC		50 mA	4.4 mm	2.3 V	1650 mcd
Lumex Opto/Components Inc. SML-LX5050USBC-TR	Colorless	Clear	1.8 mm	Round with Flat Top	Surface Mount	5 mm	5 mm	Blue	Standard	120 °	6-SMD J-Lead	6-PLCC	470 nm	20 mA	4.4 mm	3.3 V	190 mcd
Lumex Opto/Components Inc. SML-LX5050SIC-TR	Colorless	Clear	1.8 mm	Round with Flat Top	Surface Mount	5 mm	5 mm	Red	Standard	120 °	6-SMD J-Lead	6-PLCC	636 nm	20 mA	4.4 mm	2 V	85 mcd

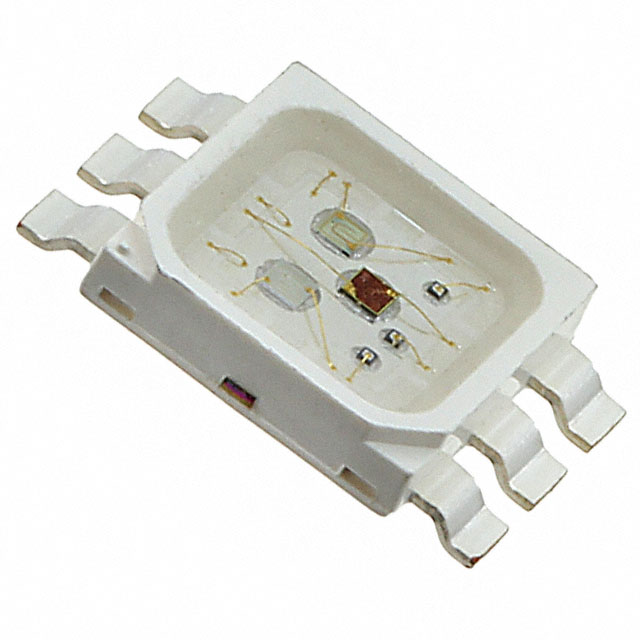

Lumex Opto/Components Inc. SML-LX5050SIUPGUBC	Colorless	Clear	1.3 mm	Square with Flat Top	Surface Mount	5 mm	5 mm	Blue Green Red	Common Anode	120 °	6-SMD Gull Wing	6-PLCC	470 nm 525 nm 636 nm			2.5 V 3.5 V 3.5 V		3200 mcd	1500 mcd	6300 mcd	150 mA	150 mA	150 mA	4.25 mm
